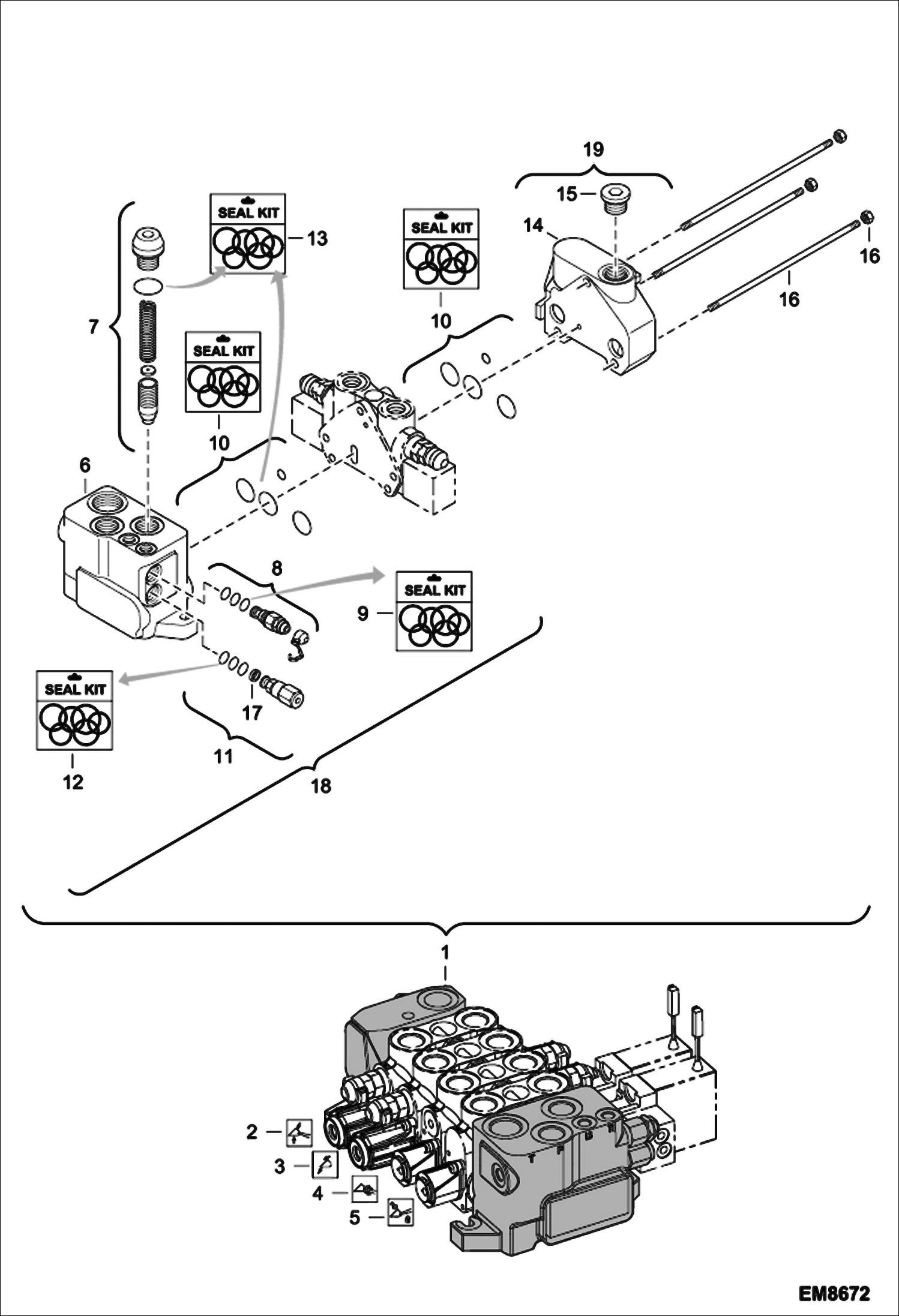

Запчасти Bobcat T2556 HYDRAULIC CONTROL VALVE (Assembly) (Vendor partnumber 08 403 194) (S/N A8FR11001 - 12095, A8G311001 - 12060) HYDRAULIC SYSTEM

1

6927619

MAIN VALVE See Illustration HEATING/VENTILATION/ EM8737 Vendor partnumber 08 403 194 - W/Ref. 2-19 Was 6924089 - A

2

7012486

ELEMENT, LIFTING See Illustration HYDRAULIC CONTROL VALVE/ EM1644 Was 6910749 - A

3

7012487

ELEMENT, TILTING See Illustration HYDRAULIC CONTROL VALVE/ EM1645 Was 6910748 - A

4

SECTION, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM1646 NAP - Vendor partnumber 08 404 391 Was 7012606 - A

4

7012488

ELEMENT, TELESCOPE See Illustration HYDRAULIC CONTROL VALVE/ EM8673 Vendor partnumber 08 405 026

5

SECTION, AUXILIARY HYDRAULICS See Illustration HYDRAULIC CONTROL VALVE/ EM1647 NAP - Vendor partnumber 08 404 390 Was 7012607 - A

5

7012489

ELEMENT, EQUIPMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8674 Vendor partnumber 08 405 025

6

7012481

INLET ELEMENT Was 6910742 - A

7

6910704

REGULATION KIT load sense relief valve

8

97300.8

Pressure relief valve 265 bar - W/Ref. 9

9

6685257

SEAL KIT Was 6910708 - A

10

97295.0

Set of seals

11

6910705

FLOW REGULATOR W/Ref. 12 & 17

12

6910708

SEAL KIT

13

6910710

SEAL KIT

14

6910706

OUTLET ELEMENT

15

6910709

PLUG

16

6910707

TIE ROD KIT

17

6687064

FILTER Was 97297.6 - A

18

6910742

INLET ELEMENT W/Ref. 6-13 & 17

19

7012482

OUTLET ELEMENT W/Ref. 14-15
