Запчасти Bobcat T2556 HYDRAULIC CONTROL VALVE (Auxiliary Hydraulics Section) (Vendor partnumber 08 404 390) HYDRAULIC SYSTEM

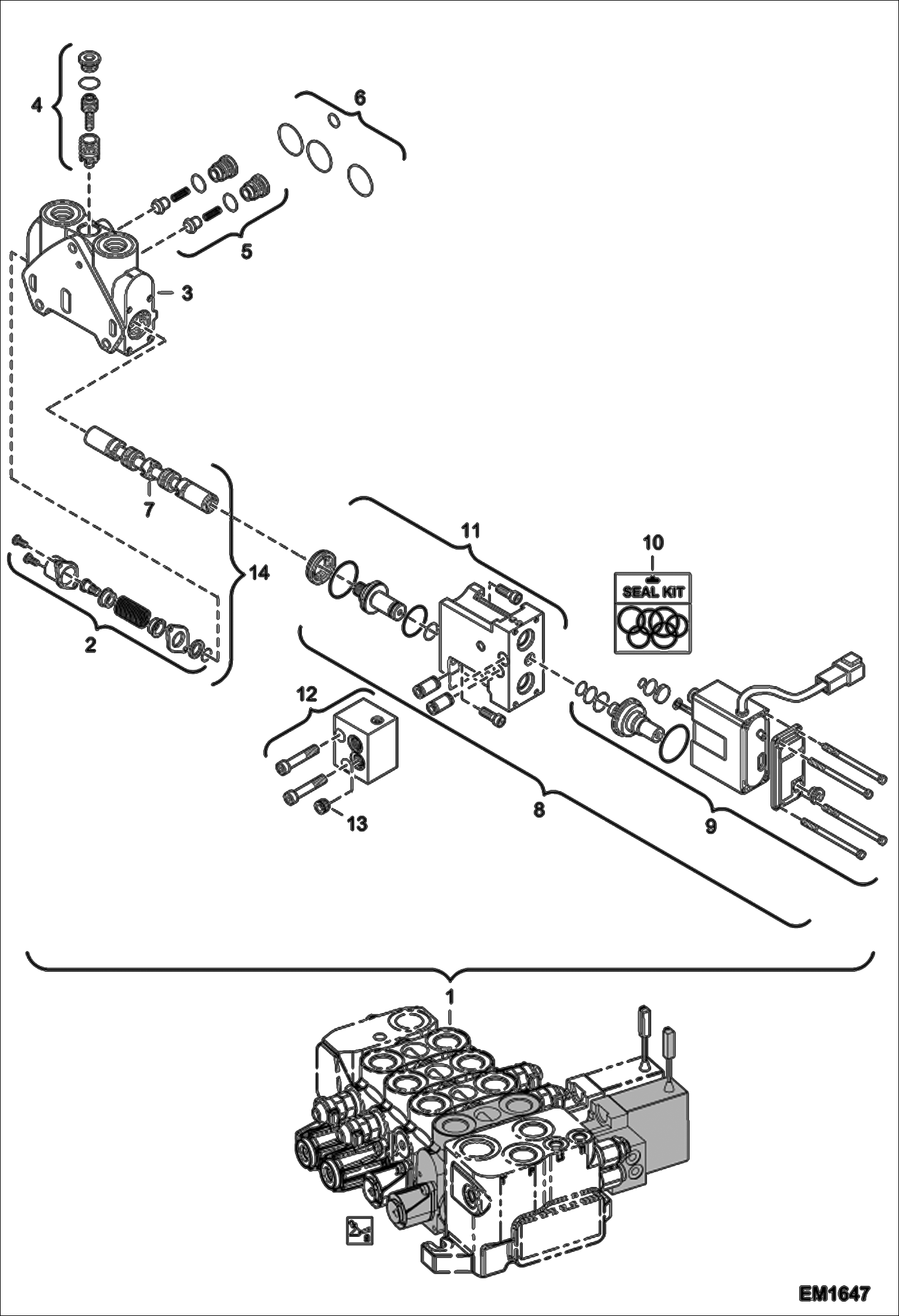

Схема запчастей Bobcat T2556 - HYDRAULIC CONTROL VALVE (Auxiliary Hydraulics Section) (Vendor partnumber 08 404 390) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

SECTION, AUXILIARY HYDRAULICS NAP - Vendor partnumber 08 404 390 - W/Ref. 2-12 Was 7012607 - A

2

6910714

SPOOL RETURN

3

VALVE NAP - Order Ref. 1

4

97302.4

Pressure compensator kit

5

97303.2

No return valve kit

6

97295.0

Set of seals

7

SPOOL, VALVE NAP - Order Ref. 14

8

7012484

ELECTRAUHYDRO, ACTUATION W/Ref. 9-11 - Also order Ref. 14 (# 7012605; Kit, Spool) Was 6910718 - C

9

6910715

VALVE, TELESCOPIC

10

6910717

SEAL KIT

11

BLOCK, SERVO NAP - Order Ref. 8

12

7012485

FITTING KIT W/Ref. 13

13

6910719

FILTER

14

7012605

SPOOL KIT W/Ref. 7 & 2 - Also order Ref. 8 (# 7012484; Servo Electrohydraulic)

Выбрано товаров: 14
