Запчасти Bobcat T2556 HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

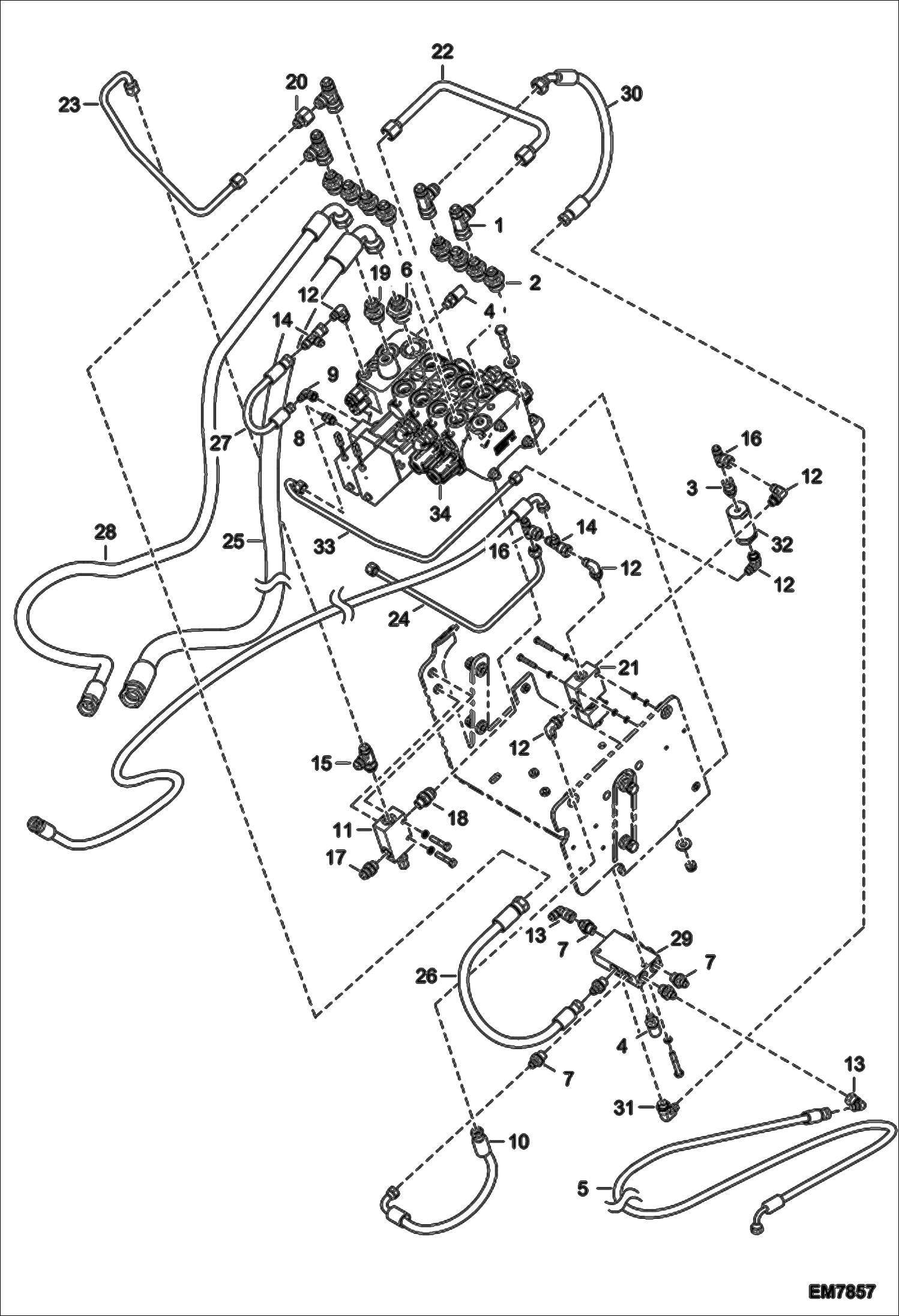

Схема запчастей Bobcat T2556 - HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

008372-28F

UNION

2

014375-02C

UNION 7/8 JIC 3/4 BSPP

3

022375-30X

UNION

4

54367.8

PORT, PRESSURE TEST

5

67198.2

Hose

6

68609.7

Union

7

77013.1

Adapter

8

82181.9

Union

9

85955.3

Elbow

10

97662.1

Hose

11

7168745

VALVE, SELF LEVELLING Was 98235.5 - C

12

100370-18C

ELBOW PIECE

13

100370-29P

ELBOW PIECE

14

100372-06G

UNION

15

100372-22Z

UNION

16

100372-23A

UNION

17

100375-38S

UNION

18

100375-39T

UNION 7/8 JIC 3/8 BSP

19

100375-40U

UNION

20

100375-43X

REDUCER

21

6910208

VALVE 3/2 CE12V

22

6910426

PIPE

23

6910427

PIPE

24

6910429

PIPE

25

6911776

FLEXIBLE HOSE

26

6913559

HOSE

27

6913561

HOSE

28

6911181

HOSE

29

6917692

HYDRAULIC BLOK

30

6918017

HOSE

31

6918652

ELBOW UNION

32

6919913

OIL FILTER

33

6919926

PIPE

34

CONTROL VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM1643

Выбрано товаров: 34
