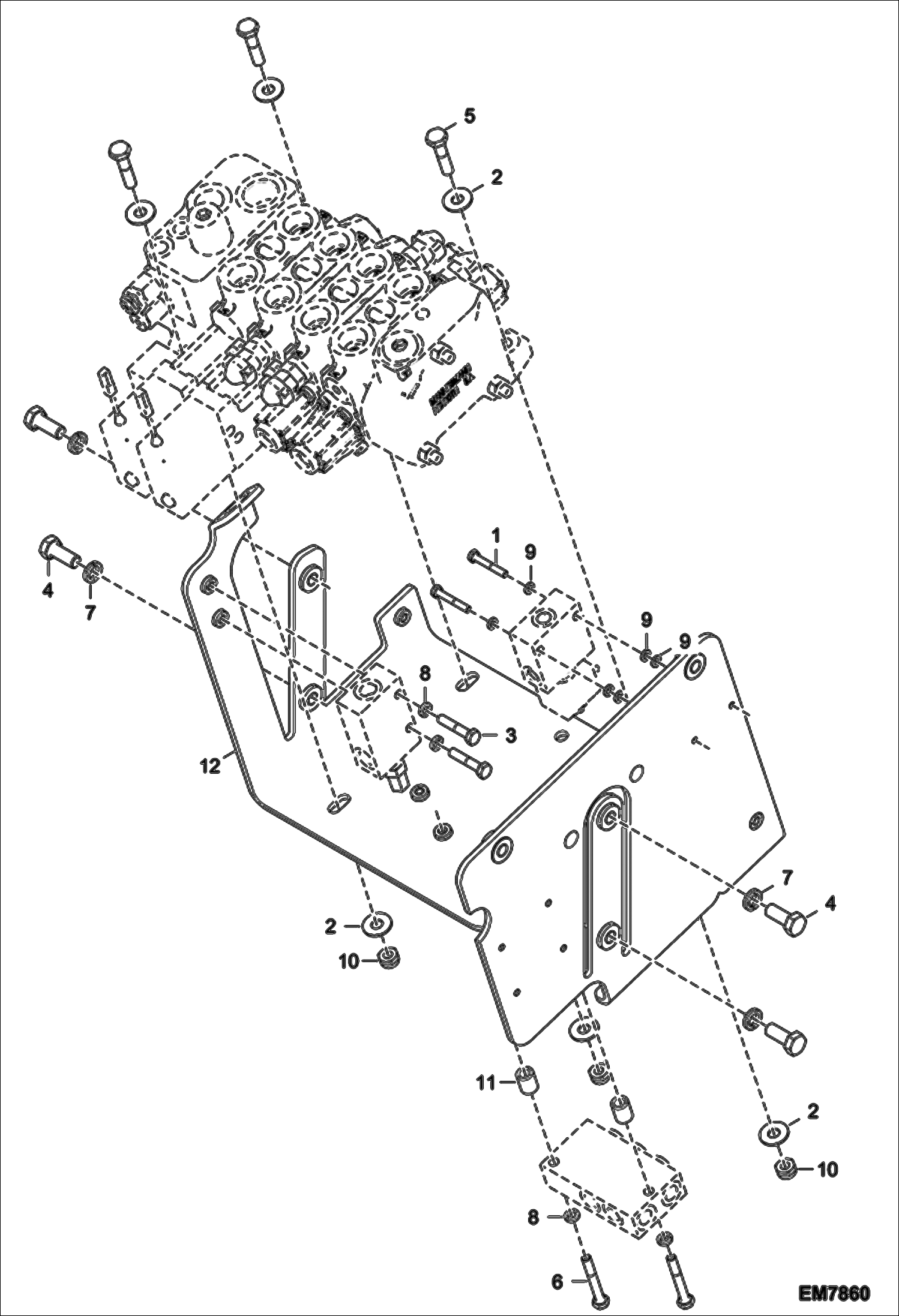

Запчасти Bobcat T2556 HYDRAULIC CONTROL VALVE FIXATION HYDRAULIC SYSTEM

1

000326-25M

SCREW

2

000350-21R

WASHER

3

1CM840

BOLT Was 01599.0 - A

4

01612.1

Screw

5

1CM1045

BOLT Was 10944.7 - A

6

10947.0

Screw

7

11689.7

Washer

8

89519.3

Washer

9

94574.1

Washer

10

100345-09A

NUT

11

6910771

WASHER

12

6911180

SUPPORT

12

6933407

BRACKET
