BOOM DECOMPRESSION CIRCUIT (S/N A8FR15000 & Above, A8G315000 & Above)

Запчасти Bobcat T2556 BOOM DECOMPRESSION CIRCUIT (S/N A8FR15000 & Above, A8G315000 & Above) HYDRAULIC SYSTEM

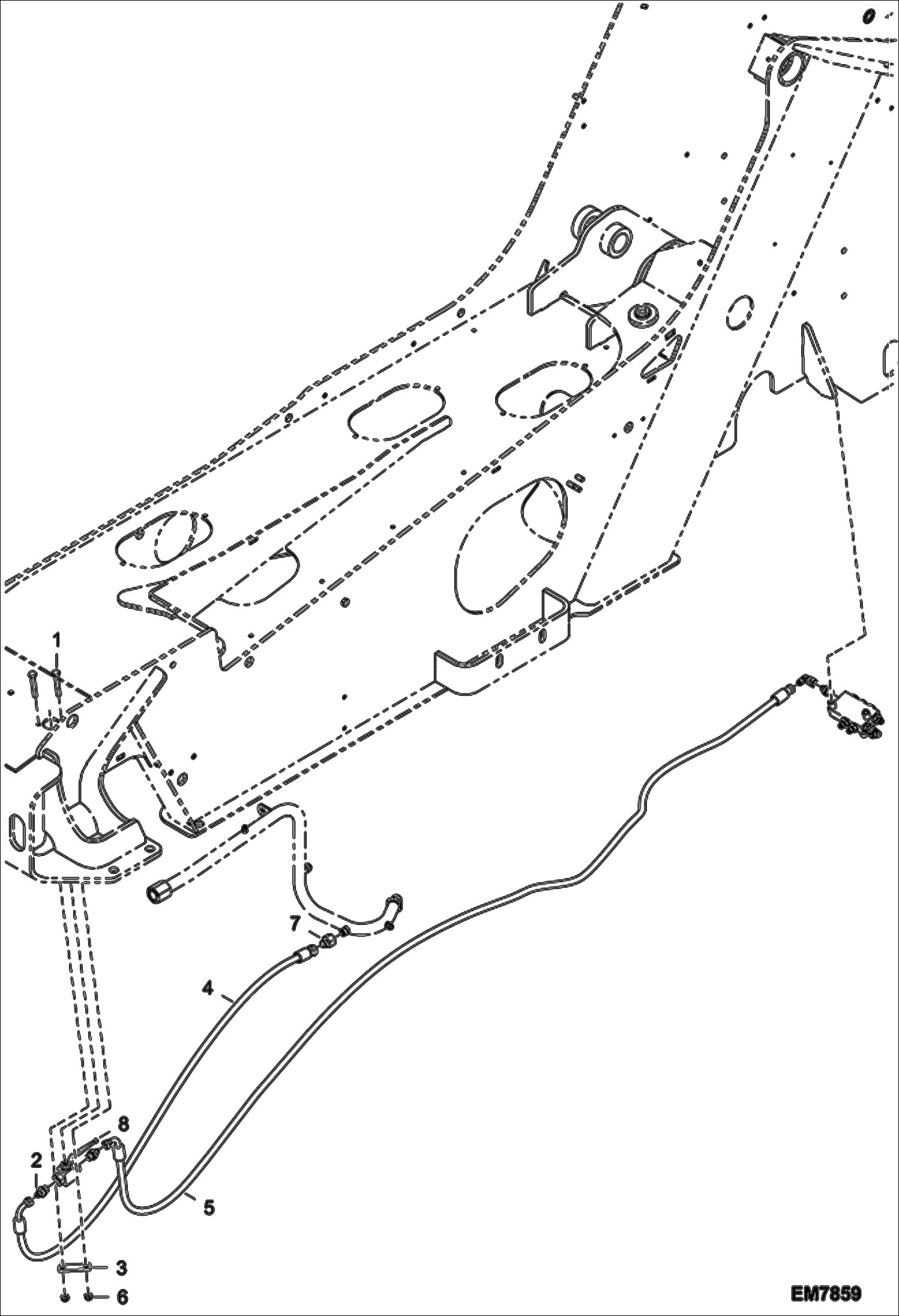

Схема запчастей Bobcat T2556 - BOOM DECOMPRESSION CIRCUIT (S/N A8FR15000 & Above, A8G315000 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

01522.2

Screw

2

77013.1

Adapter

3

77014.9

Plate

4

96807.3

Hose

5

96808.1

Hose

6

100345-09A

NUT

7

100375-43X

REDUCER

8

100378-03F

SHUTOFF auxiliary pressure release
