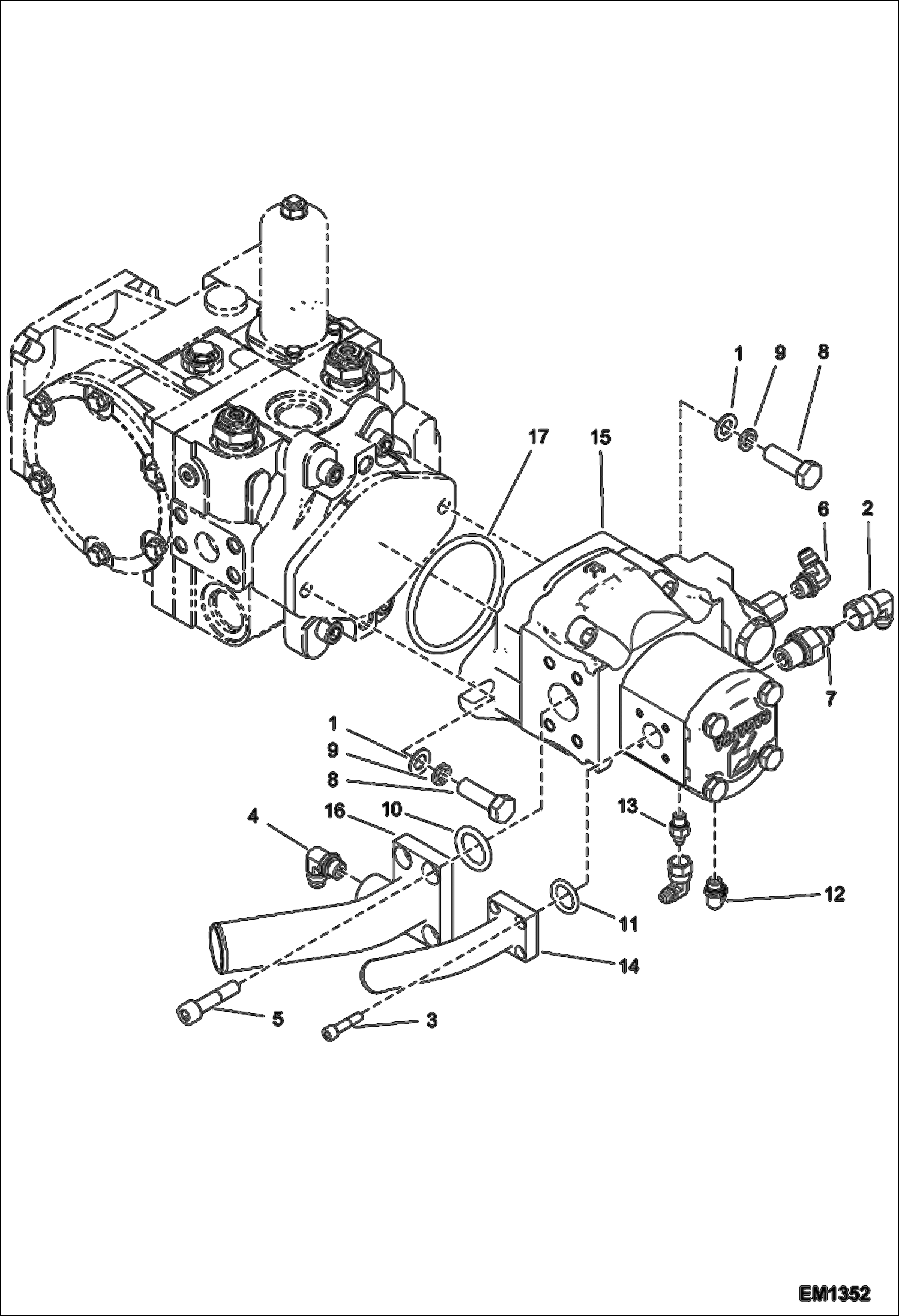

Запчасти Bobcat T2556 HYDRAULIC PUMP INSTALLATION HYDRAULIC SYSTEM

1

000350-04X

WASHER M12 14X27 E=2,5

2

008372-01B

ELBOW PIECE

3

10167.5

Screw

4

010370-94B

ELBOW PIECE

5

10662.5

Screw

6

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

7

022375-04U

UNION

8

26160.2

Screw

9

89517.7

Washer

10

92637.8

O-ring

11

93049.5

O-ring

12

100370-31R

ELBOW PIECE

13

100375-38S

UNION

14

6908091

FLANGE D20 T25

15

6909807

PUMP See Illustration HYDRAULIC PUMP ASSY/ EM1355

16

6911767

FLANGE SAE 1''

17

6925706

SEAL
