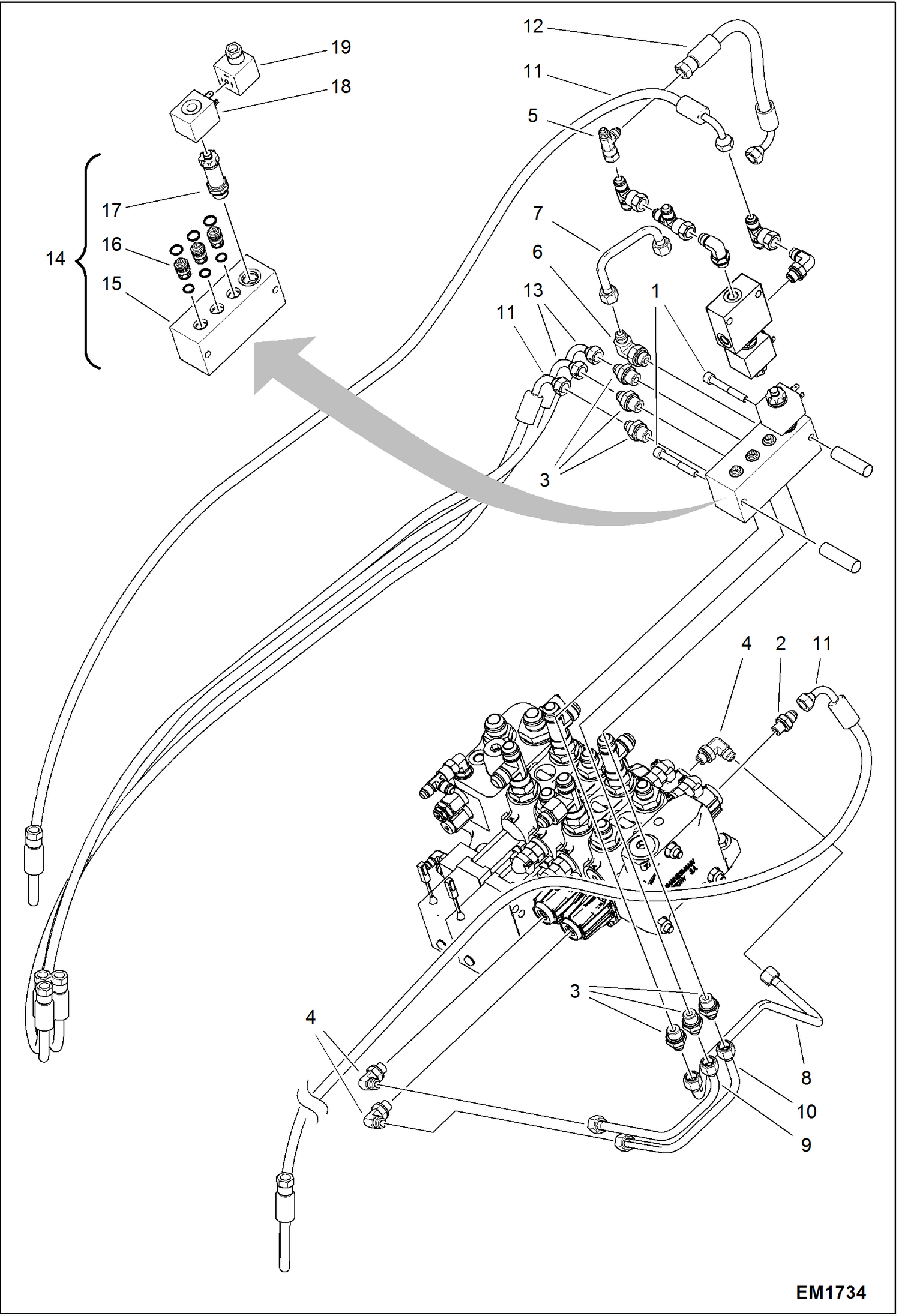

Запчасти Bobcat T2556 AMA - INSTALLATION (S/N A8FR11001 - 14999, A8G311001 - 14999) HYDRAULIC SYSTEM

1

15798.2

Screw

2

022375-31Z

UNION

3

77013.1

Adapter

4

100370-18C

ELBOW PIECE

5

100372-06G

UNION

6

6918652

ELBOW UNION Was 77075.0 - A

7

6911149

Hydraulic pipe

8

6911152

Hydraulic pipe

9

6911153

Hydraulic pipe

10

6911154

Hydraulic pipe

11

6912493

Hose

12

6913657

Hose

13

6917191

HOSE

14

6910206

AMA valve W/Ref. 15-17

15

COLLECTOR NLA - Order Ref. 14

16

6912533

VALVE

17

6912534

VALVE

18

6912528

COIL Was 6912573 - B

19

90924.2

Connection
