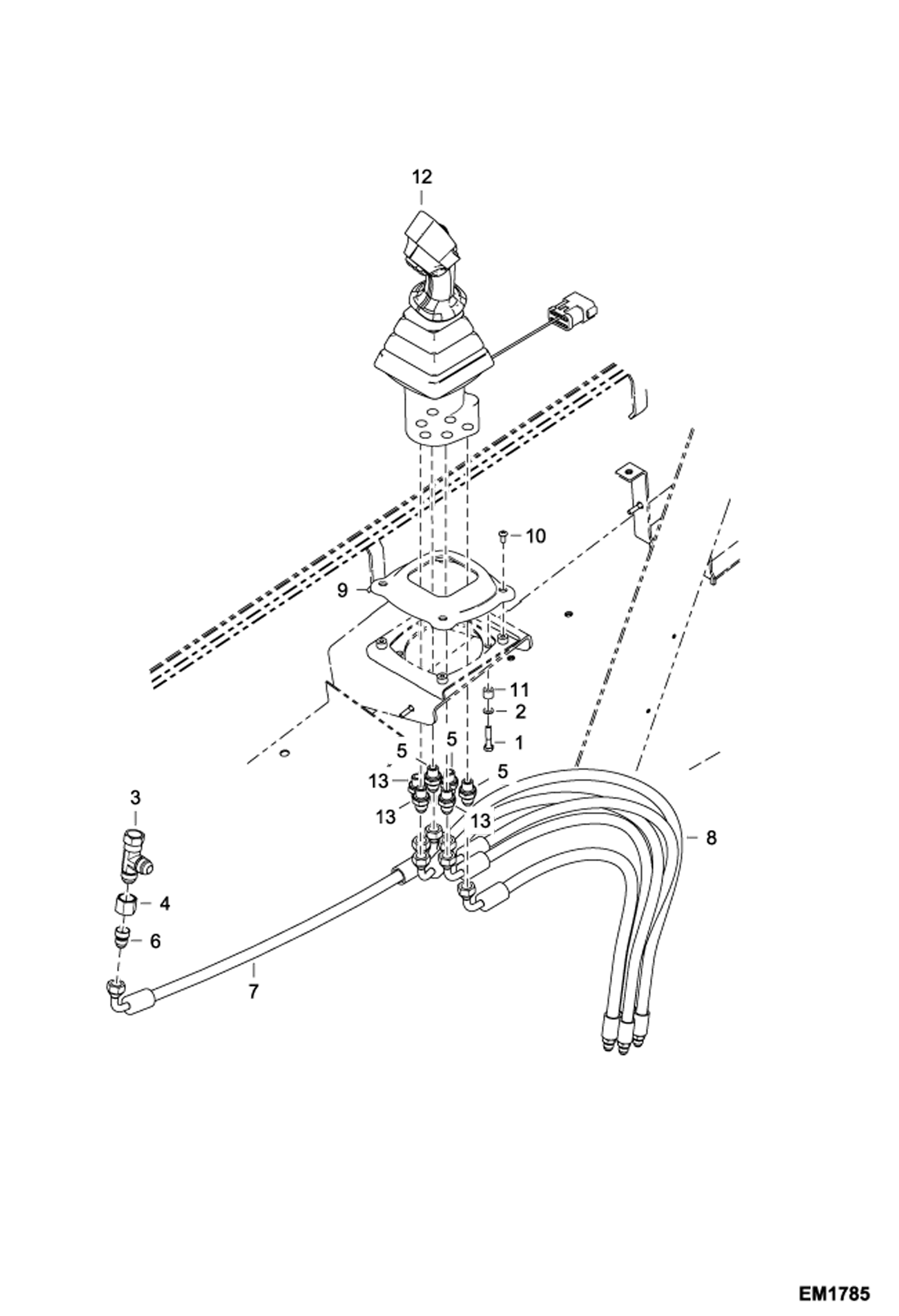

Запчасти Bobcat T2556 JOYSTICK INSTALLATION HYDRAULIC SYSTEM

1

01593.3

Screw

2

01696.4

Washer

3

008372-02C

UNION

4

014345-12C

NUT , ADAPTER

5

022375-31Z

UNION

6

100375-06H

ADAPTER

7

6908594

HOSE

8

6908672

HOSE

9

6909205

COVER , DUST

10

6910697

SCREW

10

6927921

SCREW

11

6910953

SPACER,JOYSTICK

12

6915268

MANIPULATOR See Illustration JOYSTICK/ EM1771 Was 6910314 - A

13

6921610

UNION
