Запчасти Bobcat T2556 CAB HYDRAULIC INSTALLATION (W/O Accumulator) HYDRAULIC SYSTEM

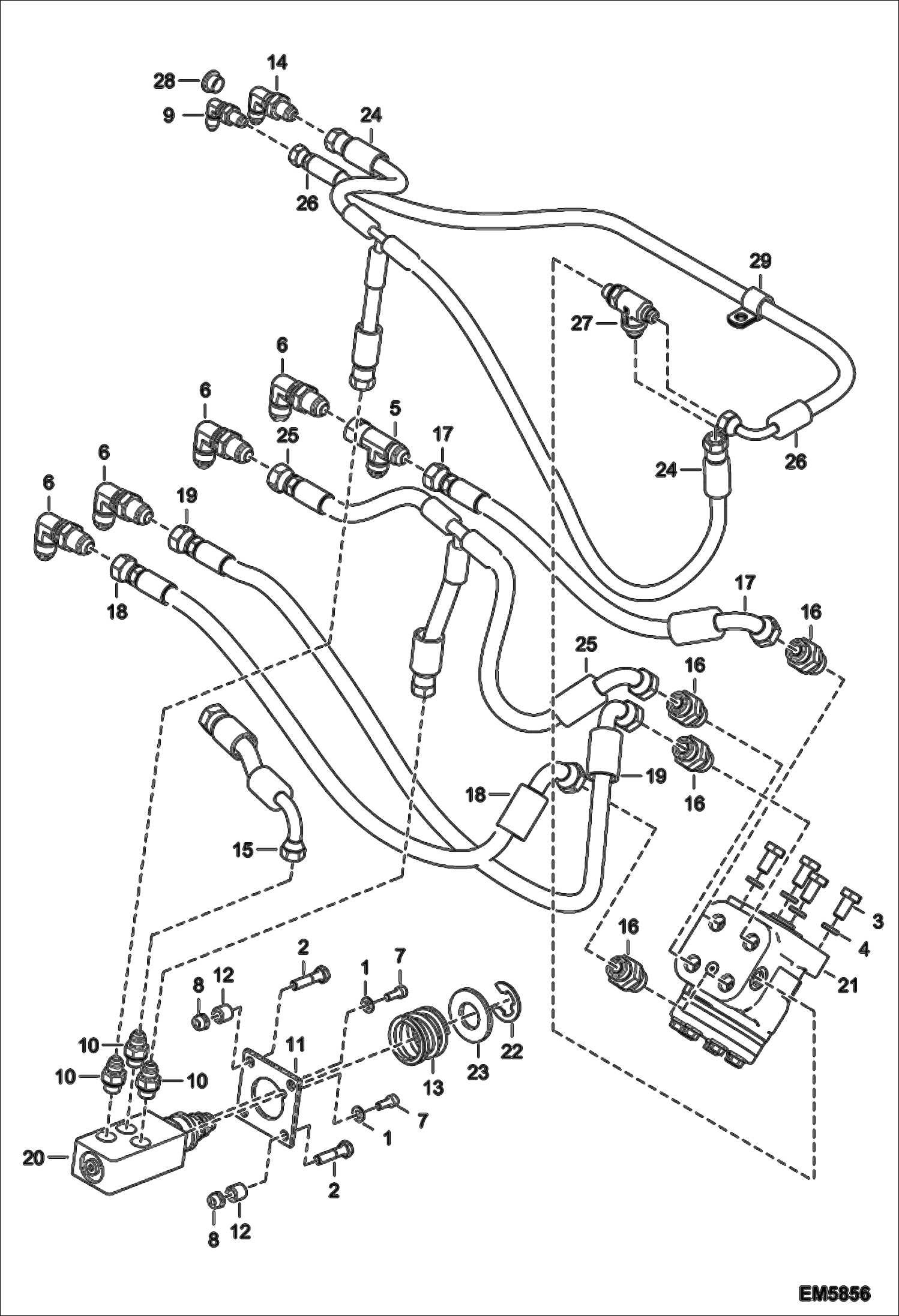

Схема запчастей Bobcat T2556 - CAB HYDRAULIC INSTALLATION (W/O Accumulator) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

000350-01U

WASHER

2

01578.4

Screw

3

01604.8

Screw

4

01720.2

Washer

5

008372-02C

UNION

6

010370-87T

ELBOW PIECE

7

15354.4

Screw

8

01681.6

Nut Was 51851.4 - B

9

67196.6

Elbow

10

90289.0

Union

11

96054.2

Spacer

12

96061.7

Spacer

13

96656.4

Spring

14

100370-40B

ELBOW PIECE

15

6908595

HOSE

16

6909839

FITTING 13/16 ORFS 1/2 BSPP

17

6915574

HOSE

18

6915575

HOSE

19

6915576

HOSE

20

6916227

REDUCER

21

6916333

STEERING BOX

22

6916595

RING

23

6917139

WASHER

24

6923958

HOSE

25

6923959

T-UNION

26

6923972

HOSE

27

6924039

TEE CHECK VALVE ASSEMBLY

28

6924503

PLUG

29

30H34

CLAMP

Выбрано товаров: 29
