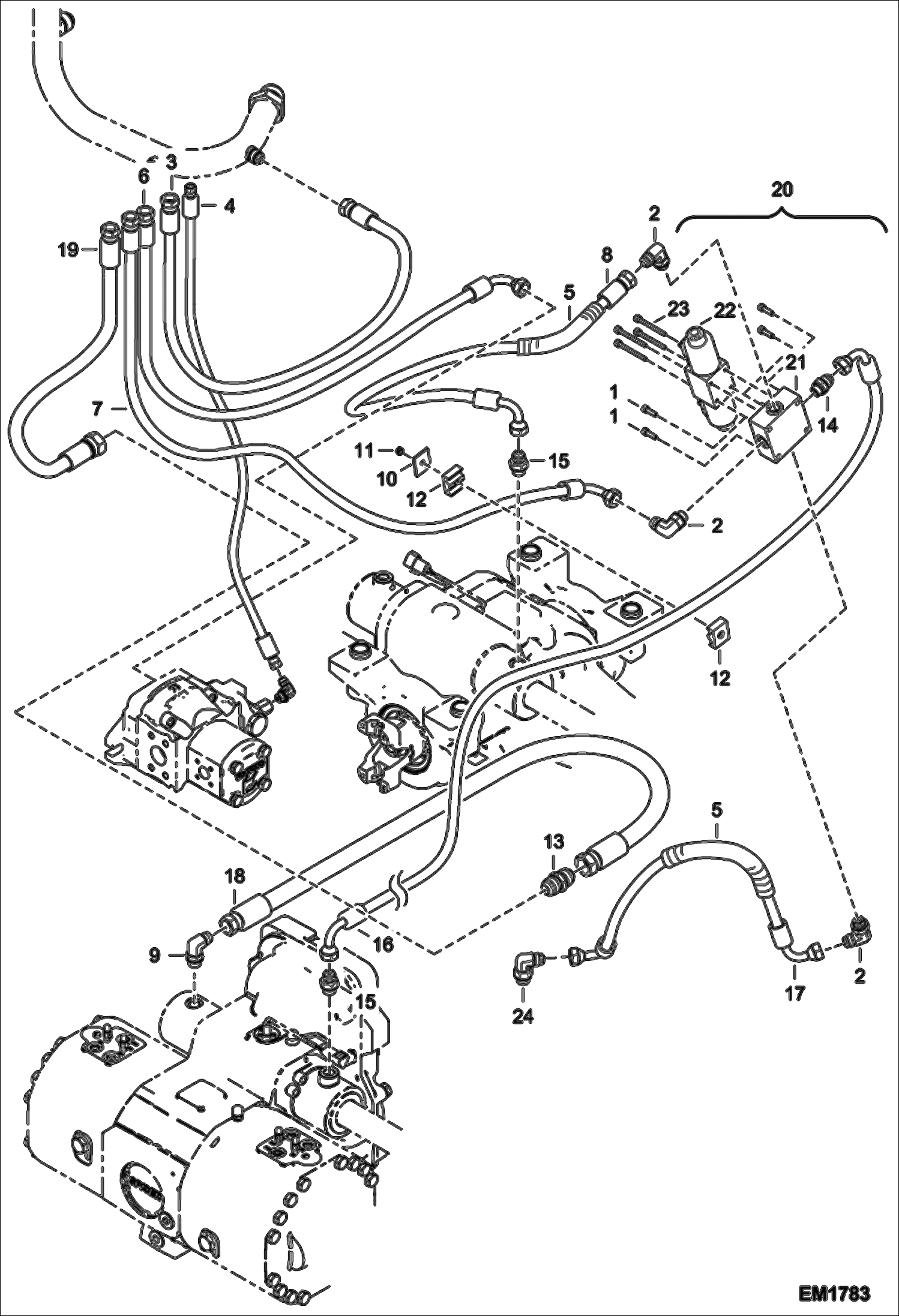

Запчасти Bobcat T2556 STEERING HOSES & FITTINGS (W/O Damper) HYDRAULIC SYSTEM

1

10167.5

Screw

2

010370-94B

ELBOW PIECE

3

79147.5

Hose

4

79148.3

Hose

5

82090.2

Insulation

6

94992.5

Hose

7

96775.2

Hose

8

96776.0

Hose

9

6917976

ELBOW UNION

10

100212-53R

COVER PLATE

11

100345-06W

NUT

12

100369-18T

COLLAR

13

100375-37R

UNION

14

100375-38S

UNION

15

100375-56M

UNION

16

6915278

HOSE-FLEXIBLE

17

6916885

HOSE Was 96792.7

18

6917974

HOSE

19

6917975

HOSE

20

98347.8

Steering block W/Ref. 21-23

21

98348.6

Support

22

98349.4

Steering selector valve

23

79160.8

Screw

24

7228465

FITTING, HYD ELBOW Was 100370-06P - A
