Запчасти Bobcat T2556 STEERING - REAR AXLE DRIVE SYSTEM

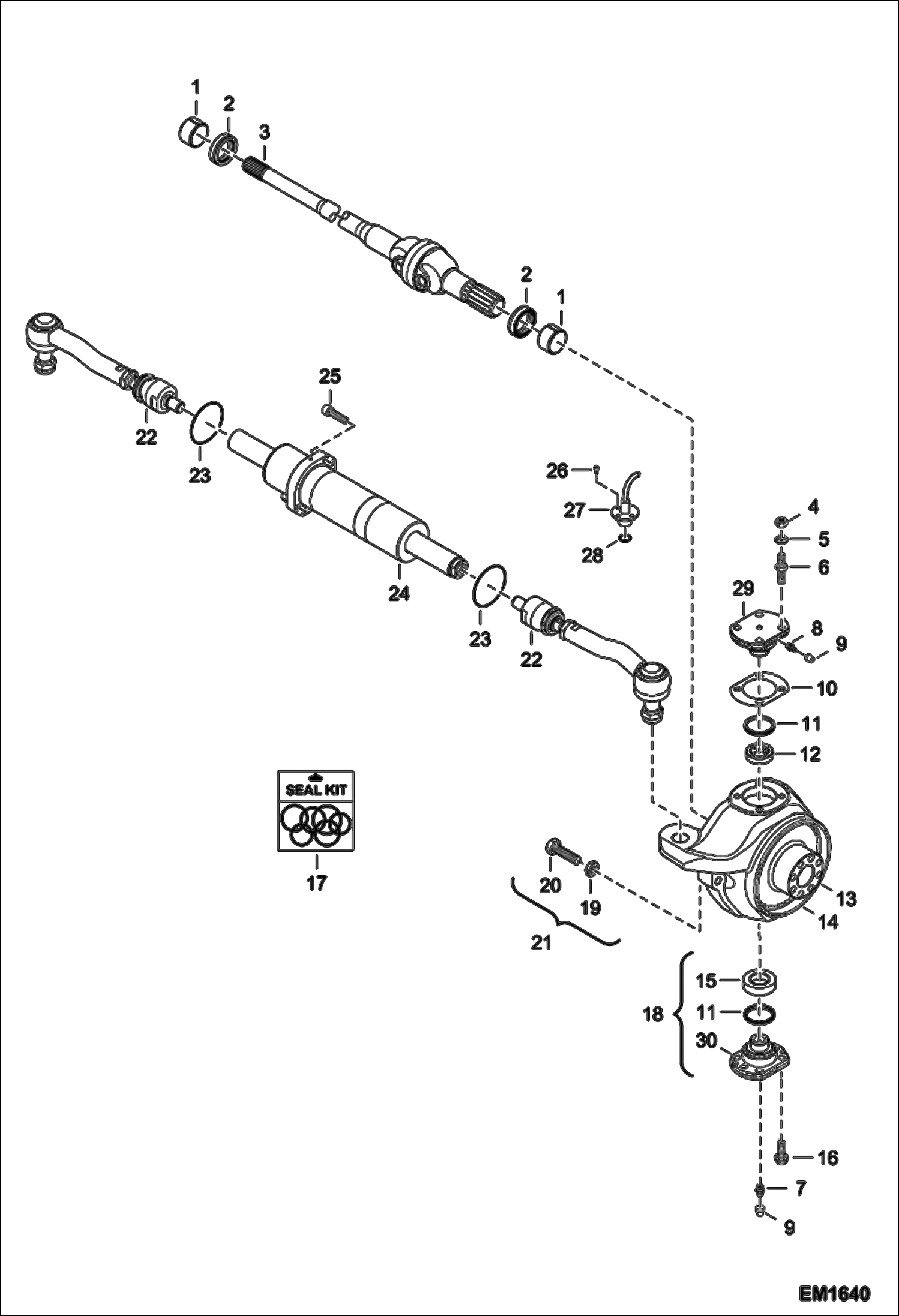

Схема запчастей Bobcat T2556 - STEERING - REAR AXLE DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

6912679

BUSH

2

6912708

SEAL

3

6912701

JOINT Was 6921022 - B, D

4

6912684

NUT

5

6912736

WASHER

6

7010888

STUD Was 6912696 - B

7

6912700

LUBRICATOR Was 6912942 - B

8

6912939

LUBRICATOR Was 6912700 - D

9

6912629

PLUG

10

6912646

SHIM 0,15 mm

10

6912647

SHIM 0,20 mm

10

6912648

SHIM 0,50 mm

11

6912707

SEAL

12

6921515

BUSHING Was 6912680 - A

13

7011191

CASE, STEERING RH - includes (1) of Ref. 1 (6912679 thrust bushing) Was 6912934 - A

14

7011190

CASE, STEERING LH - includes (1) of Ref. 1 (6912679 thrust bushing) Was 6912933 - A

15

6912899

ARTICULATION

16

6912771

SCREW

17

6912976

JEU DE JOINTS serial number listed is the vendor axle serial number - for Ref. 24

17

7012549

SET OF SEAL serial number listed is the vendor axle serial number - for Ref. 24

18

6912729

PIVOT W/Ref. 11, 15 & 30

19

6912685

NUT

20

6912773

SCREW

21

6912774

SCREW W/Ref. 19-20

22

6912755

ROD ASSY

23

6912613

O-RING

24

6912760

RAM

25

6912765

SCREW

26

6912766

SCREW

27

6912672

DETECTOR

28

6912719

O'RING

29

6912940

PIVOT

30

PIVOT NAP - Order Ref. 18

Выбрано товаров: 33
