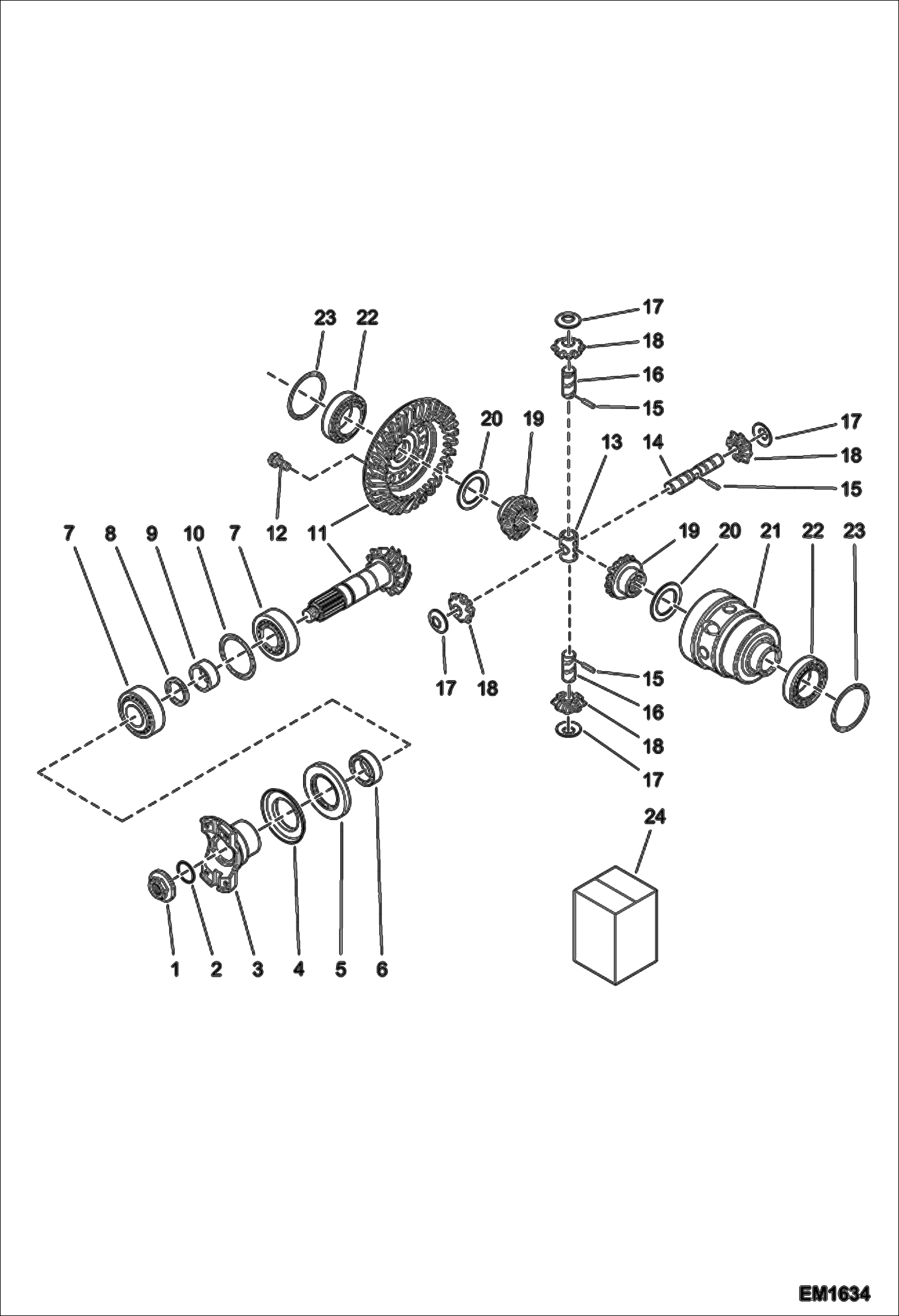

Запчасти Bobcat T2556 DIFFERENTIAL - REAR AXLE DRIVE SYSTEM

1

6912689

NUT

2

6912709

O'RING

3

6912630

FLANGE

4

6912670

COVER

5

7010890

SEAL Was 6912703 - B

6

6912694

SPACER

7

6912744

BEARING

8

6912616

BUSH

8

6912617

BUSH

9

6921512

SPACER Was 6912692 - A

10

6912639

SHIM 0,10 mm

10

6912640

SHIM 0,15 mm

10

6912641

SHIM 0,20 mm

11

6921032

BEVEL GEAR SET

12

6912153

SCREW

13

7011194

RETAINER, SHAFT Was 6912671 - B

14

SPINDLE NLA - Order 7011169 spindle & (2) of 7011170 spindle - serial number listed is the vendor axle serial number Was 6912610 - B

14

7011169

SPINDLE Use W/Ref. 16 (7011170 spindle) - serial number listed is the vendor axle serial number

15

6912698

PIN

16

SPINDLE NLA - Order 7011169 spindle & (2) of 7011170 spindle - serial number listed is the vendor axle serial number Was 6912611 - B

16

7011170

SPINDLE Use W/Ref. 14 (7011169 spindle) - serial number listed is the vendor axle serial number

17

7010569

WASHER FRICTION Was 6912739 - C

18

6921514

DIFFERENTIAL

19

6921513

DIFFERENTIAL

20

7010568

WASHER FRICTION Was 6912738 - C

21

HOUSING, DIFFERENTIAL NAP

22

6912743

BEARING

23

6912638

SHIM 0,10 mm

23

6912643

SHIM 0,15 mm

23

6912644

SHIM 0,20 mm

23

6646265

SHIM 0.25 mm Was 6912645 - A

24

7010867

DIFFERENTIAL, KIT W/Ref. 13-21
