Запчасти Bobcat T2556 OPERATOR CAB II (S/N A8FR11001 - 12999, A8G311001 - 12999) MAIN FRAME

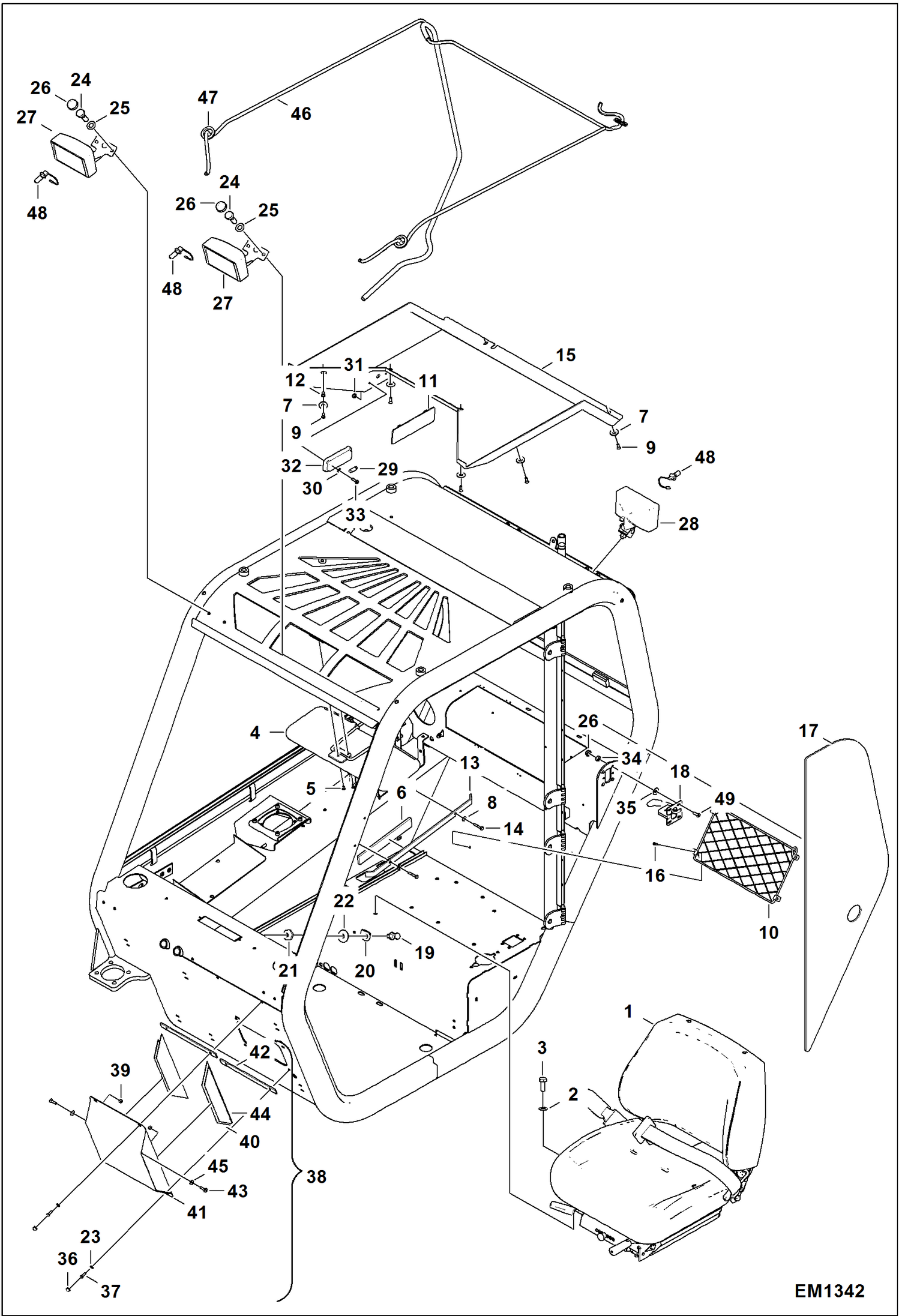

Схема запчастей Bobcat T2556 - OPERATOR CAB II (S/N A8FR11001 - 12999, A8G311001 - 12999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6911769

SEAT ASSY See Illustration SEAT & SUSPENSION/ EM1343

2

89519.3

Washer

3

1CM820

BOLT Was 01596.6 - B

4

7024867

SUNSCREEN Was 79902.3 - B

5

6910697

SCREW

6

6910908

FOAM STRIP

7

000350-21R

WASHER

8

01717.8

Washer

9

72186.0

SCREW

10

7193037

NET, MANUAL Was 75883.9 - B

11

79581.5

Cover

12

86167.4

Nut

13

97504.5

Bracket

14

100338-23F

SCREW

15

6910878

COWLING

16

6910999

SCREW

17

6908789

WINDOW PANE,REAR LEFT

18

6910552

DOOR STOP

19

6918345

CATCH Was 6910946 - B,D

20

6910947

LATCH PROTECTOR

21

6910948

CATCH,LATCH

22

6910949

WASHER

23

01696.4

Washer

24

01591.7

Screw Was 01590.9 - B

25

29272.2

Washer

26

63332.1

Cap

27

78815.8

Front worklight Was 6909971 - D

28

78816.6

Rear worklight Was 6909970 - D

29

7228077

BULB, LIGHT Was 01443.1 - A

30

007346-02F

WASHER

31

100345-04U

NUT

32

7228070

LIGHT, DOME Was 101438-93V - A

33

6910505

SCREW

34

01666.7

Nut

35

01717.8

Washer

36

63332.1

Cap

37

01590.9

Screw

38

6918862

BOX FILTER Ref. 39-45 Was 6910503 - D

39

01664.2

Nut

40

6910502

FILTER

41

6910503

FILTER BOX

42

6910504

SEAL

43

6910505

SCREW

44

6910929

INTERNAL GRID

45

6910936

WASHER JZC4

46

97236.4

Wire Harness

47

6909953

GROMMET , 37X45X32/3

48

6960571

BULB Was 7200932 - A

49

25GM5016

BOLT

Выбрано товаров: 49
