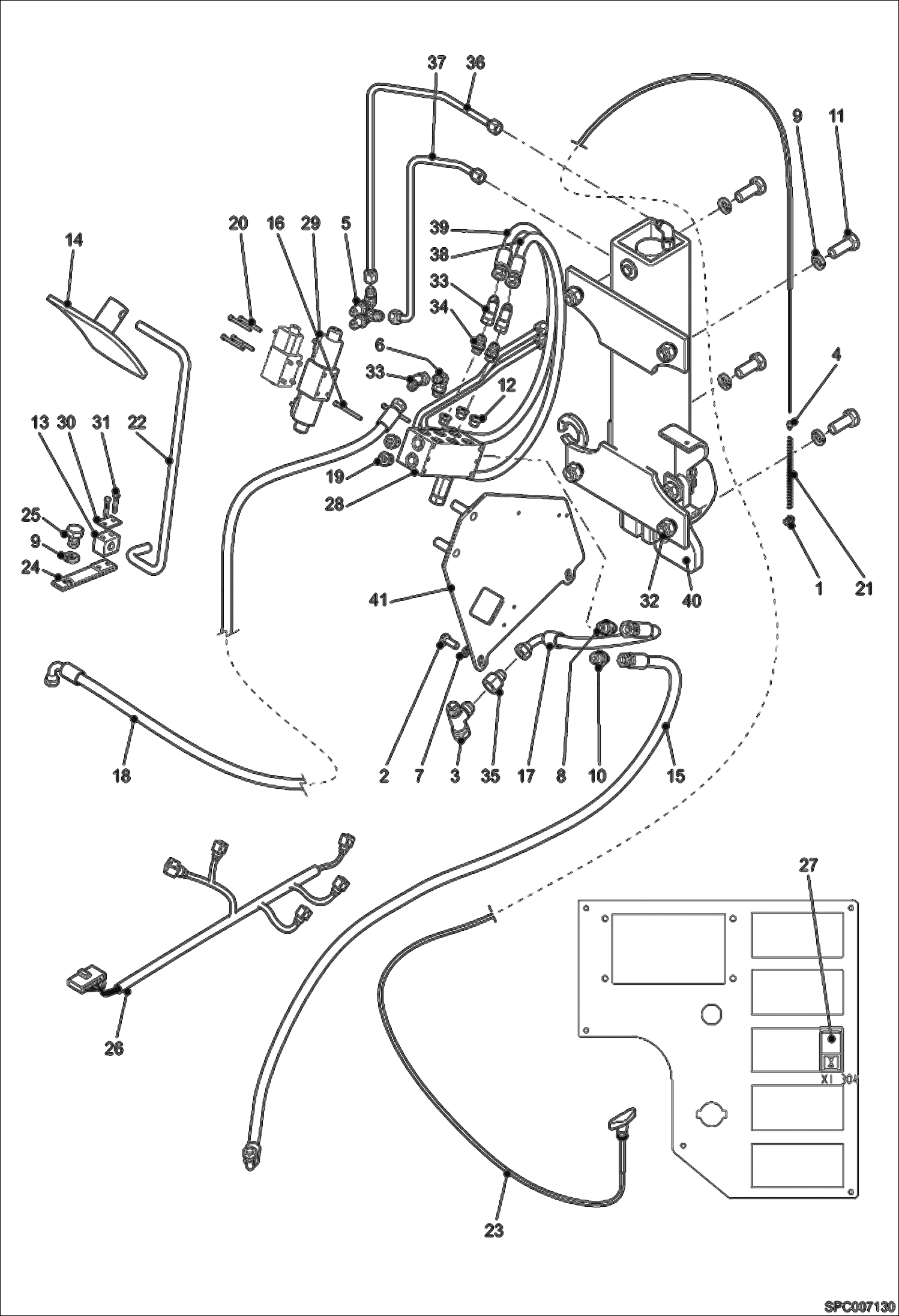

Запчасти Bobcat T2556 REAR HYDRAULIC HOOK ACCESSORIES & OPTIONS

1

7231142

STOP, CABLE Was 000368-80M - A

2

01612.1

Screw

3

008372-34M

UNION

4

7231579

STOP Was 009368-06S - A

5

010370-87T

ELBOW PIECE

6

010370-94B

ELBOW PIECE

7

11689.7

Washer

8

014375-30H

UNION

9

15323.9

Washer

10

022375-04U

UNION

11

44001.6

Screw

12

56029.2

Plug

13

7179623

SLEEVE Was 61358.8 - A

14

63860.1

Mirror

15

6910391

Adapter Was 65717.1 - A

16

68566.9

Screw

17

70225.8

Hose

18

72281.9

Hose

19

78743.2

Drain plug

20

79160.8

Screw

21

79285.3

Spring

22

79300.0

Pipe

23

84468.8

Cable

24

6918252

SUPPORT Was 84648.5 - A

25

96467.6

Screw

26

96589.7

Wire harness

27

96598.8

Switch (proportional)

28

98356.9

Valve

29

98360.1

Union

30

100228-57K

COVER

31

100338-23F

SCREW

32

100345-20M

NUT

33

100371-17K

ELBOW

34

100375-38S

UNION

35

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

36

6908330

PIPE

37

6908331

PIPE

38

6909893

HOSE

39

6909894

HOSE

40

6910389

HOOK ASMBLY See Illustration HOOK/ SPC007099

41

6916562

SUPPORT
