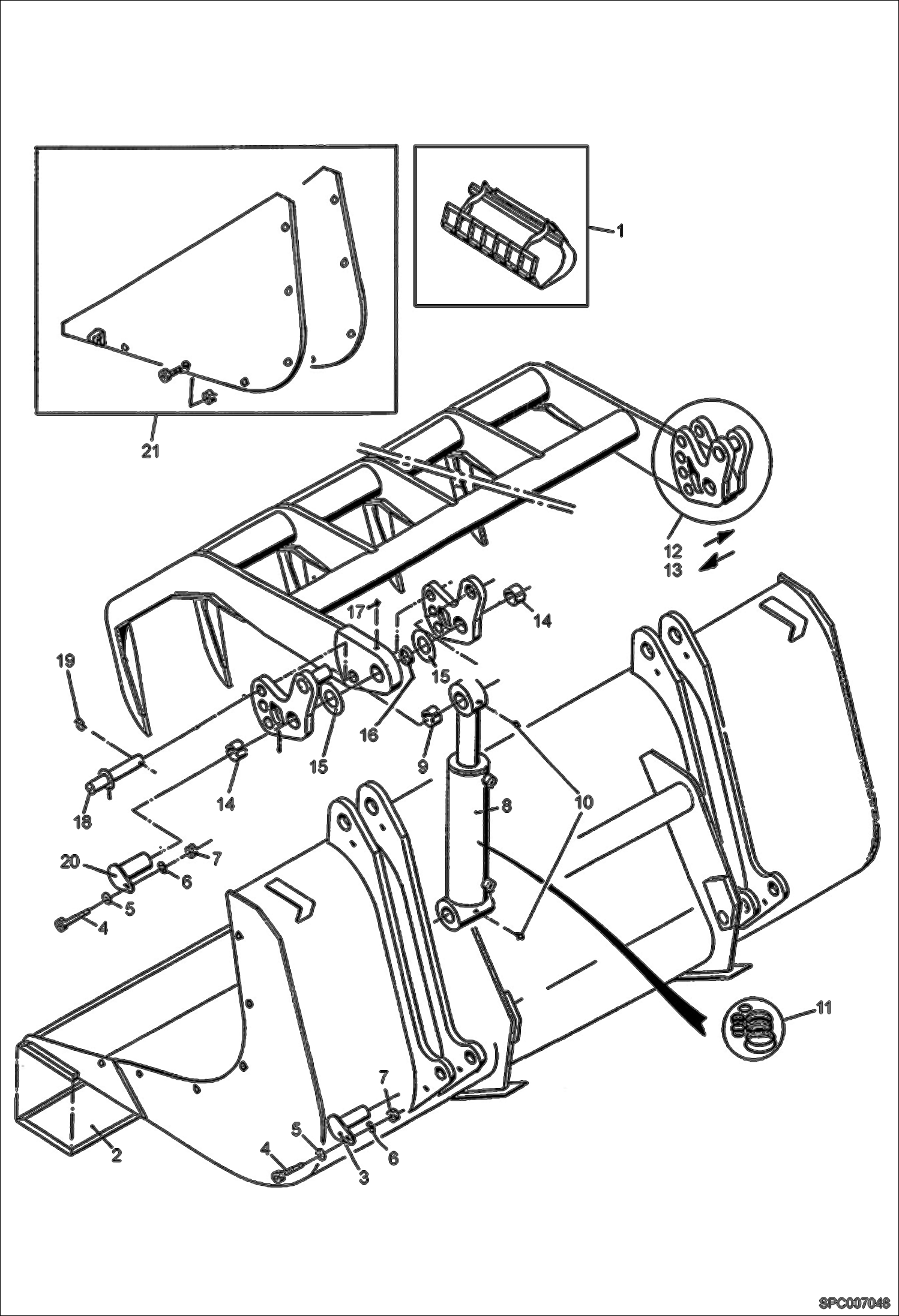

Запчасти Bobcat T2556 BUCKET WITH GRAB ACCESSORIES & OPTIONS

1

84405.0

Grab bucket

2

63485.7

Segment

3

81001.0

Pin

4

01607.1

Screw

5

01698.0

Washer

6

01719.4

Washer

7

01669.1

Nut

8

75197.4

Cylinder

9

63459.2

Bush

10

01775.6

Grease Nipple

11

75225.3

Seals kit

12

75238.6

R.H. Assembly

13

75249.3

L.H. Assembly

14

63458.4

Bush

15

81013.5

Washer

16

81006.9

Spacer

17

75273.3

Grease nipple

18

81000.2

Pin

19

81012.7

Pin

20

81002.8

Pin

21

84634.5

Kit
