Запчасти Bobcat T2556 FUEL FEEDING POWER UNIT

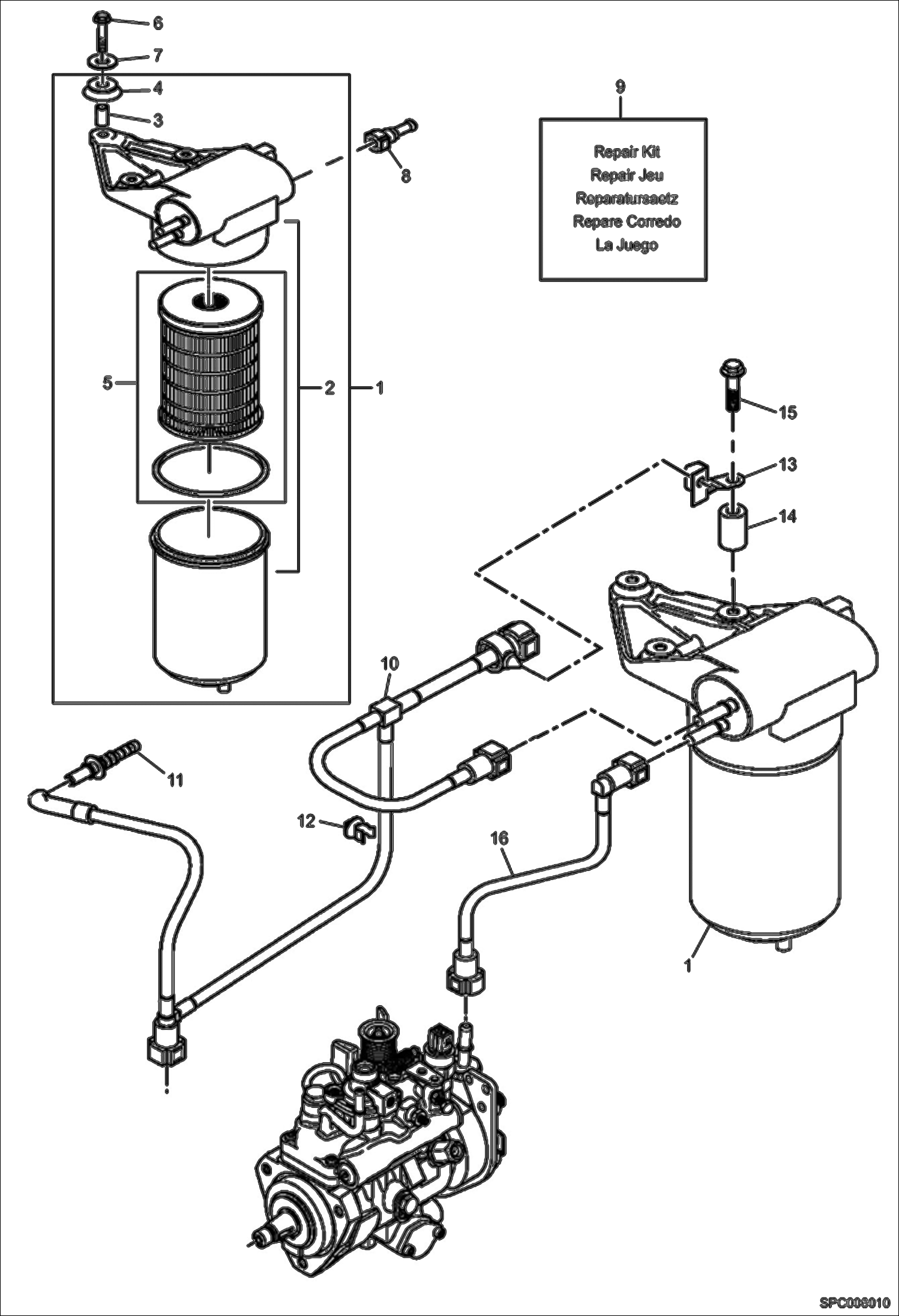

Схема запчастей Bobcat T2556 - FUEL FEEDING POWER UNIT

Артикул

Название

Примечание

Количество

1

6912158

PUMP, LIFT W/Ref. 2-5 Was 6912009

2

PUMP NSS - Order Ref. 1

3

SPACER NSS - Order Ref. 9

4

MOUNTING NSS - Order Ref. 9

5

6911907

FUEL FILTER ELEMENT KIT W/ O-ring

6

6911868

SCREW

7

6911863

WASHER

8

6911991

CONNECTION

9

6912023

MOUNTING KIT

10

6911903

FUEL FEED PIPE

11

6912039

CONNECTION Was 6911990

12

6911890

CLIP

13

6911987

BRACKET

14

6911943

SPACER

15

71335.4

Screw

16

6911902

FUEL FEED PIPE

Выбрано товаров: 16
