Запчасти Bobcat T2556 HYDROSTATIC HOSES & FITTINGS HYDROSTATIC SYSTEM

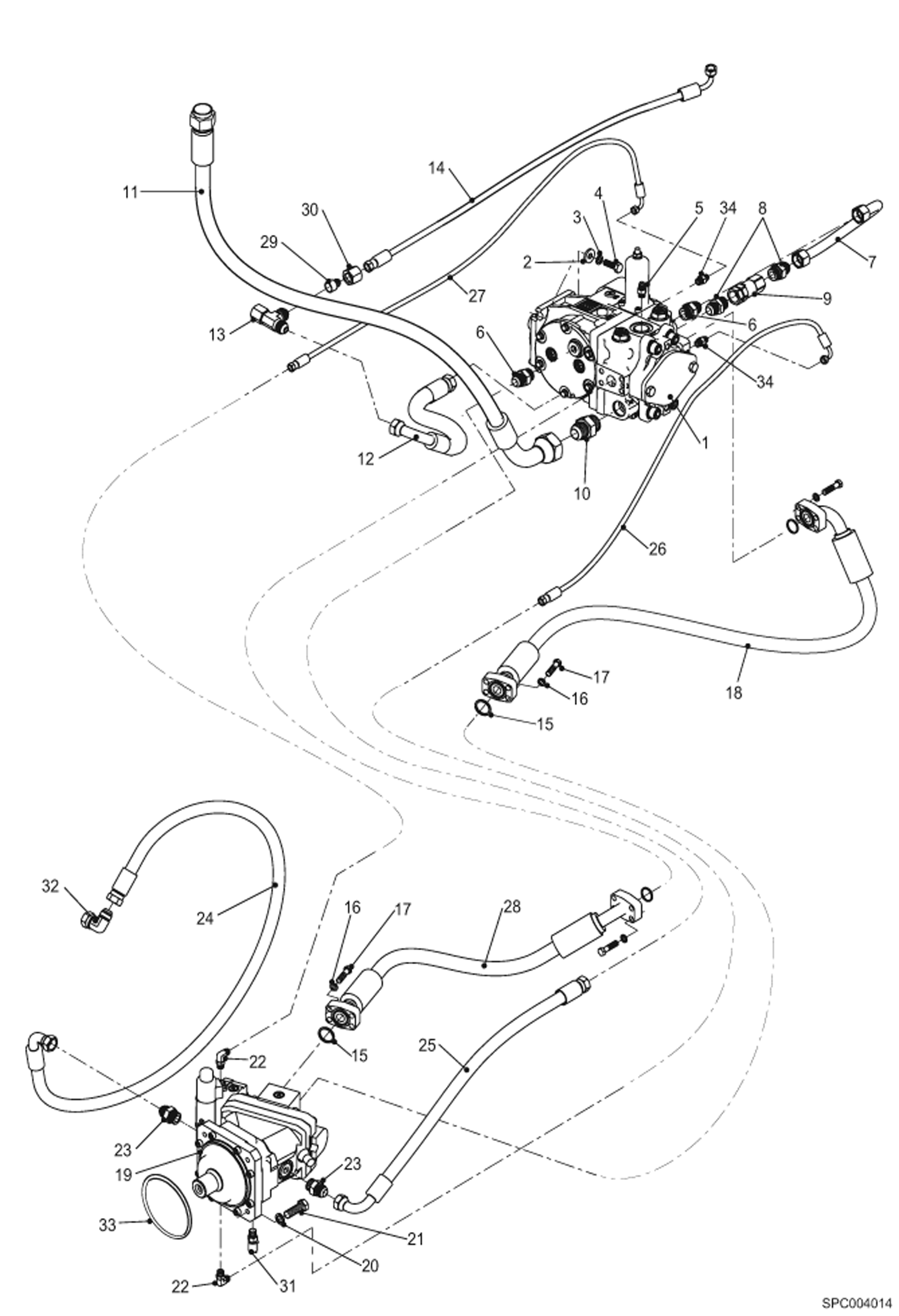

Схема запчастей Bobcat T2556 - HYDROSTATIC HOSES & FITTINGS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6910534

HYDROSTATIC PUMP See Illustration HYDROSTATIC PUMP ASSY/ SPC004007

2

100454-17G

WASHER

3

89517.7

Washer

4

01613.9

Screw

5

67046.3

Adapter

6

014375-33L

UNION

7

6909780

PIPE

8

100375-40U

UNION

9

97880.9

Check valve

10

78705.1

Adapter

11

6913204

HOSE

12

6910599

HOSE TJ 1.1/16 19 TJ90 1.1/16 L470

13

008372-34M

UNION

14

6908572

HOSE TJ45 3/4 9,5 TJ 9/16 L1600

15

7009211

O-RING Was 003304-21D - B

16

92210.4

Washer

17

28689.8

Screw

18

6915038

HOSE

19

6927762

MOTOR 25CC See Illustration HYDROSTATIC MOTOR ASSY/ EM5532 Was 79592.2 - A

20

89518.5

Washer

21

28439.8

Screw

22

010370-38Q

UNION

23

014375-33L

UNION

24

6927924

HOSE Was 96795.0 - B

25

6909185

HOSE

26

6915360

HOSE

27

6915360

HOSE

28

6915037

HOSE

29

100375-15S

ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

30

100345-34C

NUT D20-1.1/16 JIC

31

72065.6

Pressure switch W/chain - test port W/chain

32

FITTING, HYD ELBOW Was 008372-14Q - B

33

82026.6

O-ring

34

100375-12P

UNION

Выбрано товаров: 34
