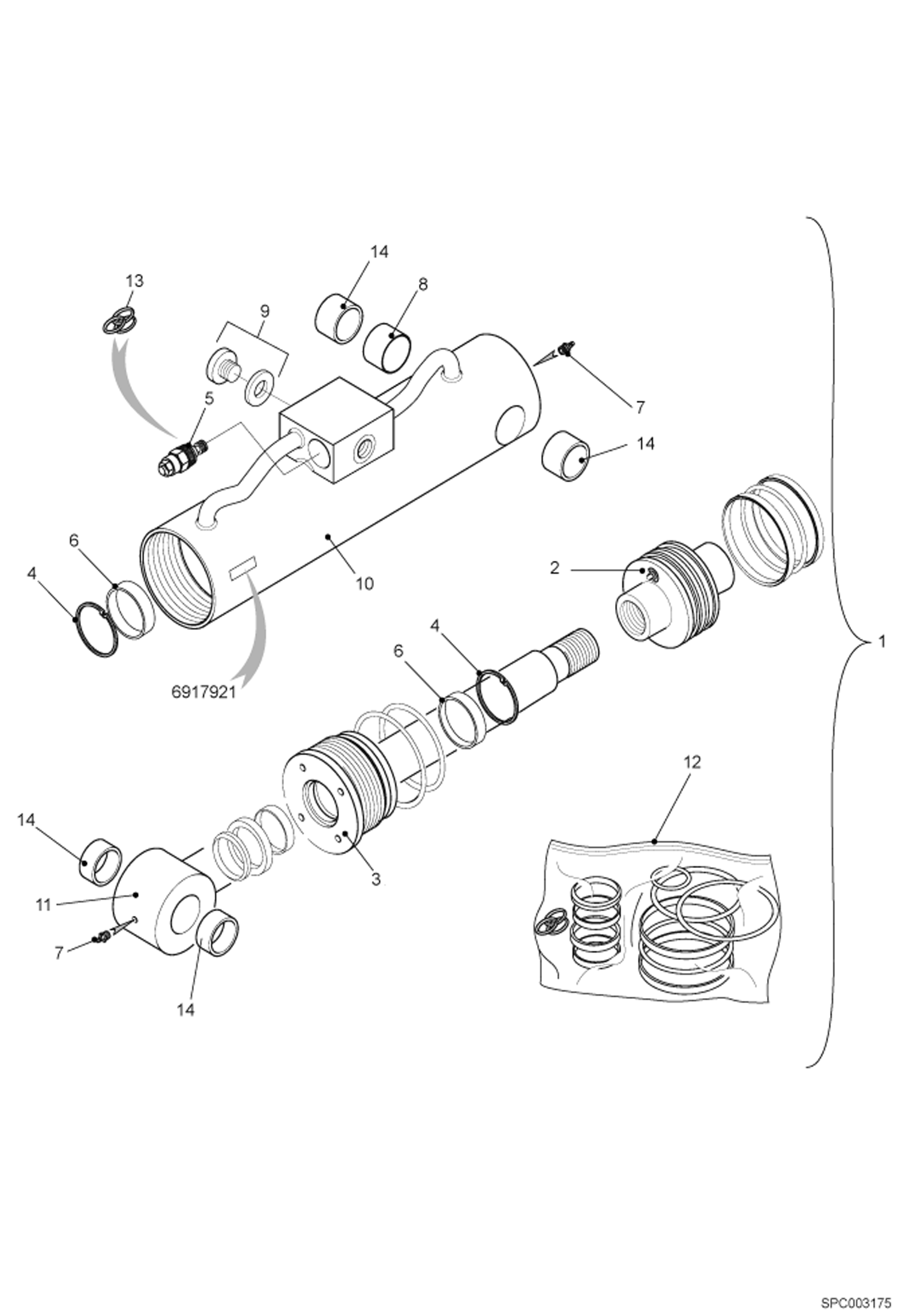

Запчасти Bobcat T2556 TILT CYLINDER (S/N 363012029 & Above, 363112031 & Above) HYDRAULIC SYSTEM

1

6917921

CYLINDER, RAM W/Ref. 2-14

2

93486.9

Piston

3

93485.1

Cylinder Head

4

6912963

SNAP RING

5

75591.8

Lock Valve

6

93657.5

Bushing

7

6912964

LUBRICATOR

8

93656.7

Spacer

9

6912109

PLUG

10

6912965

RAM CYLINDER

11

6912966

RAM ROD

12

7012392

KIT, SEAL Was 6912967 - B, D

13

100496-04H

SEAL KIT Use W/Ref. 5 (75591.8 lock valve)

14

75618.9

Bushing
