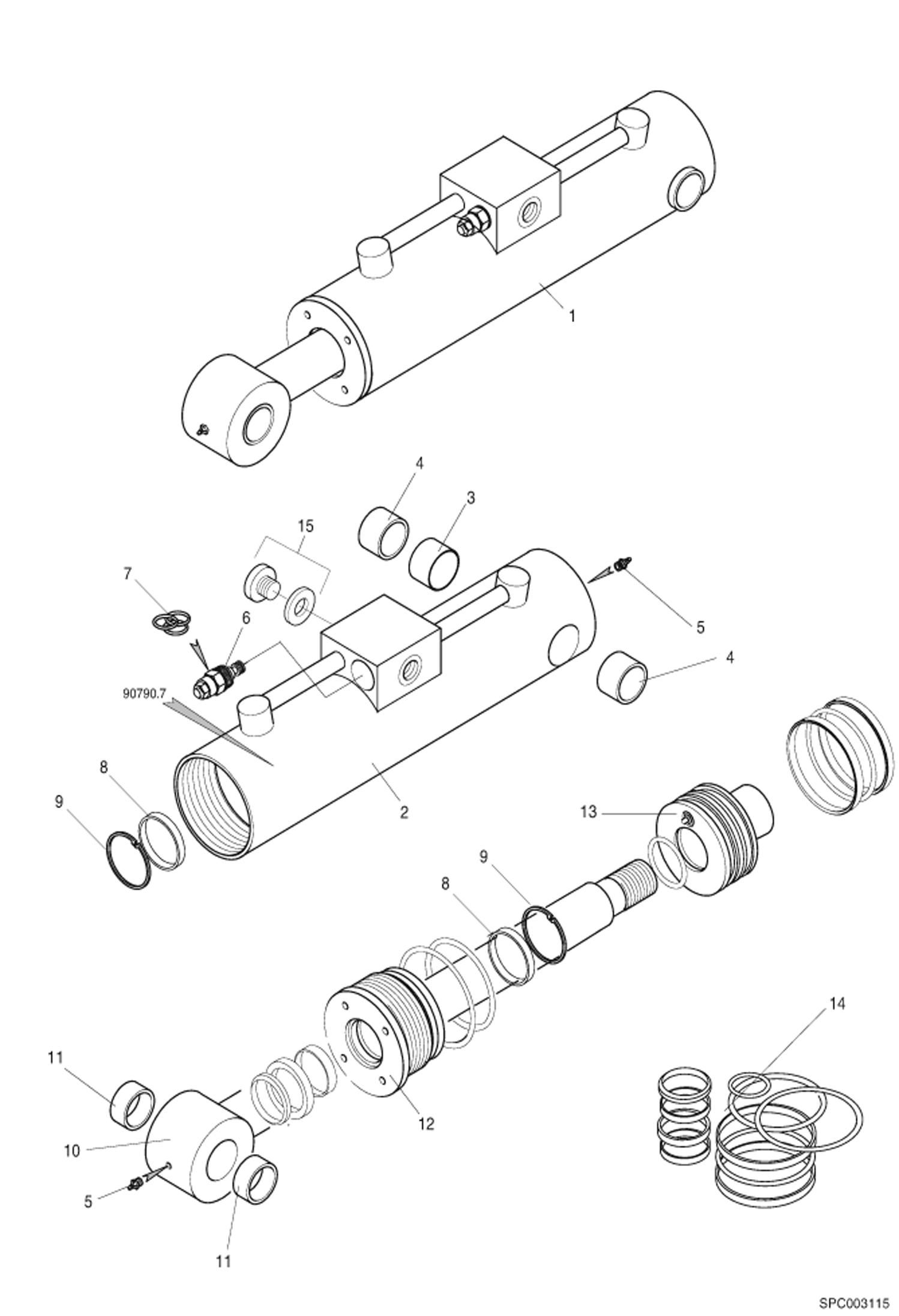

Запчасти Bobcat T2556 TILT CYLINDER (S/N 363012001 - 12028, 363112001 - 12030) HYDRAULIC SYSTEM

1

TILT CYLINDER NLA - W/Ref. 2-15 Was 90790.7 - A

2

CYLINDER BODY NAP

3

93656.7

Spacer

4

75618.9

Bushing

5

81573.8

Grease nipple

6

75591.8

Lock Valve

7

100496-04H

SEAL KIT

8

93657.5

Bushing

9

00746.8

Snap Ring

10

93484.4

Cylinder Rod

11

75618.9

Bushing

12

93485.1

Cylinder Head

13

93486.9

Piston

14

93478.6

Seal Kit

15

6912109

PLUG
