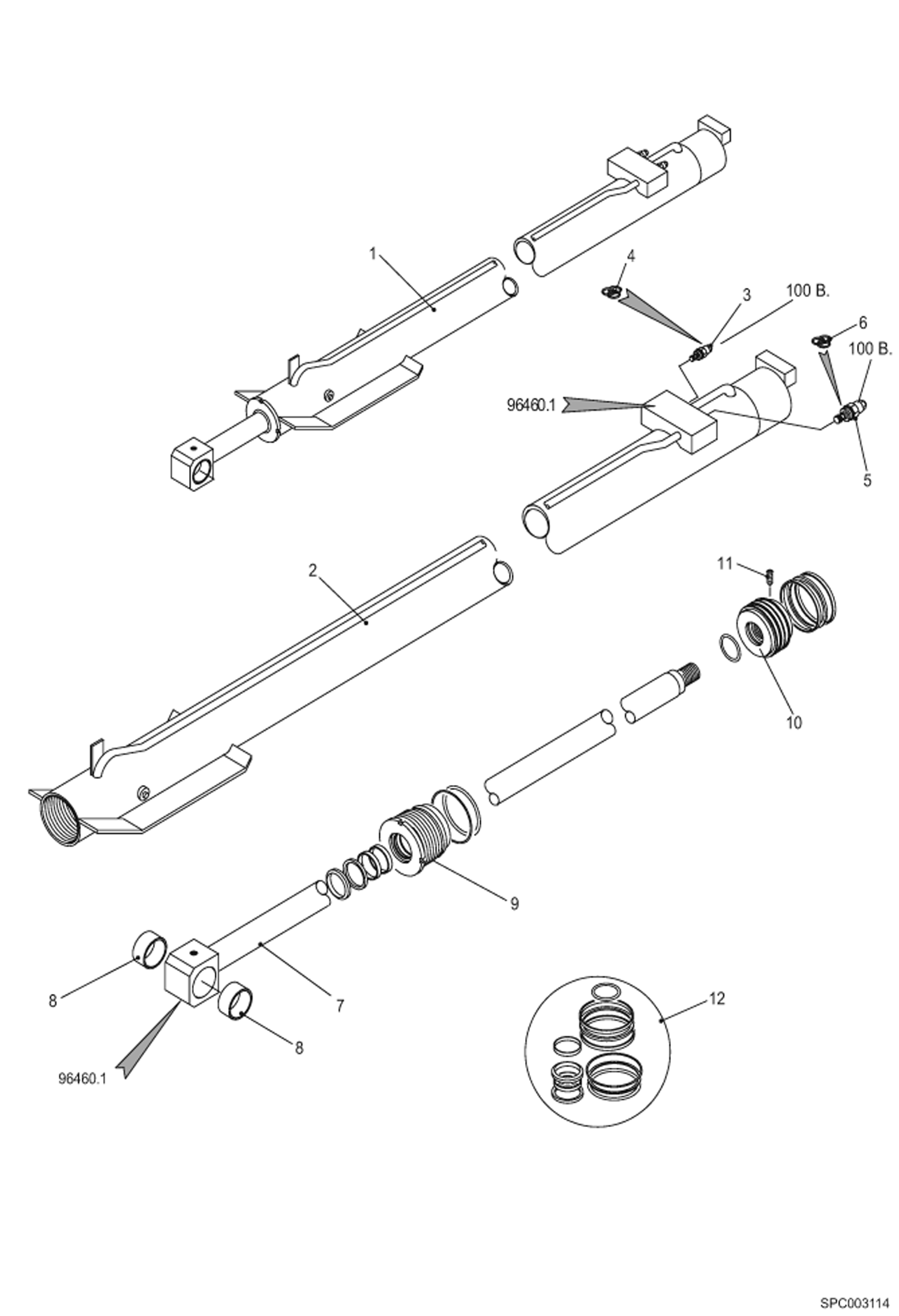

Запчасти Bobcat T2556 TELESCOPE CYLINDER (S/N 363112001 & Above) HYDRAULIC SYSTEM

1

96460.1

Telescope cylinder W/Ref. 2-12

2

CYLINDER BODY NAP

3

75172.7

Valve

4

100496-04H

SEAL KIT

5

75173.5

Valve

6

100496-74K

SEAL KIT

7

93667.4

Ram rod

8

75618.9

Bushing

9

75644.5

Cylinder Head

10

75645.2

Piston

11

75646.0

Screw

12

75319.4

Seal Kit
