Запчасти Bobcat T2556 COMPENSATION CYLINDER HYDRAULIC SYSTEM

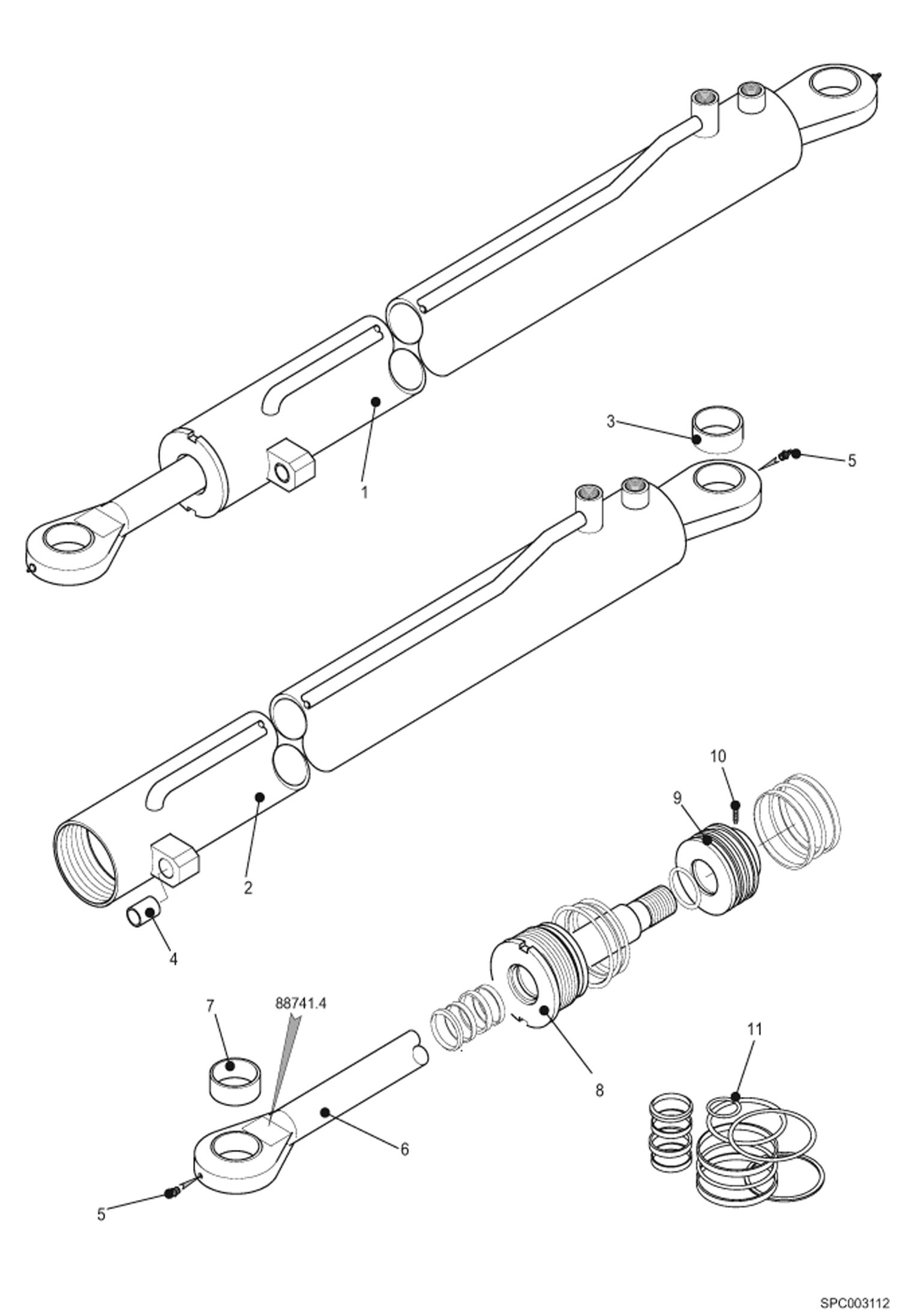

Схема запчастей Bobcat T2556 - COMPENSATION CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

88741.4

Compensation Cylinder W/Ref. 2-3 & 5-11

2

CYLINDER BODY NAP

3

72347.8

Bushing

4

88739.8

Block Was 93663.3

5

81573.8

Grease nipple

6

93661.7

Cylinder Rod

7

72347.8

Bushing

8

93662.5

Cylinder Head

9

93660.9

Piston

10

75646.0

Screw

11

93474.5

Seal Kit

Выбрано товаров: 11
