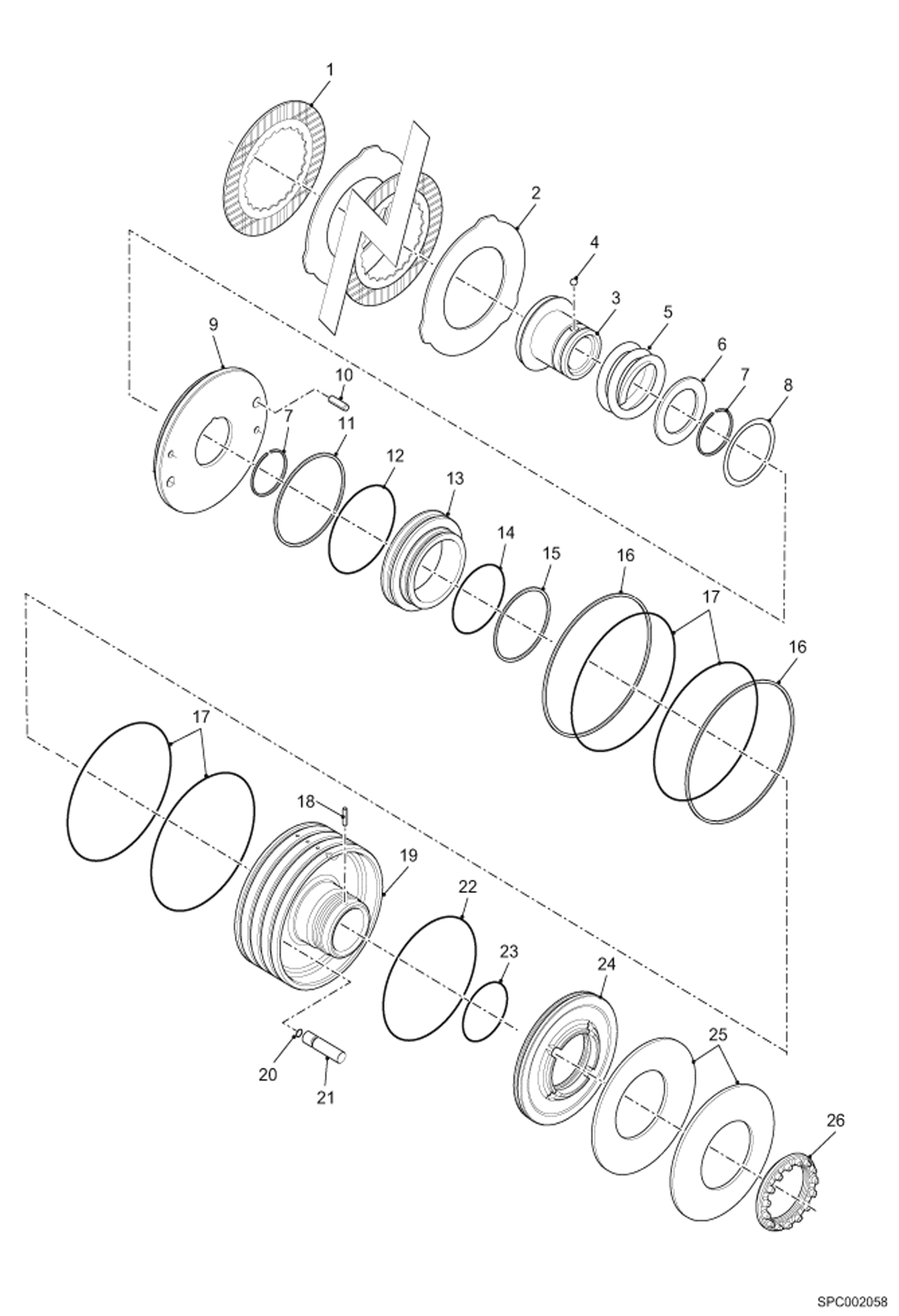

Запчасти Bobcat T2556 BRAKES - FRONT AXLE (S/N 363012001 - 12500, 363112001 - 12500) DRIVE SYSTEM

1

6912677

BRAKE DISC

2

6912675

BRAKE DISC intermediate

3

6912678

BUSH

4

6912621

BALL

5

6912733

SPRING

6

SPACER NAP Was 6912691 - A

7

6912659

SNAP RING

8

6912635

SHIM 0,10 mm

8

6912636

SHIM 0,30 mm

8

6912637

SHIM 0,40 mm

8

6912790

SHIM 0,15MM 0,15 mm

8

6912642

SHIM 0,20 mm

9

6912676

BRAKE DISC

10

6912699

PIN

11

6912620

BACK -UP RING

12

6912720

O'RING

13

6912727

PISTON

14

6912710

O'RING

15

6912618

BACK -UP RING

16

6912619

BACK -UP RING

17

6912712

O'RING

18

6912698

PIN

19

6912725

PISTON

20

6912713

O'RING

21

6912612

SPINDLE

22

6912711

O'RING

23

6912718

O'RING

24

6912726

PISTON

25

6912734

SPRING

26

6912687

NUT
