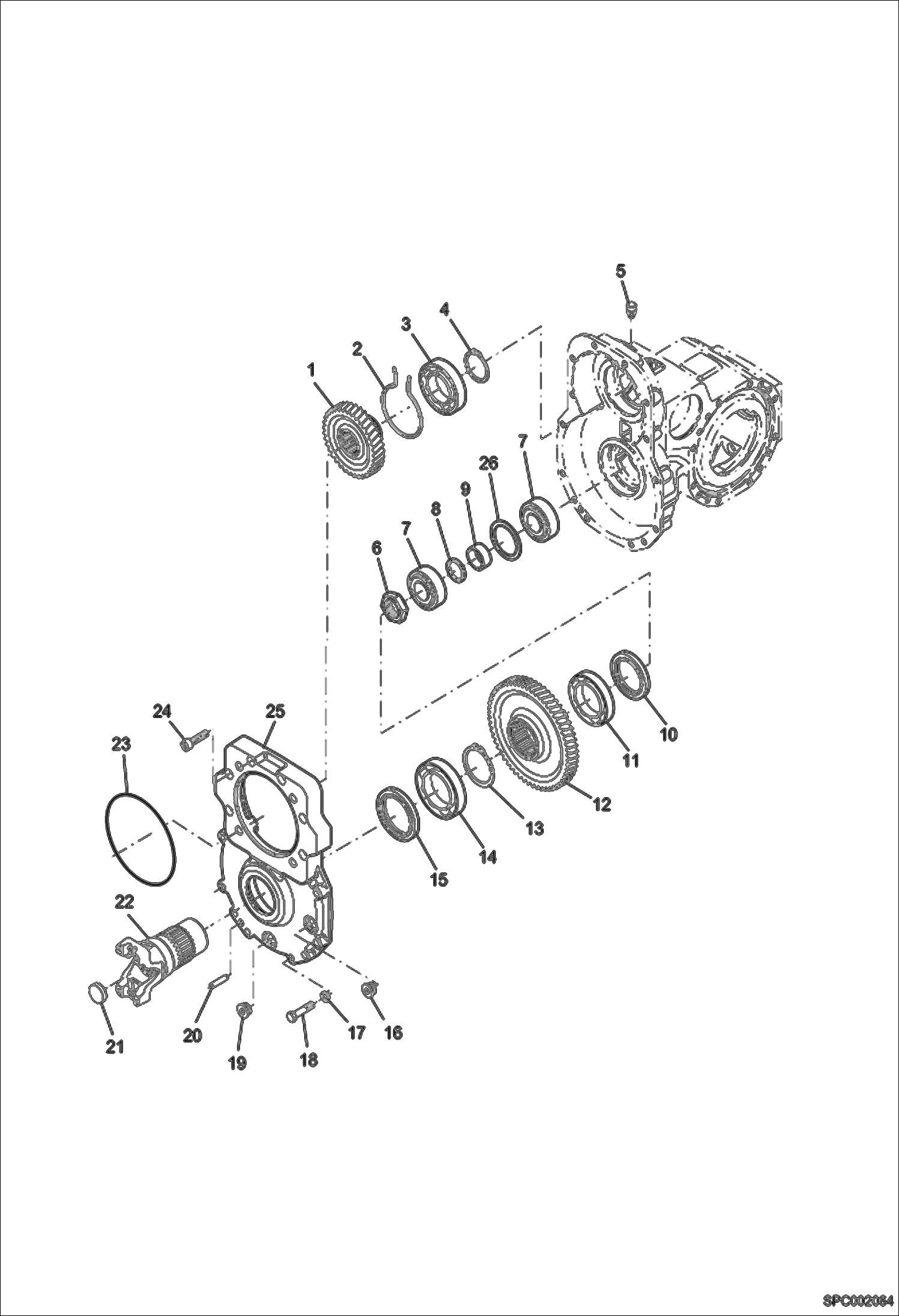

Запчасти Bobcat T2556 REDUCER BOX - FRONT AXLE (S/N 363012501 & Above, 363112501 & Above) DRIVE SYSTEM

1

6912722

GEAR

2

6912664

SNAP RING

3

6912740

BEARING

4

6912653

SNAP RING

5

7010887

VENT Was 6912732 - B

6

6912688

NUT Was 6912938 - B

7

6912744

BEARING

8

6912616

BUSH

8

6912617

BUSH

9

6921512

SPACER Was 6912692 - B

10

6912702

SEAL

11

6912741

BEARING

12

6912723

GEAR

13

6912654

SNAP RING

14

6912742

BEARING

15

6912704

SEAL

16

6912627

PLUG

17

6912735

WASHER

18

7009648

BOLT, HEX Was 6912762 - A

19

6921018

MAGNET PLUG Was 6912628 - A

20

6912724

DOWEL

21

6912624

PLUG

22

6912631

FLANGE

23

6912717

O'RING

24

6912765

SCREW Was 6912947 - B

25

6912936

COVER

26

6912639

SHIM 0,10 mm

26

6912640

SHIM 0,15 mm

26

6912641

SHIM 0,20 mm
