Запчасти Bobcat T2556 MUDGUARD 18 ACCESSORIES & OPTIONS

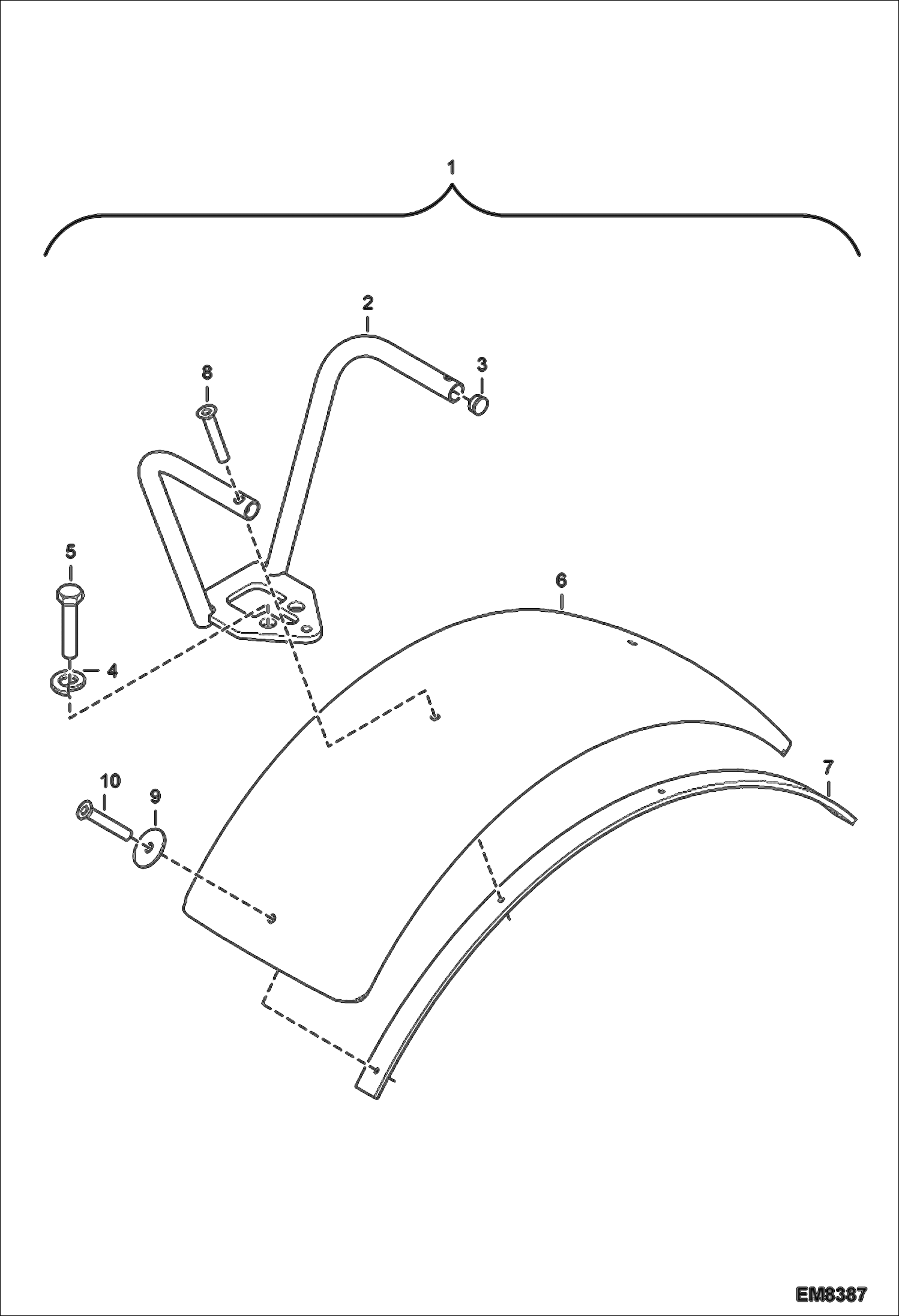

Схема запчастей Bobcat T2556 - MUDGUARD 18 ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

MUDGUARD 18'' NAP - Order components - W/Ref. 2-10

2

96920.4

Support

3

7236335

CAP Was 79297.8 - A

4

89332.1

Washer

5

76029.8

Screw

6

78568.3

Mudguard

7

84930.7

Plate

8

7236337

SCREW Was 79293.7 - A

9

000350-21R

WASHER

10

79294.5

Screw

Выбрано товаров: 10
