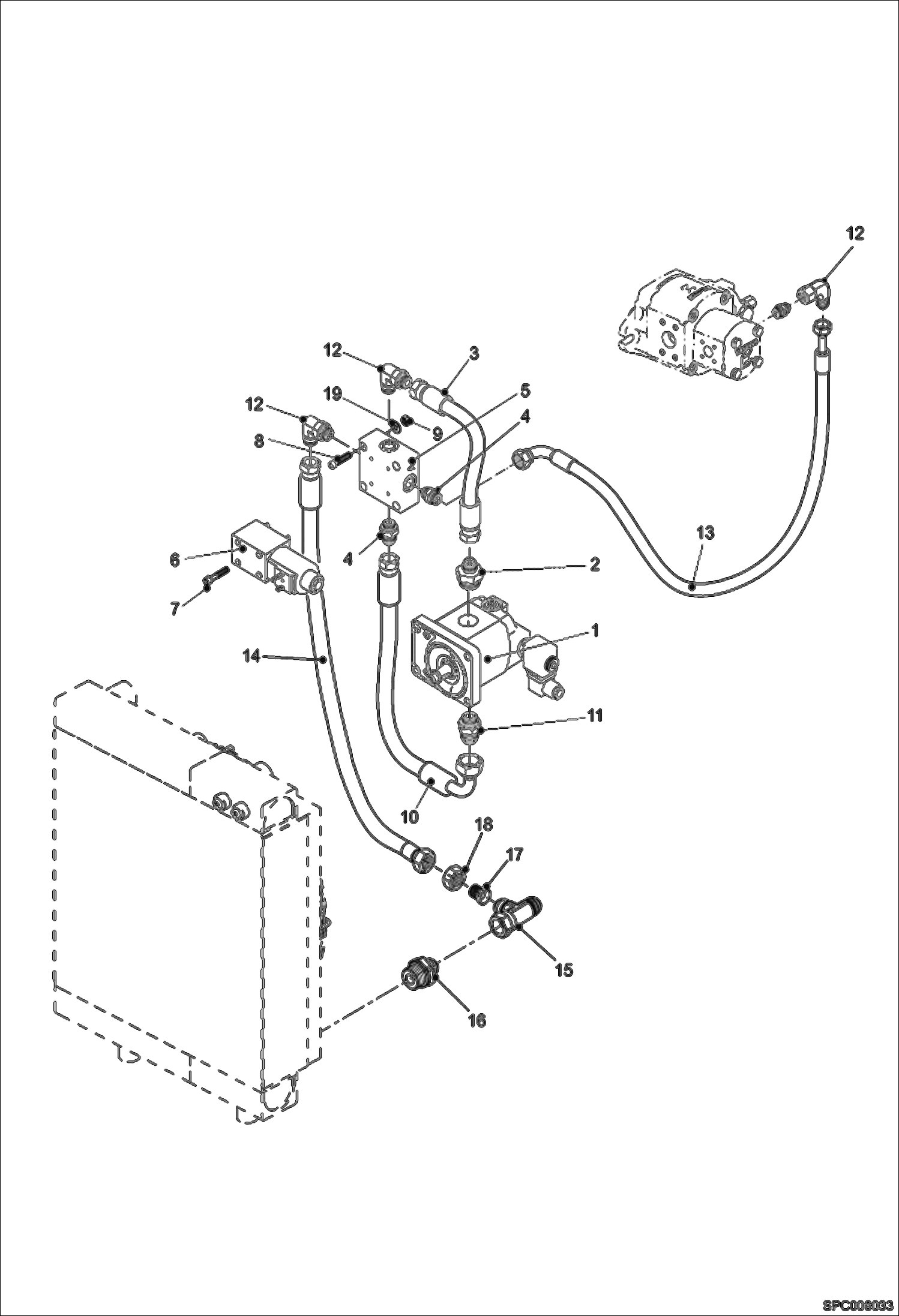

Запчасти Bobcat T2556 COOLING FAN CIRCUIT (WITH OPTIONAL REVERSE) (S/N 363012600 & Below, 363112570 & Below) POWER UNIT

1

6916976

Hydraulic motor (2 speed) See Illustration HYDRAULIC MOTOR/ SPC003176 2 speed Was 6909809

2

100375-59Q

UNION 3/4 JIC 3/4 BSP

3

92995.0

Hose Was 6911027

4

100375-38S

UNION

5

98348.6

Support

6

98355.1

Electro distributor W/Ref. 6-7

7

79160.8

Screw

8

13669.7

Screw

9

100345-06W

NUT

10

6911028

HOSE

11

100375-40U

UNION

12

010370-94B

ELBOW PIECE

13

65718.9

Hose

14

96759.6

Hose Was 6911029

15

008372-34M

UNION

16

68609.7

Union

17

100375-15S

ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

18

100345-34C

NUT D20-1.1/16 JIC

19

01696.4

Washer
