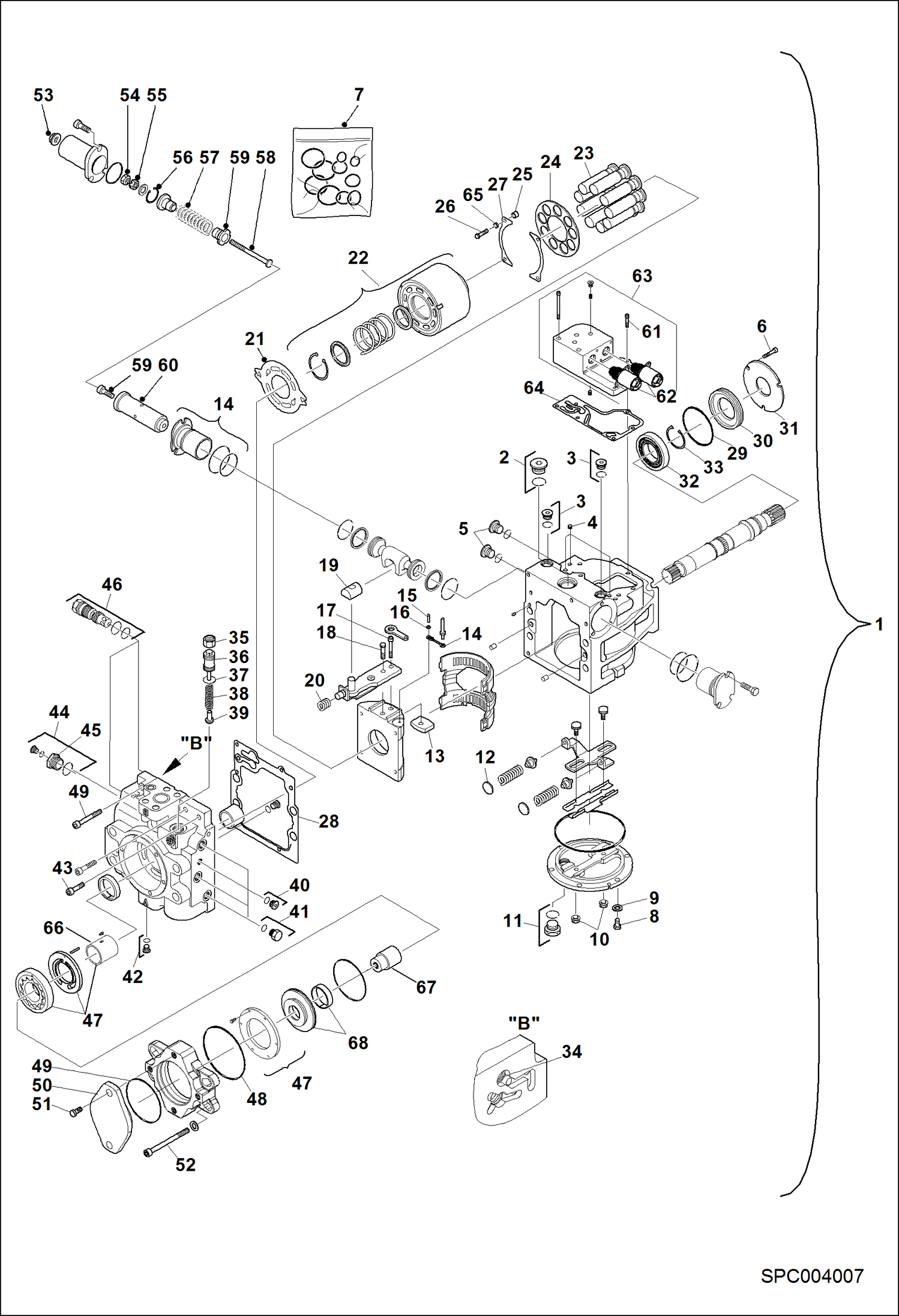

Запчасти Bobcat T2556 HYDROSTATIC PUMP ASSY HYDROSTATIC SYSTEM

1

6910534

HYDROSTATIC PUMP W/Ref. 2-65

2

71675.3

Plug Was 71607.6

3

71748.8

Plug

4

71641.5

Filter

5

71674.6

Plug

6

6912067

SCREW Was 71706.6

7

92598.2

Seal Kit

8

71717.3

Screw

9

71716.5

Washer

10

71715.7

Seal-lock nut

11

71675.3

Plug

12

71713.2

Washer

13

71678.7

Guide

14

71679.5

Pin

15

71682.9

Pin

16

71681.1

Washer

17

71687.8

Screw

18

71686.0

Screw

19

71685.2

Slide nut

20

71684.5

Spring

21

98654.7

Valve plate

22

6662172

CYLINDER BLOCK Was 98648.9 - A

23

98649.7

Piston

24

98650.5

Plate

25

98652.1

Spacer

26

98653.9

Screw

27

98651.3

Guide

28

6910729

SEAL

29

6910730

O'RING

30

6909984

HOUSING

31

6910732

SEAL SUPPORT

32

6662144

BEARING Was 6910739 - A

33

6910740

CLIP

34

71748.8

Plug

35

71633.2

Nut

36

71750.4

Screw

37

71632.4

O-ring

38

71749.6

Spring

39

71629.0

Cone

40

71748.8

Plug

41

6921561

PLUG Was 71634.0 - A

42

71674.6

Plug

43

71664.7

Screw

44

6912568

PLUG

45

6912070

SUPPORT HEAD FILTER

46

81296.6

Valve

47

93222.8

Charge Pump Assembly

48

7022990

O-RING  Was 71761.1 - A

49

71765.2

O-ring

50

71766.0

Cover

51

71767.8

Screw

52

6662163

BOLT Was 97259.6 - A

53

71737.1

Seal-lock nut

54

71730.6

Nut

55

71729.8

Nut

56

71731.4

Snap Ring

57

71723.1

Spring

58

71727.2

Screw

59

71722.3

Screw

60

71721.5

Sleeve

61

6912067

SCREW Was 71706.6

62

97400.6

Valve Was 81418.6

63

81615.7

Block

64

97332.1

Gasket

65

71694.4

Washer
