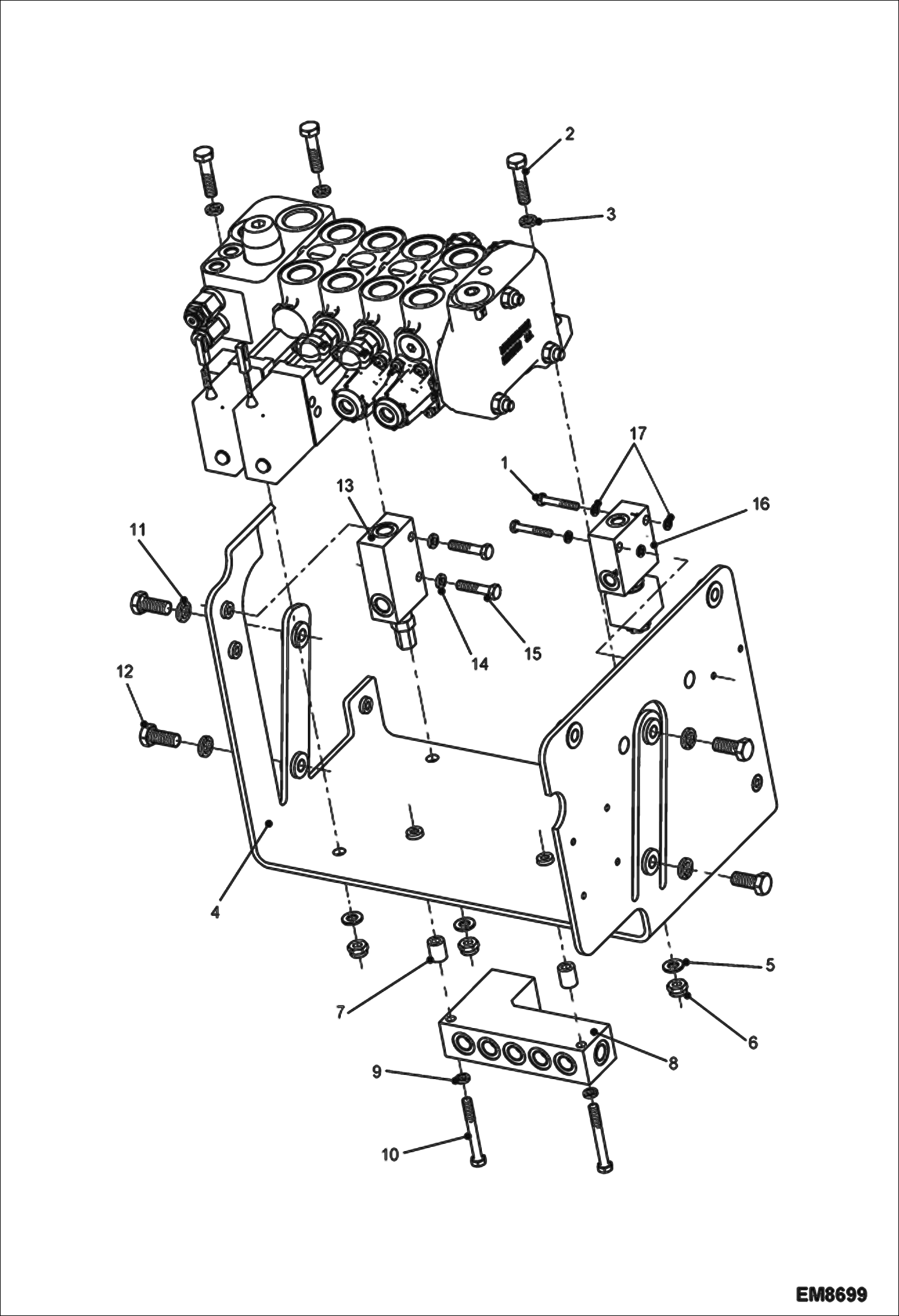

Запчасти Bobcat T2556 HYDRAULIC CONTROL VALVE FIXATION HYDRAULIC SYSTEM

1

000326-25M

SCREW

2

1CM1045

BOLT Was 10944.7 - A

3

7225260

WASHER Was 89516.9 - A

4

6911180

SUPPORT

5

000350-21R

WASHER Was 01698.0 - B

6

100345-09A

NUT

7

6910771

WASHER

8

6910660

HYD BLOCK

9

89519.3

Washer

10

01511.5

Screw

11

11689.7

Washer

12

01612.1

Screw

13

7168745

VALVE, SELF LEVELLING Was 98235.5 - A

14

89519.3

Washer

15

1CM840

BOLT Was 1CM-840 - D

16

6910208

VALVE 3/2 CE12V

17

94574.1

Washer
