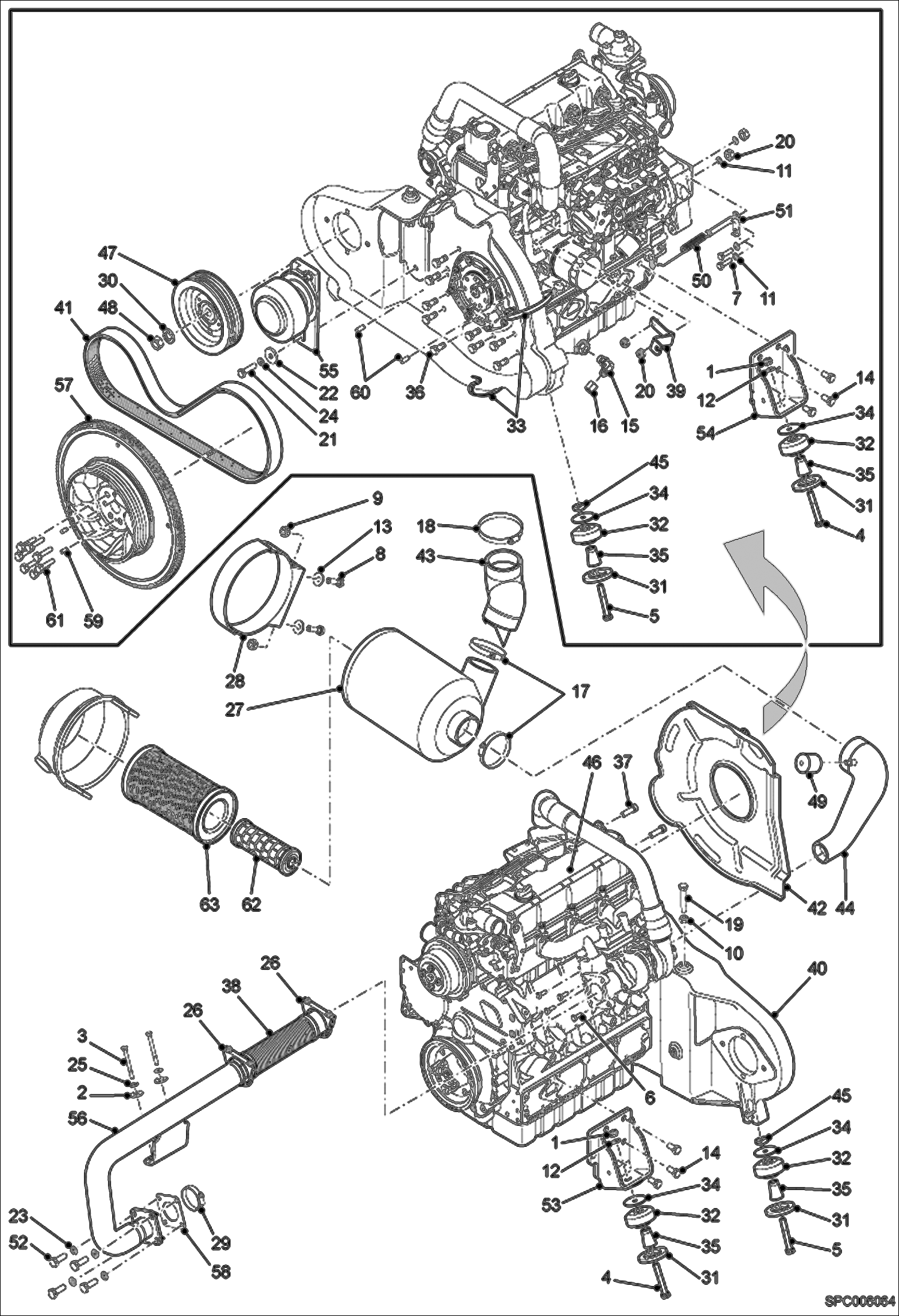

Запчасти Bobcat T2250 ENGINE INSTALLATION POWER UNIT

1

000345-96E

NUT

2

000350-20Q

WASHER

3

01512.3

SCREW

4

01532.1

SCREW

5

01533.9

SCREW

6

01578.4

Screw

7

4CM825

BOLT Was 01597.4 - B

8

01598.2

Screw

9

4DM8

NUT Was 01668.3 - B

10

01670.9

Nut

11

01697.2

Washer

12

01699.8

Washer

13

01718.6

Washer

14

006330-26W

SCREW

15

010370-58M

ELBOW UNION

16

011374-44C

CUP

17

35949.7

Clamp

18

38683.9

Collar

19

49439.3

Screw

20

01681.6

Nut Was 51851.4 - B

21

7CM1245

BOLT Was 54381.9 - A

22

78476.9

WASHER

23

7225260

WASHER Was 89516.9 - A

24

89517.7

Washer

25

89519.3

Washer

26

95783.7

Clamp

27

97746.2

Air Filter

28

97747.0

Collar

29

42HS30

CLAMP, HOSE Was 100369-80K - A

30

6576033

WASHER

31

6661787

WASHER

32

6668104

MOUNT, ENG

33

6701160

CLIP

34

6705106

WASHER

35

6715287

SPACER

36

6719828

BOLT

37

6925002

SCREW Was 38615.1 - B

38

6915352

EXHAUST HOSE flexible Was 94677.2 - B

39

6917157

SUPPORT

40

6920443

BELL HOUSING

41

6925914

BELT Was 6920444 - A

42

6920445

SHIELD

43

6920460

HOSE

44

6920461

HOSE

45

6920462

NUT

46

ENGINE See Illustration ENGINE & GASKET KITS/ EM8660

47

6921608

PULLEY

48

6921612

NUT

49

6922311

INDICATOR

50

6922618

SPRING

51

6922630

FASTENER

52

6923568

SCREW

53

6925278

ENGINE SUPPORT

54

6925281

ENGINE SUPPORT

55

IDLER ASSY NLA - Order #6933054 Was 6964810 - C

55

6933054

PULLEY IDLER ASSY See Illustration IDLER ASSY/ SPC006115

56

6965261

PIPE

57

7100859

FLYWHEEL ASSY

58

7102747

GASKET

59

14J3112

PIN

60

20JM1025

DOWEL PIN

61

6680747

BOLT, FLYWHEEL

62

6910726

FILTER, AIR INNER

63

6910725

FILTER, AIR OUTER
