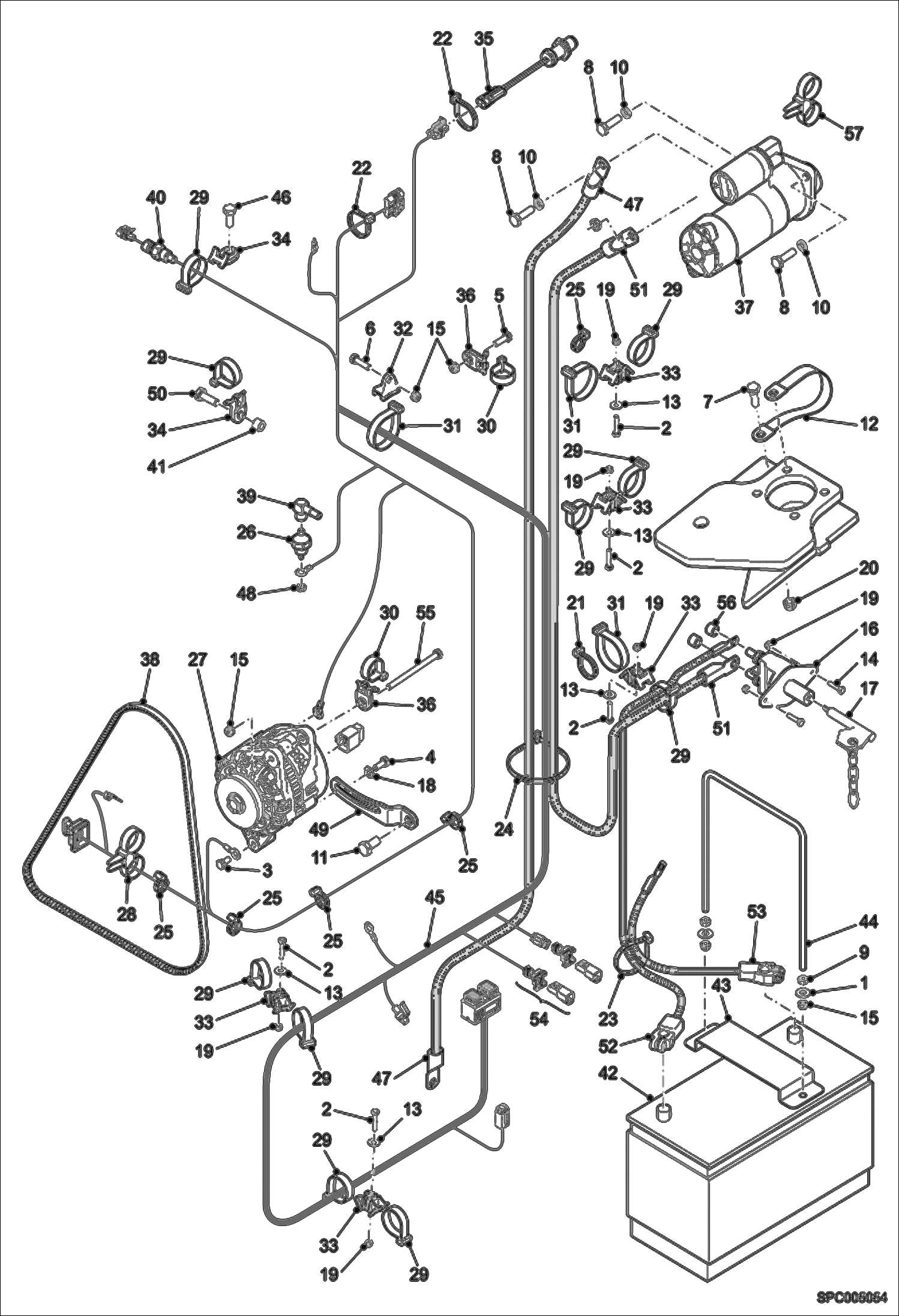

Запчасти Bobcat T2250 ELECTRICAL CIRCUIT (Engine) ELECTRICAL SYSTEM

1

000350-20Q

WASHER

2

01593.3

Screw

3

1CM816

BOLT Was 01595.8 - A

4

1CM820

BOLT Was 01596.6 - B

5

4CM825

BOLT Was 01597.4 - B

6

01598.2

Screw

7

01606.3

Screw

8

01607.1

Screw

9

4DM8

NUT Was 01668.3 - B

10

01720.2

Washer

11

006330-26W

SCREW

12

018472-83R

CABLE

13

29272.2

Washer

14

41821.0

Screw

15

53DM8

NUT Was 51851.4 - A

16

65764.3

Circuit Breaker W/Ref. 17

17

66181.9

CIRCUIT BREAKER KEY

18

96554.1

Washer

19

100345-06W

NUT

20

100345-09A

NUT

21

6624289

STRAP, TIE

22

6624289

STRAP, TIE

23

6624289

STRAP, TIE

24

6624289

STRAP, TIE

25

6624289

STRAP, TIE

26

6631010

SWITCH, PRESS OIL ENG

27

6678205

ALTERNATOR, 90 AMP

28

6678668

STRAP, DUAL TIE

29

6678669

STRAP

30

6678669

STRAP

31

6678669

STRAP

32

6678818

MOUNT

33

6678974

MOUNT

34

6679034

MOUNT

35

6684037

SENSOR

36

6684641

MOUNT

37

6685190

STARTER

38

6686655

BELT

39

6707040

ELBOW

40

6718414

SENDER, TEMP ENG

41

6910771

WASHER Was 6916722 - A

42

7160984

BATTERY Was 6665427 - B,D

42

6670251

BATTERY, DRY 530 AMP 530A

43

6919652

FIXING PLATE

44

6919653

ROD

45

6927891

HARNESS ENGINE Was 6920101 - B

46

6920212

SCREW

47

6920524

CABLE

48

12D8

NUT

49

6920627

SUPPORT

50

6923568

SCREW

51

7106692

BATTERY CABLE

52

7106693

CABLE

53

7106694

CABLE

54

6924040

HARNESS JUMPER

55

1CM8110

HEX CAP S Was 79109.5 - A

56

85837.3

Nut Cover

57

6915851

COLLAR
