Запчасти Bobcat T2250 ELECTRICAL CIRCUIT (Dashboard) ELECTRICAL SYSTEM

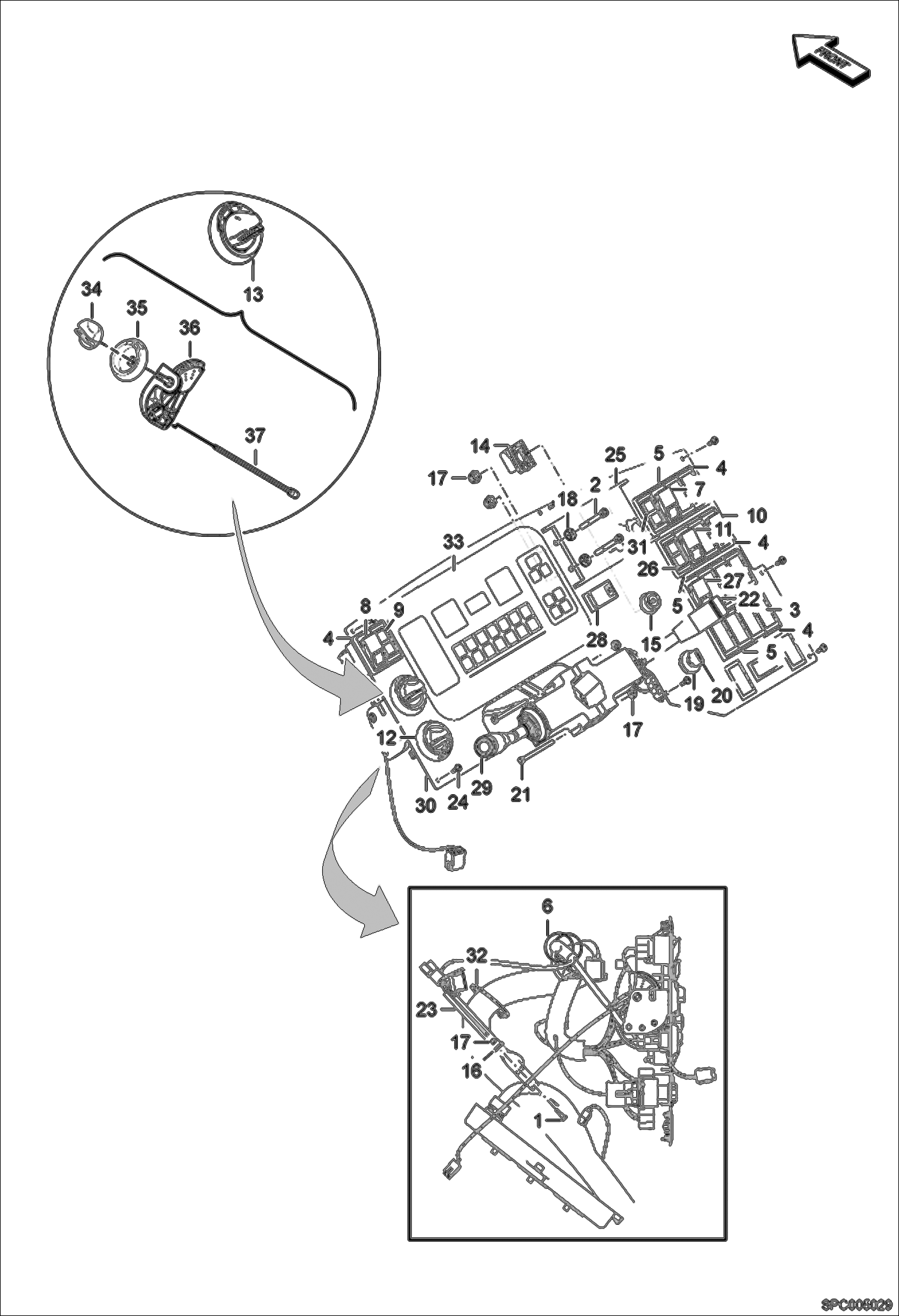

Схема запчастей Bobcat T2250 - ELECTRICAL CIRCUIT (Dashboard) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

01478.7

Screw

2

6925010

SCREW

3

65784.1

Blank Plug

4

80220.7

Bezel

5

80221.5

Bezel

6

7214998

STRAP, TIE Was 50917.4 - A

7

96590.5

Warning Switch

8

96593.9

Steering mode switch

9

96594.7

Steering mode indicator

10

96597.0

Fog light switch

11

96600.2

Switch, head lamp

12

96608.5

Fan Speed Switch

13

6926588

HEATING CONTROL includes cable - W/Ref. 34-37 Was 96609.3 - A

14

97885.8

Knob block

15

97886.6

Knob head

16

98180.3

Washer

17

100345-05V

NUT

18

01695.6

Washer

19

SWITCH, IGNITION NAP - Order 6693245 switch, 7000329 adapter & 6697965 harness Was 6679842 - A

19

6693245

SWITCH, IGN ignition - W/ 7009081 nut

19

7009081

NUT for 6693245 switch

19

7000328

ADAPTER, SWITCH IGN for 6693245 switch Was 7000329 - A

19

6697965

HARNESS for 6693245 switch

20

6693241

KEY 10 use W/ 6679842 switch & 6693245 switch Was 6709527 - A

21

88105.2

SCREW

22

6684560

SWITCH

23

SENSOR , INCHING NLA - Order 6934897 - Was 6909383 - A

24

6910505

SCREW

25

6924060

STABILITY INDICATOR Was 6913764 - A

26

6916853

LIGHT, INDICATOR PARK/HEAD

27

6916854

SWITCH

28

6916952

SWITCH, WASHER/WIPER WINDSCREEN

29

6679504

SWITCH Was 6917032 - C

30

6917358

PLATE, DASHBOARD

31

6919714

LIGHTING BRAKE

32

6919932

CLAMP

33

6933095

DISPLAY Was 7163311 - A

34

7012297

CONTROLLER

35

7012298

CAP

36

7012299

CONTROL BLOCK

37

CABLE NAP - Order Ref. 13 Was 7015535 - D

Выбрано товаров: 41
