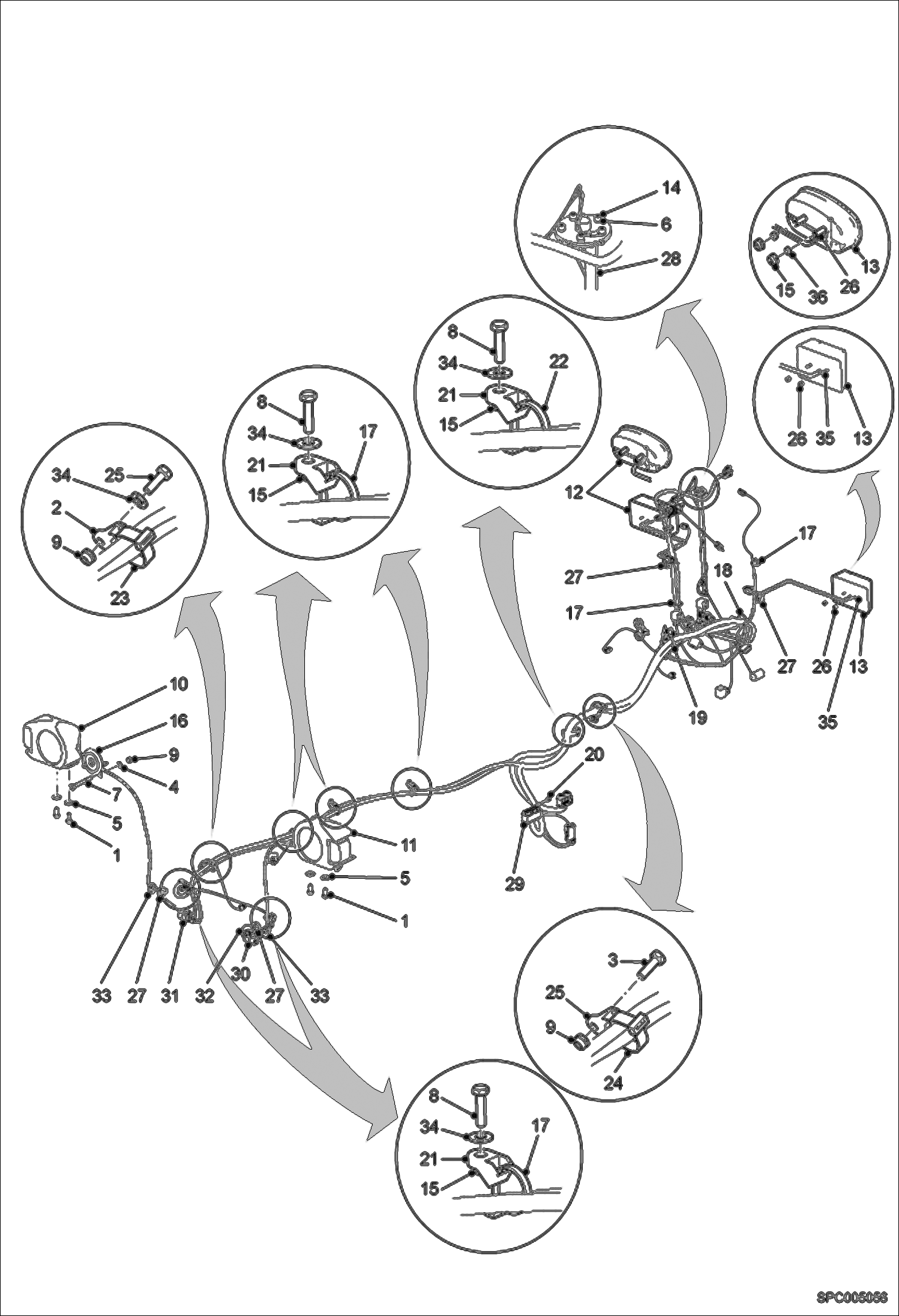

Запчасти Bobcat T2250 ELECTRICAL CIRCUIT (Main Frame) ELECTRICAL SYSTEM

1

1CM820

BOLT Was 01596.6 - B

2

4CM825

BOLT Was 01597.4 - B

3

01598.2

Screw

4

01697.2

Washer

5

01718.6

Washer

6

13415.5

Washer

7

33966.3

Screw

8

41821.0

Screw

9

01681.6

Nut Was 51851.4 - B

10

79533.6

Front Light Assembly, RH RH

11

79534.4

Front Light Assembly, LH LH

12

7225546

LIGHT, REAR RH Was 82265.0 - A

12

6923988

RH REAR LIGHT RH

12

97260.4

Glass

12

27089.2

Bulb 21W

12

6909955

BULB 21/5W

12

7022664

BULB, P21W 12V

12

7022665

BULB, R10W 12V

13

7225545

LIGHT, REAR LH Was 82266.8 - A

13

6923987

LH REAR LIGHT LH

13

97261.2

Glass

13

27089.2

Bulb 21W

13

6909955

BULB 21/5W

13

7022664

BULB, P21W 12V

13

7022665

BULB, R10W 12V

14

100329-01C

SCREW

15

100345-06W

NUT

16

100417-11D

HORN

17

6624289

STRAP, TIE

18

6624289

STRAP, TIE

19

6624289

STRAP, TIE

20

6624289

STRAP, TIE

21

6678667

MOUNT

22

6678668

STRAP, DUAL TIE

23

6678669

STRAP

24

6678669

STRAP

25

6678818

MOUNT

26

6910953

SPACER,JOYSTICK

26

6925297

SPACER

27

6921384

GROMMET

28

6918307

LEVEL TRANSMITTER, FUEL

29

6920151

HARNESS

29

6925252

HARNESS

30

7106298

HARNESS

30

6925251

HARNESS

31

7106301

HARNESS

32

7106302

HARNESS

32

6925253

HARNESS

33

6921384

GROMMET Was 6917959 - A

34

29272.2

Washer

35

1GM520

BOLT

36

01696.4

Washer
