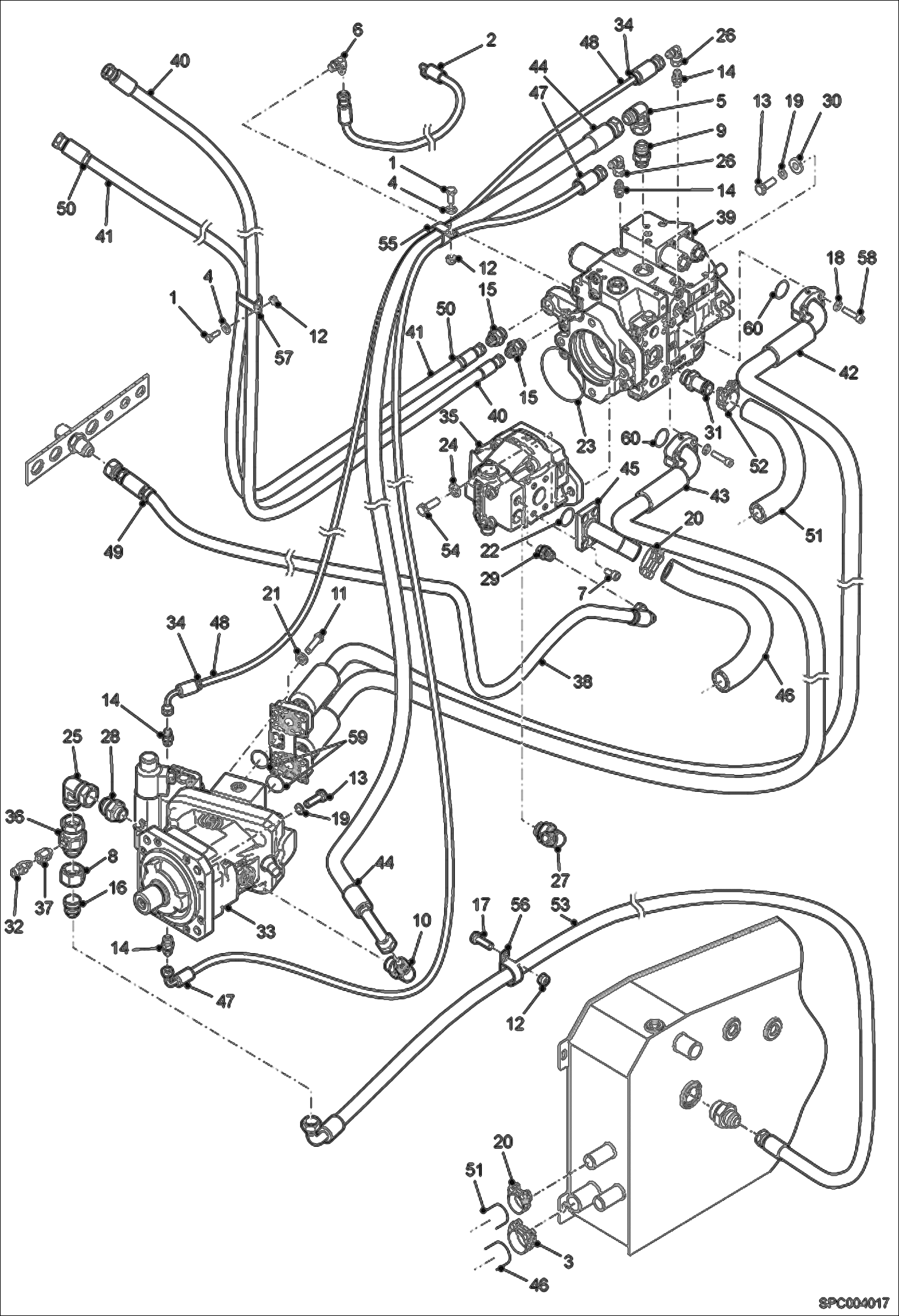

Запчасти Bobcat T2250 HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

4CM825

BOLT Was 01597.4 - B

2

6917191

HOSE Was 6908671 - D

3

6925635

CLAMP Was 008372-14Q - D

4

000350-02V

WASHER

5

008372-14Q

ELBOW

6

010370-38Q

UNION

7

10662.5

Screw

8

014345-15F

NUT

9

014375-62S

UNION

10

015370-19X

ELBOW UNION

11

28689.8

Screw

12

01681.6

Nut Was 51851.4 - B

13

54734.9

SCREW

14

67046.3

Adapter

15

69210.3

ADAPTER

16

84552.9

ADAPTER

17

01598.2

Screw

18

01698.0

Washer Was 89516.9 - D

19

89517.7

Washer

20

90207.2

CLAMP

21

29E7

WASHER Was 01699.8 - D

22

92637.8

O-ring

23

6925706

SEAL Was 100304-01K - B

24

38645.8

WASHER Was 01700.4 - D

25

100370-01J

ELBOW UNION

26

100370-29P

ELBOW PIECE

27

100370-31R

ELBOW PIECE

28

100375-13Q

UNION

29

100375-38S

UNION

30

100454-17G

WASHER

31

6715715

FITTING

32

6727869

SENDER,HYD TEMP

33

6916685

MOTOR See Illustration HYDROSTATIC MOTOR ASSY/ SPC004019

34

IDENTIFICATION, WHITE NLA Was 6917754 - D

35

6926230

PUMP See Illustration HYDRAULIC PUMP ASSY/ SPC004020 Was 6920481 - A

36

6920614

TEE UNION

37

6920615

ADAPTOR

38

6920960

HOSE

39

6921182

HYDRAULIC TRANSMISSION PUMP See Illustration HYDROSTATIC PUMP ASSY/ SPC004018

40

6921187

HOSE

41

6921187

HOSE

42

6921189

HOSE W/Ref. 59-60

43

6921189

HOSE W/Ref. 59-60

44

6921193

HOSE

45

6921232

FLANGE

46

6925639

SHAPED HOSE Was 6921239 - D

47

6922015

HOSE

48

6922016

HOSE

49

IDENTIFICATION, RED NLA Was 6922046 - D

50

IDENTIFICATION, BLUE NLA Was 6922048 - D

51

6925640

SHAPED HOSE Was 6922402 - D

52

6922440

COLLAR

53

6923138

HOSE

54

17C820

BOLT Was 26160.2 - D

55

30H60

CLIP

56

30H60

CLIP

57

31H45

CLAMP

58

69G624

SCREW

59

7009211

O-RING

60

7009212

O-RING
