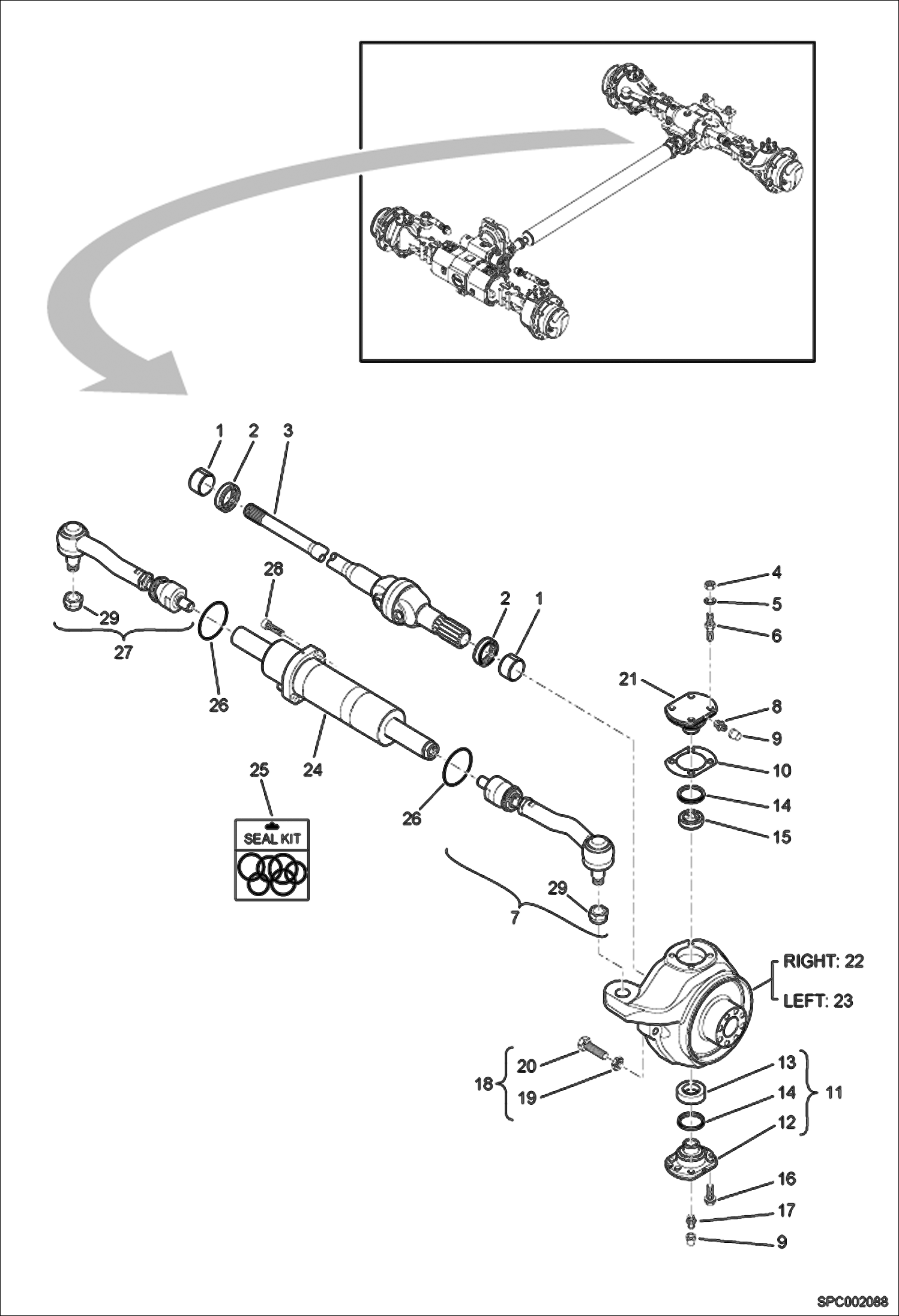

Запчасти Bobcat T2250 STEERING - REAR AXLE DRIVE SYSTEM

1

6912679

BUSH

2

6912708

SEAL

3

7010570

BLOCK JOINT Was 6912701 - B, D

4

6912684

NUT

5

6912736

WASHER

6

7010888

STUD Was 6912696 - B

7

6921030

ARTICULATED TIE ROD W/Ref. 29

8

6912939

LUBRICATOR

9

6912629

PLUG

10

6912646

SHIM 0,15 mm

10

6912647

SHIM 0,20 mm

10

6912648

SHIM 0,50 mm

11

6912729

PIVOT W/Ref. 12-14

12

PIN, PIVOT NAP - Order Ref. 11

13

6912899

ARTICULATION

14

6912707

SEAL

15

6921515

BUSHING

16

6912771

SCREW

17

6912700

LUBRICATOR Was 6912942 - B

18

6912774

SCREW Ref. 19-20

19

6912685

NUT

20

6912773

SCREW

21

6912940

PIVOT

22

6921023

STEERING CASE RH

23

6921024

STEERING CASE LH

24

CYLINDER NLA - serial number listed is vendor axle serial number: S/N M-HUN-108428 & below Was 6921028 - A

24

7011132

CYLINDER serial number listed is vendor axle serial number: S/N M-HUN-108429 & above

25

6921031

SET OF SEALS FOR CYLINDER S/N M-HUN-108428 & below

25

7011924

KIT, SEAL S/N M-HUN-108429 & above

26

6912613

O-RING

27

6921029

ARTICULATED TIE ROD W/Ref. 29

28

6912765

SCREW

29

100345-21N

NUT
