Запчасти Bobcat T2250 END BOOM ASSY MAIN FRAME

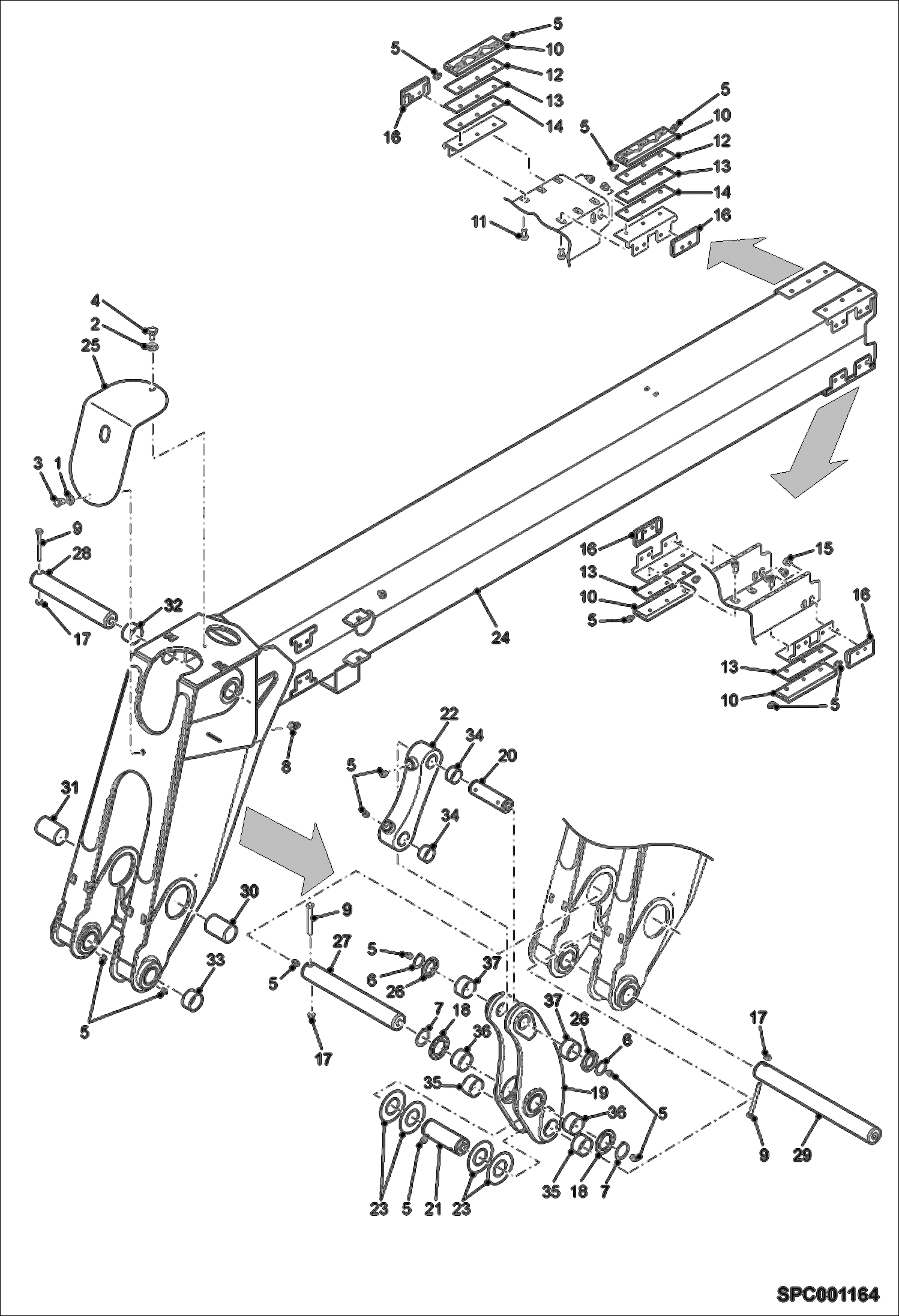

Схема запчастей Bobcat T2250 - END BOOM ASSY MAIN FRAME

Артикул

Название

Примечание

Количество

1

000350-02V

WASHER

2

000350-03W

WASHER

3

1CM816

BOLT Was 01595.8 - A

4

01603.0

Screw

5

01775.6

Grease Nipple

6

06734.8

Retaining Ring

7

5JM50

CIRCLIPS Was 31825.3 - B

8

44334.1

Nut

9

7CM10100

SCREW HEX Was 65397.2 - A

10

95501.3

Shoe

11

7214544

SCREW Was 95502.1 - A

12

98300.7

Shim 1 mm

13

98301.5

Shim 2 mm

14

98302.3

Shim 3 mm

15

7214543

SCREW Was 98303.1 - A

16

6922999

PLASTIC WEAR PAT 11 mm

16

6923000

PLASTIC WEAR PAT 12 mm

16

6923001

PLASTIC WEAR PAT 13 mm Was 98342.9 - B

16

6923002

PLASTIC WEAR PAT 14 mm

16

6923003

PLASTIC WEAR PAT 15 mm

17

100345-09A

NUT

18

6913647

WASHER

19

6920449

PIVOT W/Ref. 35-37

20

6920452

SPINDLE

21

6920453

SPINDLE

22

6920652

ROD W/Ref. 34

23

6923059

SHIM

24

6964908

TELESCOPIC ARM

25

6964923

HOUSING

26

6964930

WASHER

27

6934769

SPINDLE Was 6964974 - A

28

6934768

SPINDLE Was 6964976 - A

29

6964977

SPINDLE

30

6934764

BUSHING Was 6964916 - A

31

6934765

BUSHING Was 6964915 - A

32

6934767

BUSHING Was 6964922 - A

33

6909439

BUSHING

34

6918081

BUSH

35

72347.8

Bushing

36

70811.5

Bush

37

6920446

BUSH

Выбрано товаров: 41
