Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

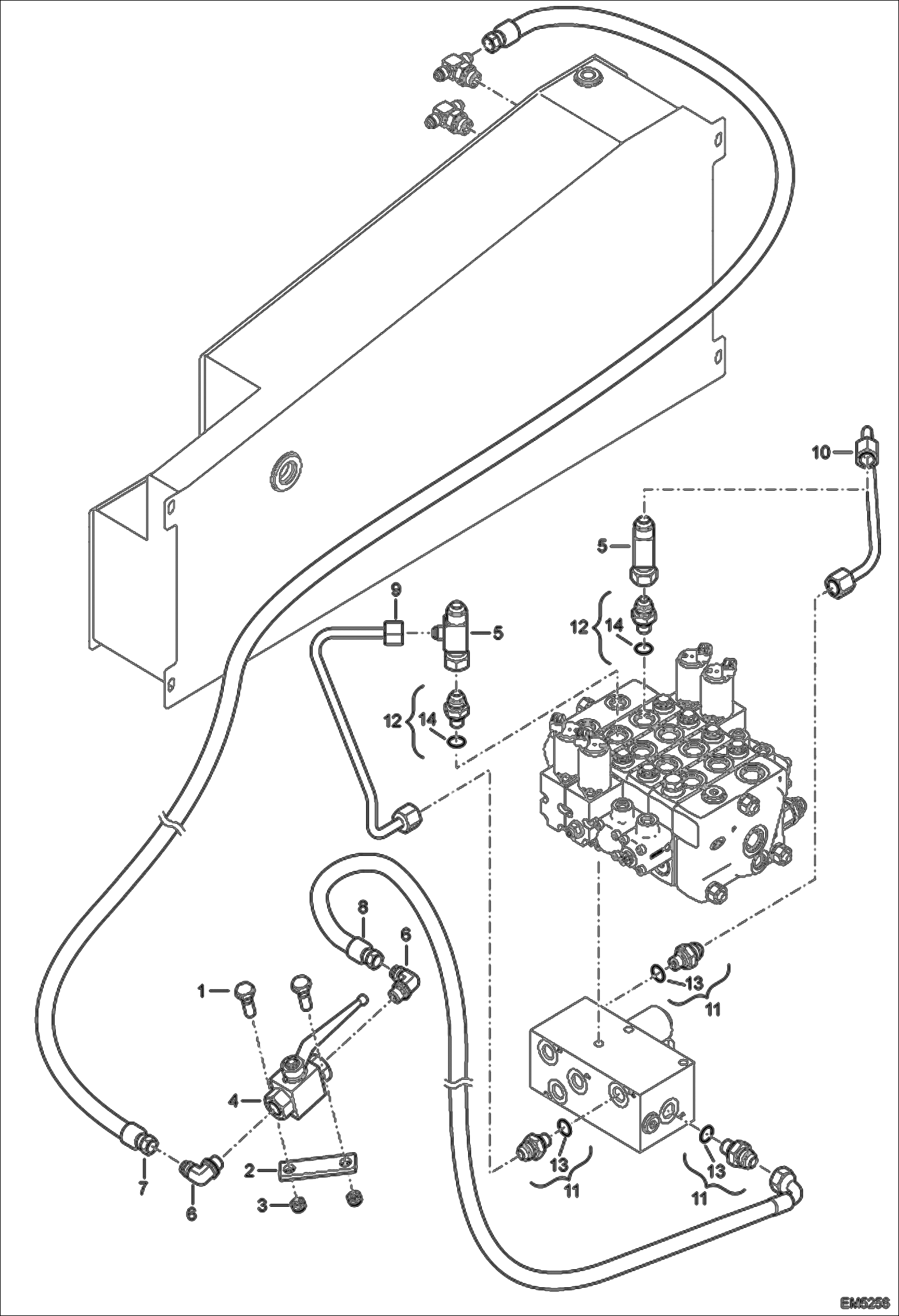

Схема запчастей Bobcat T2250 - HYDRAULIC CIRCUITRY (Unlock Valve) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

01522.2

Screw

2

77014.9

Plate

3

100345-09A

NUT

4

100378-03F

SHUTOFF auxiliary pressure release

5

6535460

TEE

6

6918652

ELBOW UNION

7

6920566

HOSE

8

70865.1

Hose Was 90265.0 - B

9

6927263

PIPE

10

6927264

PIPE

11

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13

12

15KB1008

FITTING, HYD CONNECTOR W/Ref. 14

13

79K6

O RING 10

14

79K8

O RING 10

Выбрано товаров: 14
