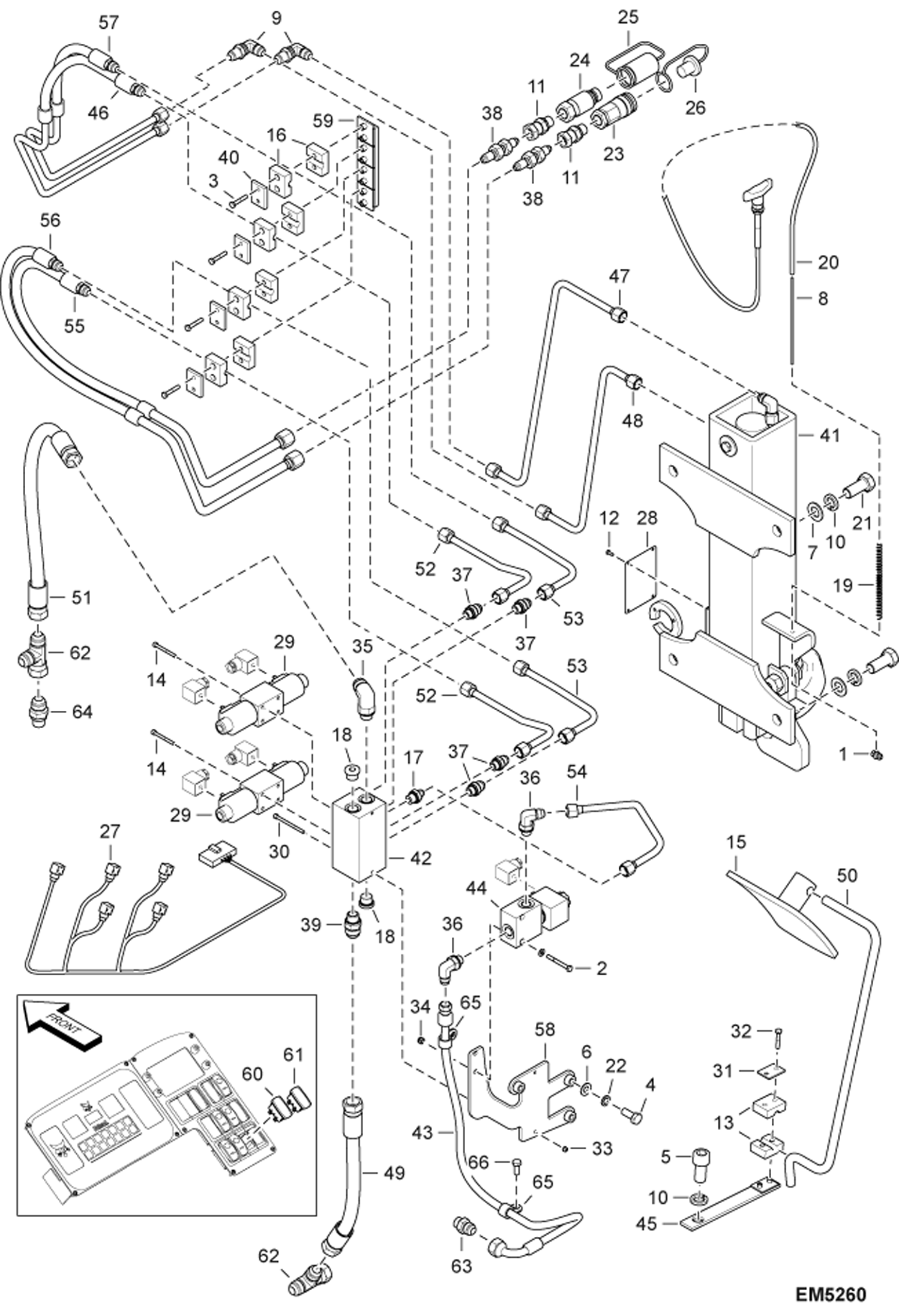

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Rear Hydraulic Hook & Auxiliary Hydraulics) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

1

7231142

STOP, CABLE Was 000368-80M - A

2

001338-08T

SCREW

3

01593.3

Screw

4

01612.1

Screw

5

01620.4

Screw

6

01699.8

Washer

7

01703.8

RONDELLE

8

7231579

STOP Was 009368-06S - A

9

010370-87T

ELBOW PIECE

10

15323.9

Washer

11

7225156

FITTING, HYD Was 022375-06W - A

12

43824.2

Rivet

13

7179623

SLEEVE Was 61358.8 - A

14

62153.2

SCREW

15

63860.1

Mirror

16

70687.9

COLLAR

17

77013.1

Adapter

18

78743.2

Drain plug

19

79285.3

Spring

20

84468.8

Cable

21

84630.3

Screw

22

89517.7

Washer

23

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

24

7225159

COUPLER, HYD Was 95994.0 - A

25

7225160

CAP, COUPLER Was 96513.7 - A

26

7225161

CAP, COUPLER Was 96514.5 - A

27

96589.7

Wire harness

28

PLATE, SERIAL NUMBER NAP Was 98167.0 - D

29

98360.1

Union

30

98897.2

VIS

31

100228-57K

COVER

32

100338-23F

SCREW

33

100345-05V

NUT

34

100345-06W

NUT

35

100370-05N

ELBOW UNION

36

100370-18C

ELBOW PIECE

37

100375-38S

UNION

38

100375-52H

UNION

39

100375-67Z

UNION

40

101228-70U

PLATE, PROTECTION

41

6910389

HOOK ASMBLY

42

6911079

HYDRAULIC BLOCK

43

6911143

HOSE

44

6911845

SOLENOID 2-2

45

6918252

SUPPORT

46

6920365

HOSE - PIPE

47

6920367

PIPE

48

6920368

PIPE

49

6920374

HOSE

50

6921672

PIPE, HYDRAULIC

51

6923430

HOSE

52

6926447

TUBELINE, HYD

53

6926448

TUBELINE, HYD

54

6926451

TUBELINE, HYD

55

6926453

FLEXIBLE MIXTE

56

6926454

FLEXIBLE MIXTE

57

6926455

HOSE, HYD

58

6926475

HOLDER, REAR OPTION

59

6926476

BRACKET, CLAMP

60

96598.8

Switch (proportional)

60

6927721

SWITCH, HYD HOOK

61

96599.6

Rear Option Switch

61

6927725

SWITCH, REAR HYD

62

13K8

TEE

63

15KB0606

FITTING, HYD CONNECTOR

63

79K6

O RING 10

64

15KB1210

FITTING, HYD CONNECTOR

64

79K10

O RING 10

65

30H31

CLAMP 10

66

1CM816

BOLT Was 01595.8 - A
