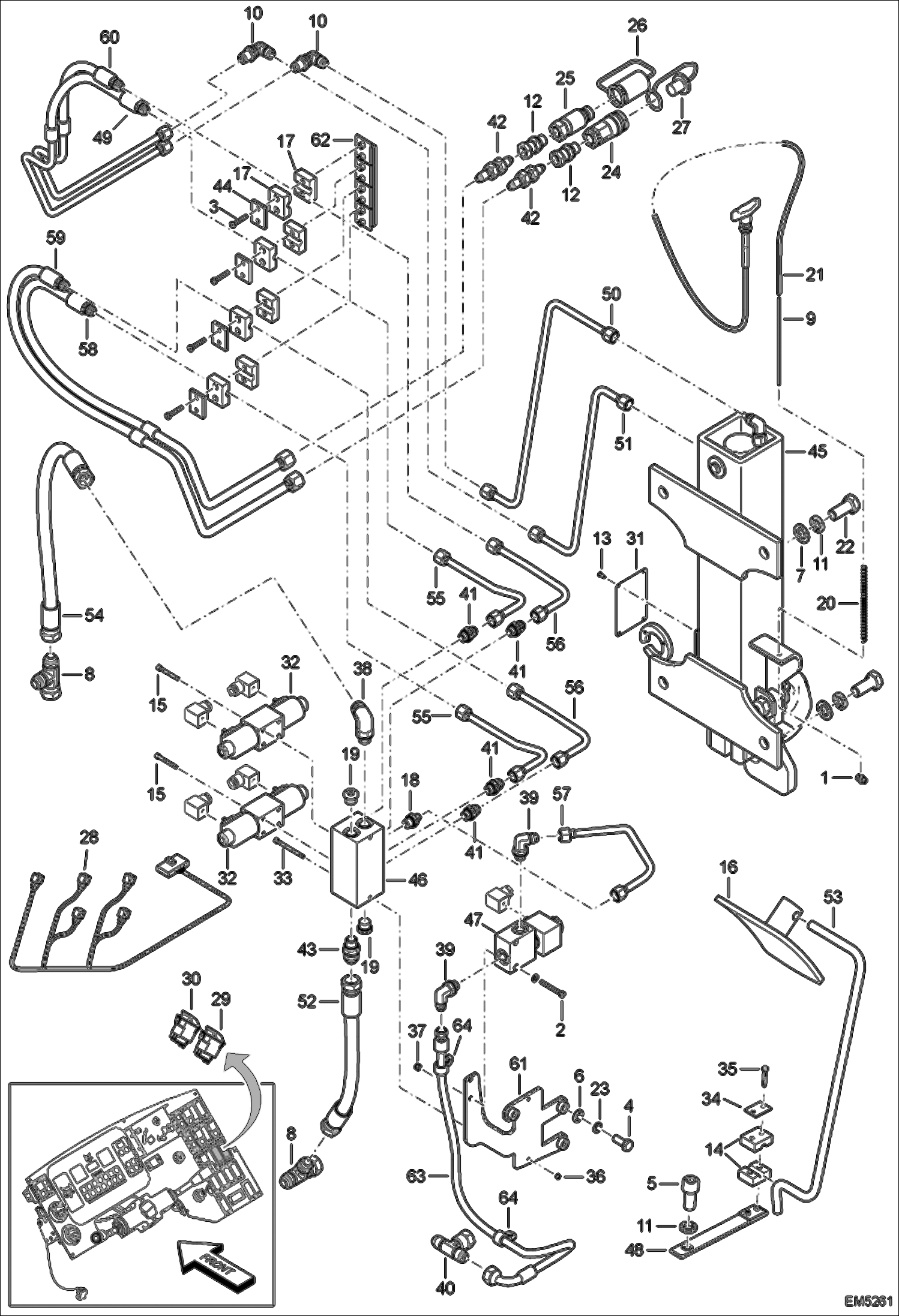

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Rear Hydraulic Hook & Auxiliary Hydraulics) (S/N AC1911001 - 11251) ACCESSORIES & OPTIONS

1

7231142

STOP, CABLE Was 000368-80M - A

2

001338-08T

SCREW

3

01593.3

Screw

4

01612.1

Screw

5

01620.4

Screw

6

01699.8

Washer

7

01703.8

RONDELLE

8

008372-34M

UNION

9

7231579

STOP Was 009368-06S - A

10

010370-87T

ELBOW PIECE

11

15323.9

Washer

12

7225156

FITTING, HYD Was 022375-06W - A

13

43824.2

Rivet

14

7179623

SLEEVE Was 61358.8 - A

15

62153.2

SCREW

16

63860.1

Mirror

17

70687.9

COLLAR

18

77013.1

Adapter

19

78743.2

Drain plug

20

79285.3

Spring

21

84468.8

Cable

22

84630.3

Screw

23

89517.7

Washer

24

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

25

7225159

COUPLER, HYD Was 95994.0 - A

26

7225160

CAP, COUPLER Was 96513.7 - A

27

7225161

CAP, COUPLER Was 96514.5 - A

28

96589.7

Wire harness

29

96598.8

Switch (proportional)

30

96599.6

Rear Option Switch

31

PLATE, SERIAL NUMBER NAP Was 98167.0 - D

32

98360.1

Union

33

98897.2

VIS

34

100228-57K

COVER

35

100338-23F

SCREW

36

100345-05V

NUT

37

100345-06W

NUT

38

100370-05N

ELBOW UNION

39

100370-18C

ELBOW PIECE

40

100372-23A

UNION

41

100375-38S

UNION

42

100375-52H

UNION

43

100375-67Z

UNION

44

101228-70U

PLATE, PROTECTION

45

6910389

HOOK ASMBLY

46

6911079

HYDRAULIC BLOCK

47

6911845

SOLENOID 2-2

48

6918252

SUPPORT

49

6920365

HOSE - PIPE

50

6920367

PIPE

51

6920368

PIPE

52

6920374

HOSE

53

6921672

PIPE, HYDRAULIC

54

6923430

HOSE

55

6926447

TUBELINE, HYD

56

6926448

TUBELINE, HYD

57

6926451

TUBELINE, HYD

58

6926453

FLEXIBLE MIXTE

59

6926454

FLEXIBLE MIXTE

60

6926455

HOSE, HYD

61

6926475

HOLDER, REAR OPTION

62

6926476

BRACKET, CLAMP

63

6926577

HOSE, HYD

64

30H60

CLIP
