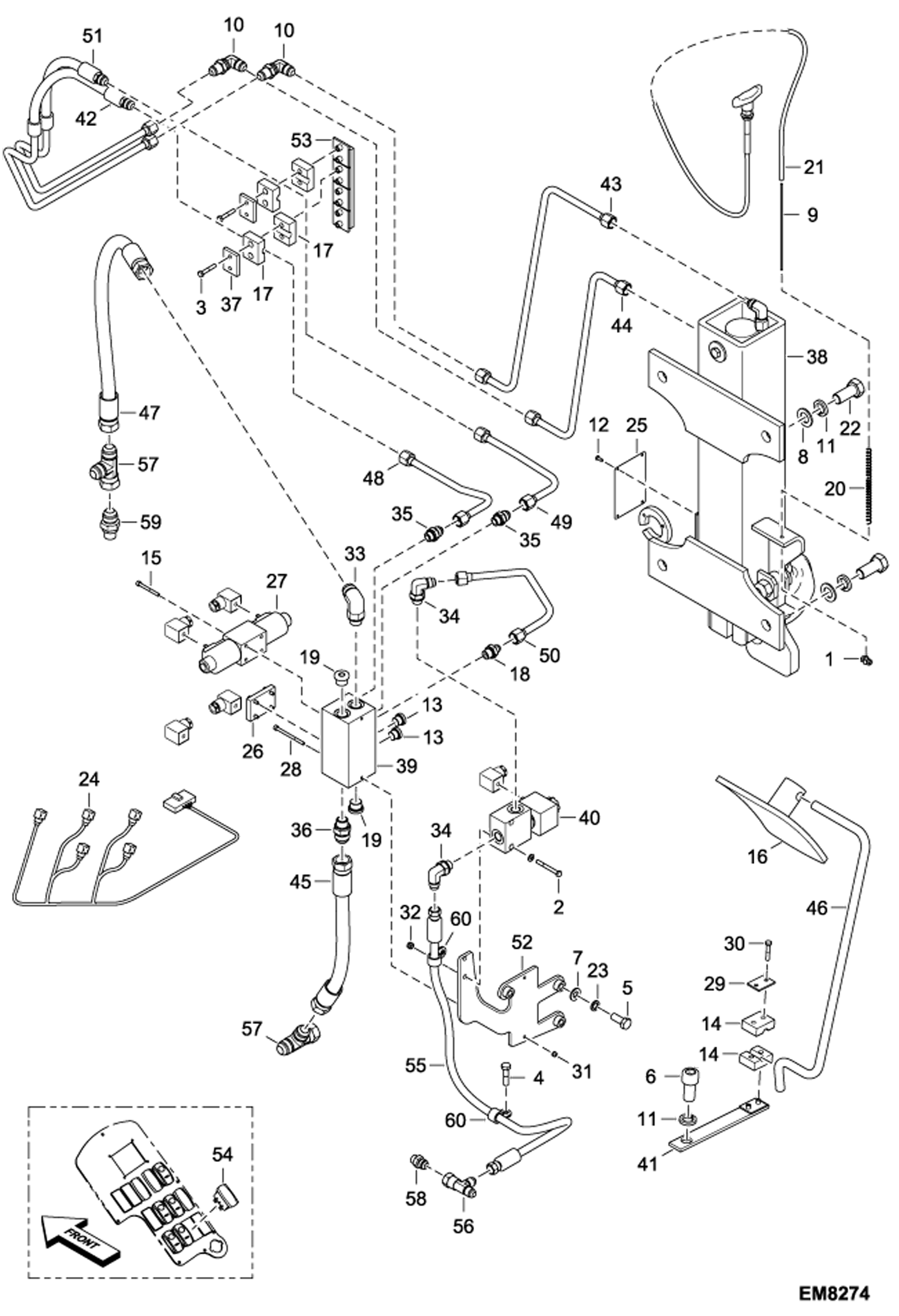

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Rear Hydraulic Hook) (S/N AC1915000 & Above) ACCESSORIES & OPTIONS

1

7231142

STOP, CABLE Was 7231142 - A

2

001338-08T

SCREW

3

01593.3

Screw

4

1CM816

BOLT Was 01595.8 - A

5

01612.1

Screw

6

01620.4

Screw

7

01699.8

Washer

8

01703.8

RONDELLE

9

7231579

STOP Was 009368-06S - A

10

010370-87T

ELBOW PIECE

11

15323.9

Washer

12

43824.2

Rivet

13

56029.2

Plug

14

7179623

SLEEVE Was 61358.8 - A

15

62153.2

SCREW

16

63860.1

Mirror

17

70687.9

COLLAR

18

77013.1

Adapter

19

78743.2

Drain plug

20

79285.3

Spring

21

84468.8

Cable

22

84630.3

Screw

23

89517.7

Washer

24

96589.7

Wire harness

25

PLATE, CE NAP

26

98353.6

Plate

27

98360.1

Union

28

98897.2

VIS

29

100228-57K

COVER

30

100338-23F

SCREW

31

100345-05V

NUT

32

100345-06W

NUT

33

100370-05N

ELBOW UNION

34

100370-18C

ELBOW PIECE

35

100375-38S

UNION

36

100375-67Z

UNION

37

101228-70U

PLATE, PROTECTION

38

6910389

HOOK ASMBLY

39

6911079

HYDRAULIC BLOCK

40

6911845

SOLENOID 2-2

41

6918252

SUPPORT

42

6920365

HOSE - PIPE

43

6920367

PIPE

44

6920368

PIPE

45

6920374

HOSE

46

6921672

PIPE, HYDRAULIC

47

6923430

HOSE

48

6926447

TUBELINE, HYD

49

6926448

TUBELINE, HYD

50

6926451

TUBELINE, HYD

51

6926455

HOSE, HYD

52

6926475

HOLDER, REAR OPTION

53

6926476

BRACKET, CLAMP

54

6927721

SWITCH, HYD HOOK

55

6933600

HOSE, HYD

56

13K5

TEE

57

13K8

TEE

58

15KB0606

FITTING, HYD CONNECTOR

58

79K6

O RING 10

59

15KB1210

FITTING, HYD CONNECTOR

59

79K10

O RING 10

60

30H31

CLAMP 10
