Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Rear Hydraulic Hook) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

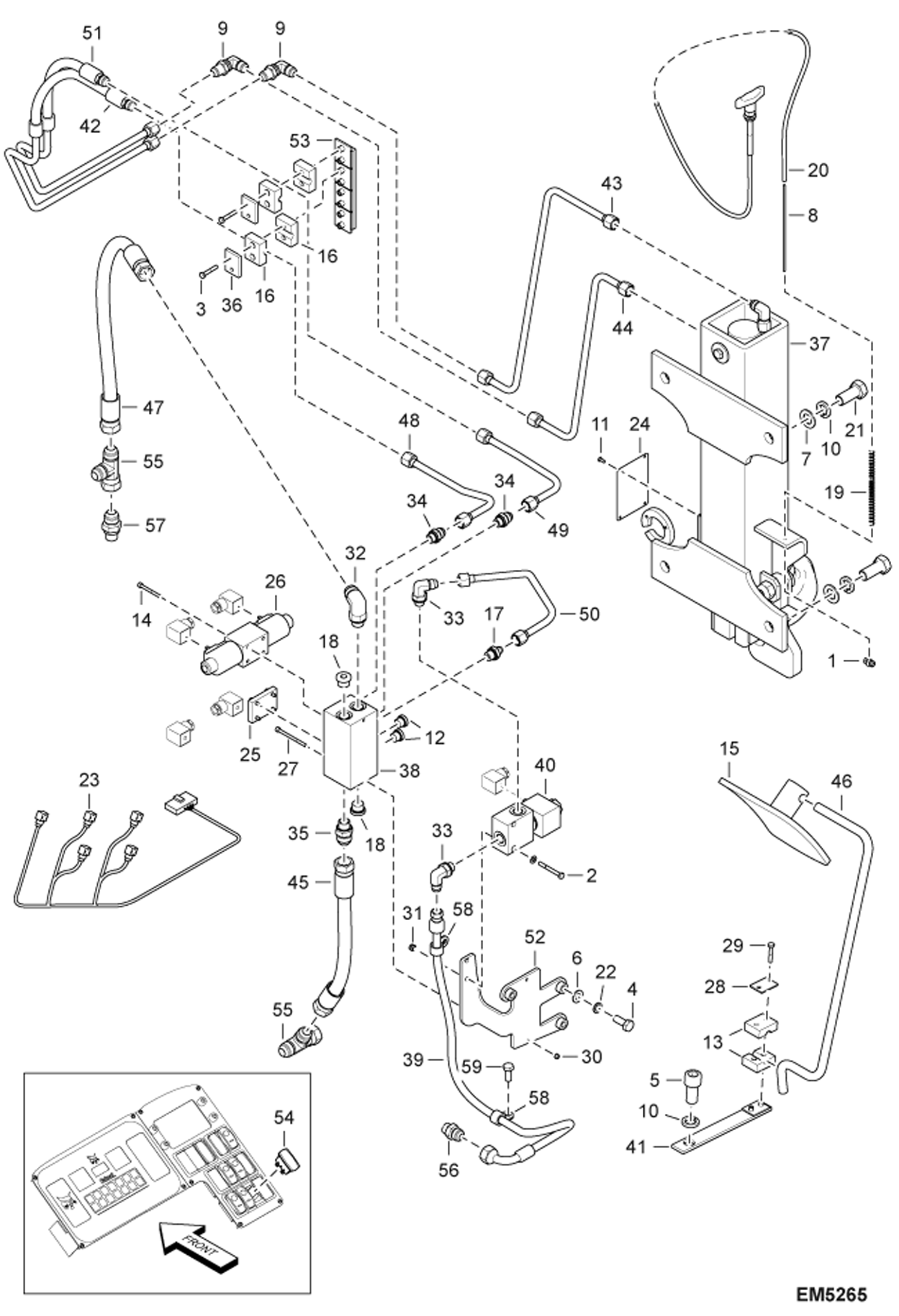

Схема запчастей Bobcat T2250 - HYDRAULIC CIRCUITRY (Rear Hydraulic Hook) (S/N AC1911252 - 14999) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7231142

STOP, CABLE Was 000368-80M - A

2

001338-08T

SCREW

3

01593.3

Screw

4

01612.1

Screw

5

01620.4

Screw

6

01699.8

Washer

7

01703.8

RONDELLE

8

7231579

STOP Was 009368-06S - A

9

010370-87T

ELBOW PIECE

10

15323.9

Washer

11

43824.2

Rivet

12

56029.2

Plug

13

7179623

SLEEVE Was 61358.8 - A

14

62153.2

SCREW

15

63860.1

Mirror

16

70687.9

COLLAR

17

77013.1

Adapter

18

78743.2

Drain plug

19

79285.3

Spring

20

84468.8

Cable

21

84630.3

Screw

22

89517.7

Washer

23

96589.7

Wire harness

24

PLATE, SERIAL NUMBER NAP Was 98167.0 - D

25

98353.6

Plate

26

98360.1

Union

27

98897.2

VIS

28

100228-57K

COVER

29

100338-23F

SCREW

30

100345-05V

NUT

31

100345-06W

NUT

32

100370-05N

ELBOW UNION

33

100370-18C

ELBOW PIECE

34

100375-38S

UNION

35

100375-67Z

UNION

36

101228-70U

PLATE, PROTECTION

37

6910389

HOOK ASMBLY

38

6911079

HYDRAULIC BLOCK

39

6911143

HOSE

40

6911845

SOLENOID 2-2

41

6918252

SUPPORT

42

6920365

HOSE - PIPE

43

6920367

PIPE

44

6920368

PIPE

45

6920374

HOSE

46

6921672

PIPE, HYDRAULIC

47

6923430

HOSE

48

6926447

TUBELINE, HYD

49

6926448

TUBELINE, HYD

50

6926451

TUBELINE, HYD

51

6926455

HOSE, HYD

52

6926475

HOLDER, REAR OPTION

53

6926476

BRACKET, CLAMP

54

96598.8

Switch (proportional)

54

6927721

SWITCH, HYD HOOK

55

13K8

TEE

56

15KB0606

FITTING, HYD CONNECTOR

56

79K6

O RING 10

57

15KB1210

FITTING, HYD CONNECTOR

57

79K10

O RING 10

58

30H31

CLAMP 10

59

1CM816

BOLT Was 01595.8 - A

Выбрано товаров: 62
