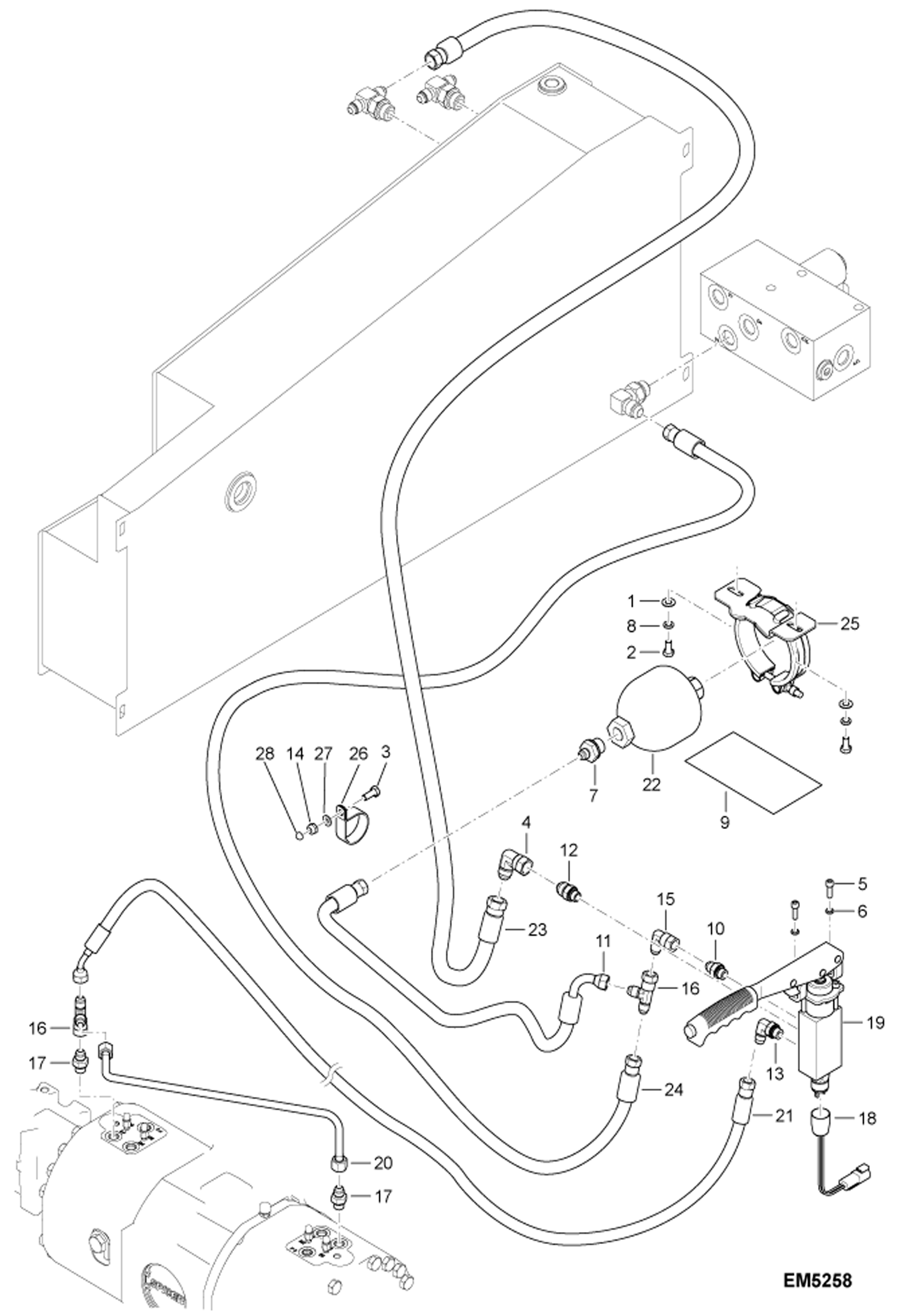

Запчасти Bobcat T2250 HYDRAULIC CIRCUITRY (Parking Brake W/Accumulator) (S/N AC1911252 & Above) ACCESSORIES & OPTIONS

1

000350-02V

WASHER

2

1CM816

BOLT Was 01595.8 - A

3

1CM820

BOLT Was 01596.6 - B

4

008372-01B

ELBOW PIECE

5

10167.5

Screw

6

13416.3

Washer

7

77912.4

Adapter

8

89519.3

Washer

9

89758.7

Decal

10

90289.0

Union

11

92126.2

Hose

12

96567.3

Union

13

96575.6

ELBOW

14

53DM8

NUT Was 51851.4 - A

15

100370-29P

ELBOW PIECE

16

100372-06G

UNION

17

90289.0

Union Was 100375-17U - B

18

6910557

DEUTSCH CONNECTOR

19

6916931

HAND BRAKE CONTROL

20

6920559

HYDRAULIC PIPE

21

6920570

HOSE

22

6921150

ACCUMULATOR

23

6921253

HOSE

24

6921414

HOSE

25

7225163

CLAMP Was 6923783 - A

26

30H84

CLAMP Was 30H60 - A

27

000350-20Q

WASHER

28

96956.8

Cap
