Запчасти Bobcat T2250 LOWER GASKET KIT POWER UNIT

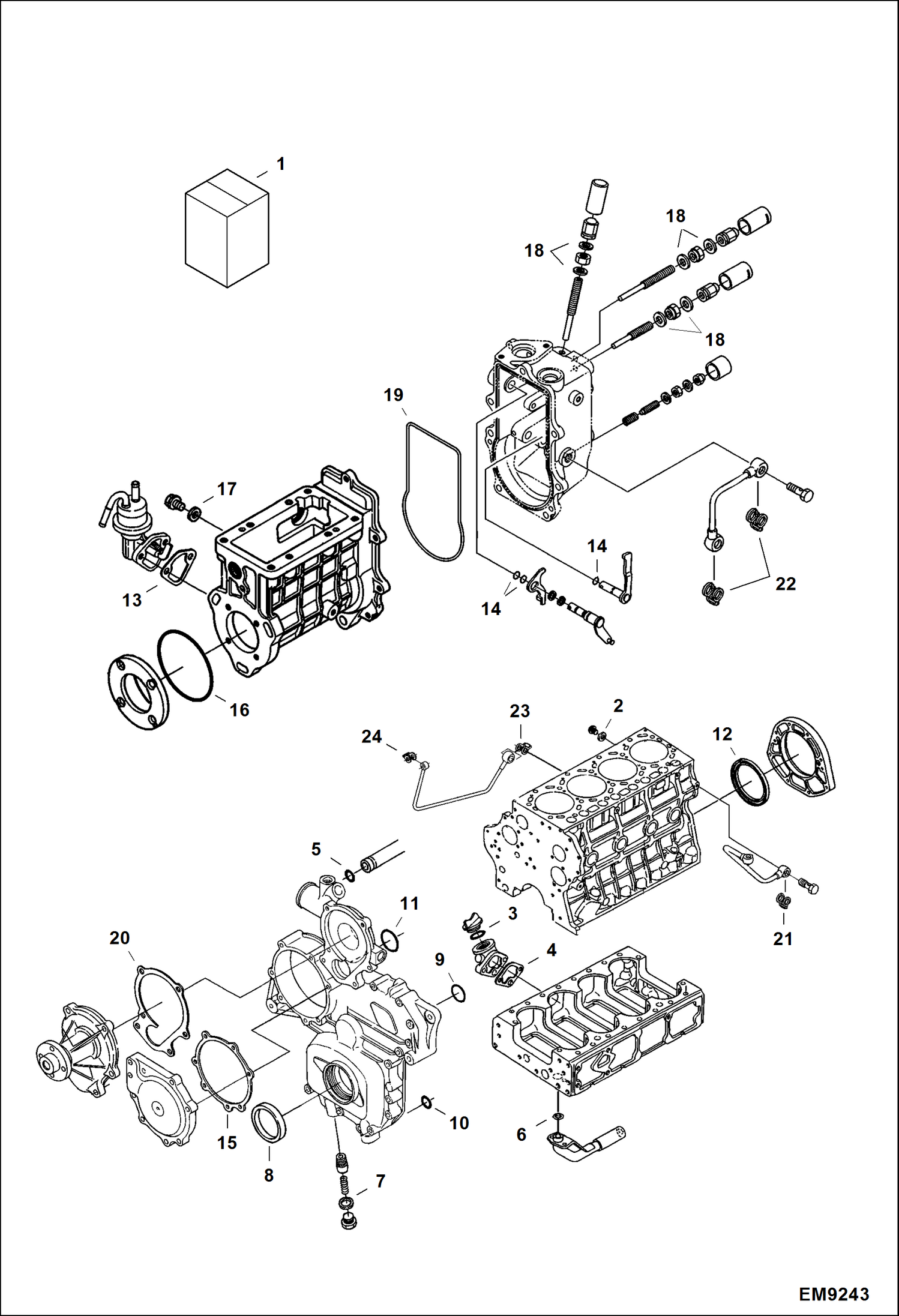

Схема запчастей Bobcat T2250 - LOWER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

6698579

KIT, GASKET ENG LOWER Ref. 2-22 - Also Order Ref. 23 & 24

2

6652751

GASKET See Illustration PISTON & CRANKSHAFT/ EM9236

3

6684782

O-RING See Illustration CRANKCASE & OIL PAN/ EM9228

4

6685923

GASKET See Illustration CRANKCASE & OIL PAN/ EM9228

5

6685971

O-RING See Illustration CRANKCASE & OIL PAN/ EM9228

6

6680661

O-RING See Illustration CRANKCASE & OIL PAN/ EM9228

7

6670347

GASKET See Illustration FRONT COVER/ EM9231

8

6680680

SEAL See Illustration FRONT COVER/ EM9231

9

6680681

O-RING See Illustration FRONT COVER/ EM9231

10

6680682

O-RING See Illustration FRONT COVER/ EM9231

11

6680855

O-RING See Illustration FRONT COVER/ EM9231

12

6680705

SEAL See Illustration FRONT COVER/ EM9231

13

7010133

GASKET, PUMP FUEL See Illustration FUEL INJECTION SYSTEM/ EM9244 Was 6670782 - B

14

6683023

O-RING See Illustration GOVERNOR/ EM9233

15

6685948

GASKET See Illustration FUEL INJECTION SYSTEM/ EM9244

16

6698539

GASKET, PUMP INJ See Illustration FUEL INJECTION SYSTEM/ EM9244

17

3974095

MET-GASK See Illustration FUEL INJECTION PUMP/ EM9232

18

3974972

GASKET See Illustration GOVERNOR/ EM9237

19

6680829

GASKET See Illustration FUEL INJECTION PUMP/ EM9232

20

6680853

GASKET See Illustration WATER PUMP & THERMOSTAT/ EM9238

21

6689331

GASKET See Illustration TURBOCHARGER/ EM9240

22

7000642

WASHER, SEALING COPPER See Illustration GOVERNOR/ EM9233 Was 6685962 - B

23

7000642

WASHER, SEALING COPPER See Illustration FUEL INJECTION SYSTEM/ EM9244 not in kit

24

6685498

GASKET See Illustration FUEL INJECTION SYSTEM/ EM9244 not in kit

Выбрано товаров: 24
