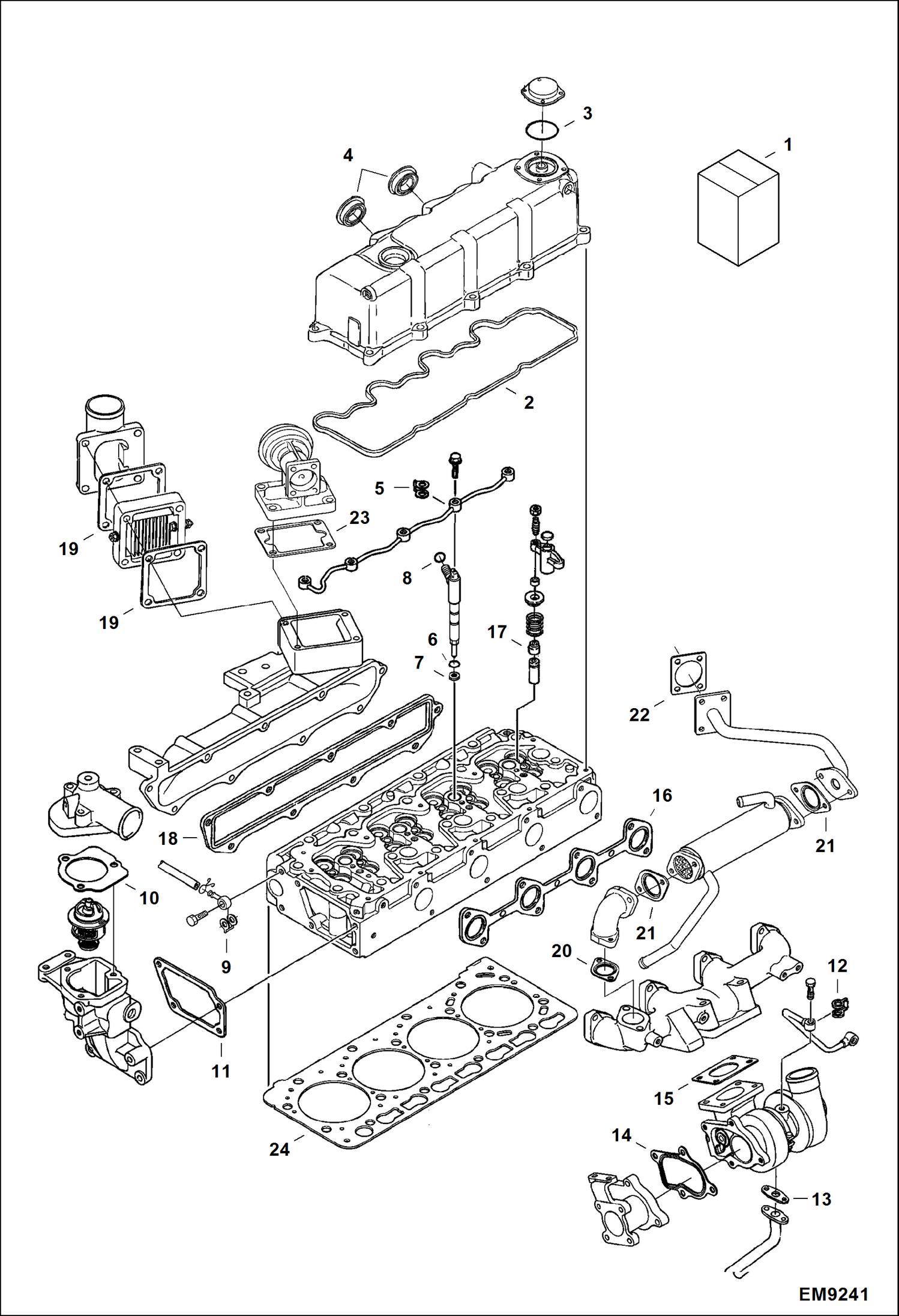

Запчасти Bobcat T2250 UPPER GASKET KIT POWER UNIT

1

6689756

KIT, GASKET ENG UPPER Ref. 2-19 - Also Order Ref. 20-24

2

6680690

GASKET

3

6680691

O-RING

4

6680695

SEAL

5

6685498

GASKET See Illustration FUEL INJECTION SYSTEM/ EM9234

6

6670769

O-RING See Illustration FUEL INJECTION SYSTEM/ EM9234

7

6969824

GASKET, NOZZLE INJ See Illustration FUEL INJECTION SYSTEM/ EM9234

8

6680788

BOLT See Illustration FUEL INJECTION SYSTEM/ EM9234

9

6698528

WASHER, SEALING See Illustration FUEL INJECTION SYSTEM/ EM9234

10

6685955

GASKET See Illustration WATER PUMP & THERMOSTAT/ EM9238

11

6680849

GASKET See Illustration WATER PUMP & THERMOSTAT/ EM9238

12

7000642

WASHER, SEALING COPPER See Illustration TURBOCHARGER/ EM9240 Was 6685962 - B

13

6680570

GASKET See Illustration TURBOCHARGER/ EM9240

14

6691588

GASKET See Illustration TURBOCHARGER/ EM9240

15

7008514

GASKET, TURBO See Illustration TURBOCHARGER/ EM9240 Was 6680893 - A

16

6680891

GASKET See Illustration MANIFOLDS/ EM9239

17

6672436

SEAL See Illustration CYLINDER HEAD/ EM9230

18

6680884

GASKET See Illustration MANIFOLDS/ EM9239

19

6680887

GASKET See Illustration MANIFOLDS/ EM9239

20

6698583

GASKET, EGR FLANGE See Illustration EGR VALVE/ EM9242 not in kit

21

7024407

GASKET, EGR COOLER See Illustration EGR VALVE/ EM9242 not in kit Was 6698582 - B

22

6698534

GASKET, EXHAUST See Illustration EGR VALVE/ EM9242 not in kit

23

6698581

GASKET, EGR VALVE See Illustration EGR VALVE/ EM9242 not in kit

24

GASKET, HEAD CYLINDER not in kit
