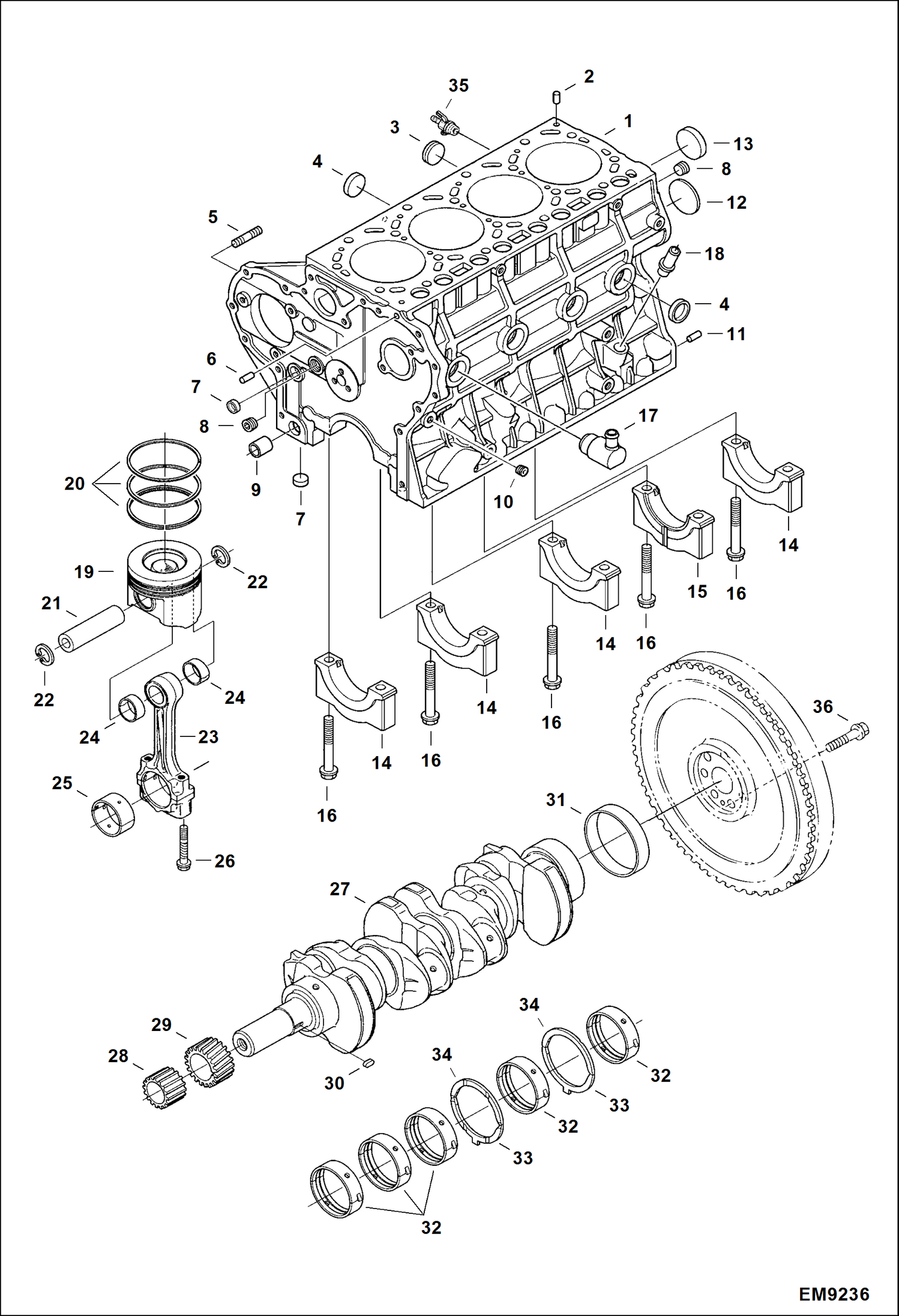

Запчасти Bobcat T2250 PISTON & CRANKSHAFT POWER UNIT

1

6698544

BLOCK, ENG

2

3974037

PIN

3

6672354

PLUG

4

3974389

CAP, SEALING

5

6698578

STUD

6

21JM814

PIN

7

3974056

CAP

8

6680636

PLUG

9

7017198

PIN, STRAIGHT Was 6680644 - A

10

6680667

PLUG

11

6685918

PIN

12

6680640

PLUG

13

3974390

PLUG

14

CAP, BEARING NAP - Order Ref. 1

15

CAP, BEARING NAP - Order Ref. 1

16

6680645

BOLT

17

7017204

TUBE, WATER ELBOW Was 7008574 - A

18

6680649

TUBE

19

6698535

PISTON, ENG std (1J550-2111)

19

6698536

PISTON, ENG OS +0.50 mm (1J550-2111 OS50)

20

7024328

RING, PISTON std Was 6692364 - B

20

7024329

RING, PISTON +0.50 mm Was 6692365 - B

21

6680725

PIN

22

6680726

SNAP RING internal

23

6692366

ROD W/Ref. 24-26

24

6680728

BUSHING

25

6680730

ROD BEARING std/blue/set

25

6680731

BEARING, ROD CONNECTING std/set

25

6680732

ROD BEARING -0.20 mm/green/set

25

6680733

ROD BEARING -0.40 mm/red/set

26

6698599

BOLT Was 6680729 - B

27

6698555

CRANKSHAFT, ENGINE

28

6680737

GEAR

29

6680736

GEAR

30

3974226

KEY

31

6680735

SLEEVE

32

6680738

MAIN BEARING std/set

32

6680739

MAIN BEARING -0.20 mm set

32

6680740

MAIN BEARING -0.40 mm set

33

6680744

THRUST WASHER std

33

6680745

THRUST WASHER +0.20 mm

33

6680746

THRUST WASHER +0.40 mm

34

6680741

THRUST WASHER std

34

6680742

THRUST WASHER +0.20 mm

34

6680743

THRUST WASHER +0.40 mm

35

6698522

VALVE, DRAIN

36

6680747

BOLT, FLYWHEEL
