Запчасти Bobcat T2250 JOYSTICK ELECTRICAL SYSTEM

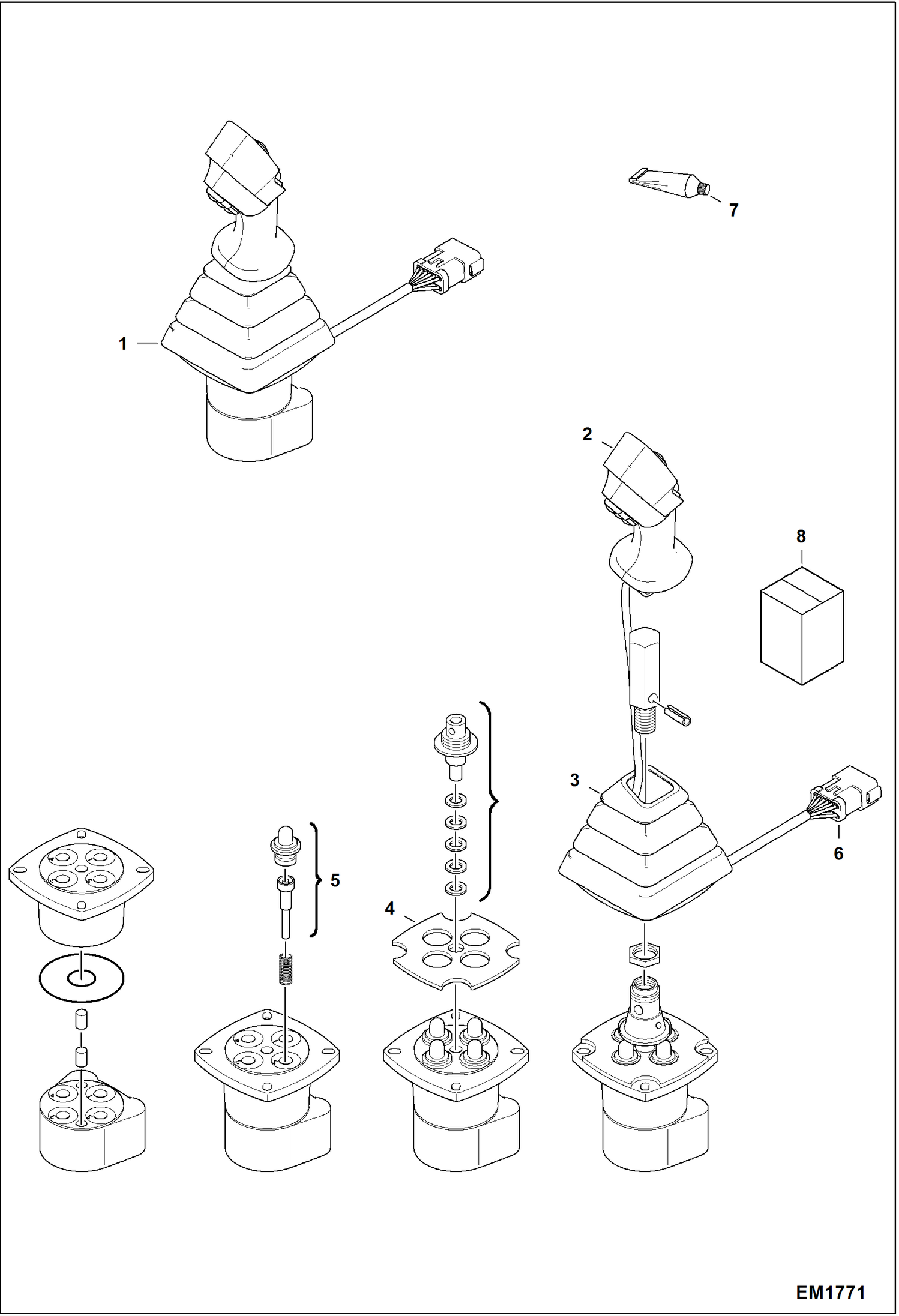

Схема запчастей Bobcat T2250 - JOYSTICK ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6915268

MANIPULATOR Ref. 2-6 Was 6910314 - A

2

6910728

LEVER ASSY

3

6910703

BELLOWS

4

6910702

PLATE

5

75985.2

Set of push rod

6

CONNECTOR NAP - Order Ref. 8

7

6901596

GREASE

8

6910728

LEVER ASSY Ref. 2 & 6 Was 7022059 - A

Выбрано товаров: 8
