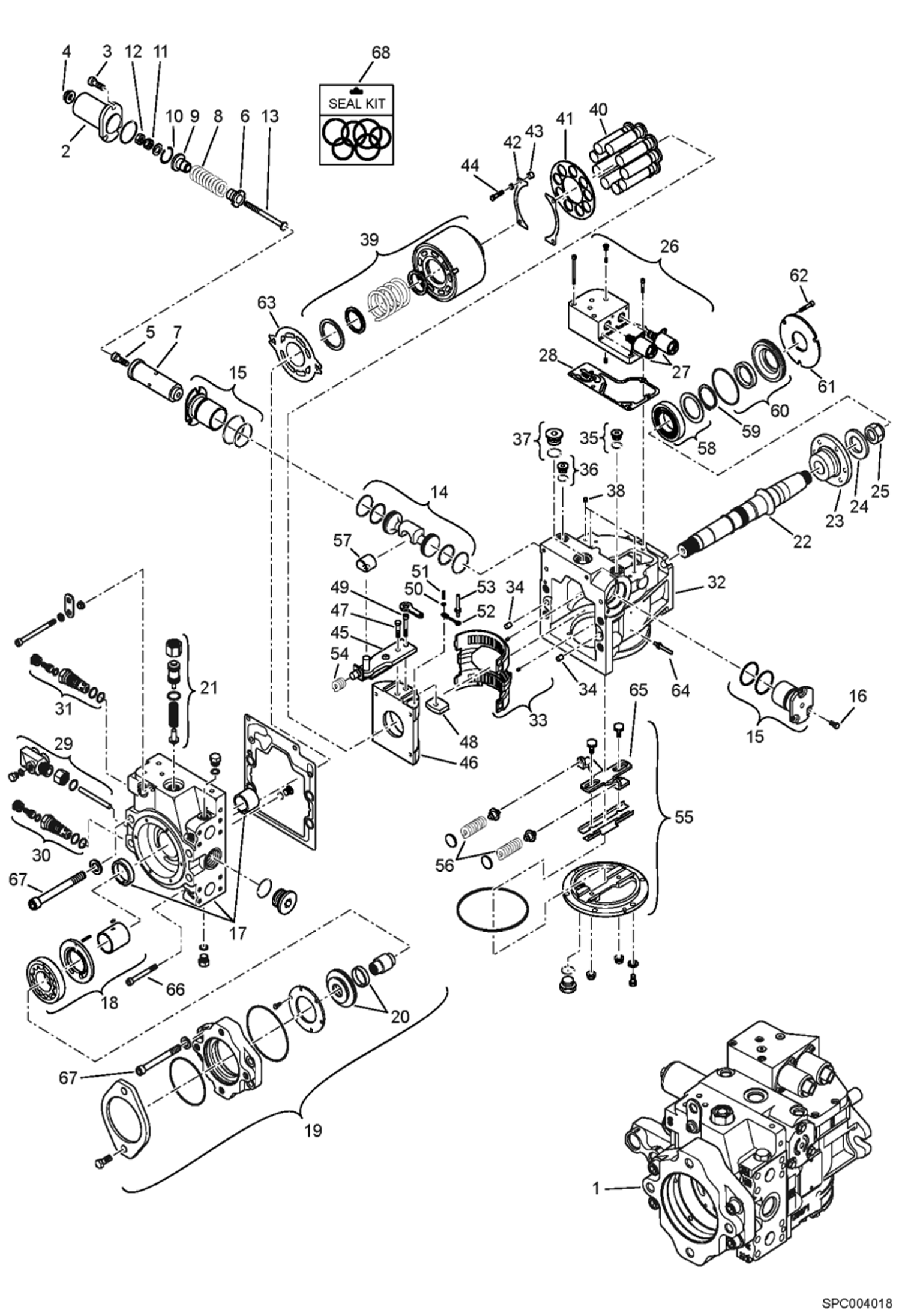

Запчасти Bobcat T2250 HYDROSTATIC PUMP ASSY (S/N AC1911001 - 11999) HYDROSTATIC SYSTEM

1

6921182

HYDRAULIC TRANSMISSION PUMP W/ref. 2-66

2

6921529

CYLINDER SERVO

3

6921530

SCREW

4

6921531

NUT

5

6921532

SCREW

6

6921533

SPRING GUIDE

7

6921534

SLEEVE

8

6921535

COMPRESSION SPRING

9

6921536

SPRING GUIDE

10

6921537

RING RETAINING

11

6921538

NUT

12

6921539

NUT

13

6921540

ADJUSTING SCREW

14

6921541

SERVO PISTON ASSEMBLY

15

6921542

CYLINDER-SERVO

16

7008858

SCREW Was 6921543 - B

17

6921544

END CAP ASSEMBLY

18

6921545

PUMP CHARGE ASSEMBLY

19

6921546

AUX. MONTING KIT

20

6664011

COVER ASSY. Was 6921547 - B

21

81427.7

Valve

22

6921548

SHAFT

23

6921549

FLANGE

24

6921550

WASHER

25

6921551

NUT

26

6921552

CONTROL COVER PLATE

27

97400.6

Valve

28

6662151

GASKET Was 6921553 - B, D

29

6921554

FILTRATION MANIFOLD KIT

30

KIT, MULTIFUNCTION VALVE Was 6921555 - A

31

KIT, MULTIFUNCTION VALVE Was 6921555 - A

32

6921557

HOUSING

33

6921558

BEARING-CRADLE ASSY

34

6518460

PIN Was 6921559 - B

35

6921561

PLUG

36

PLUG NLA Was 6921562 - A

37

6921563

PLUG

38

6921564

SCREEN FILTER

39

6921565

CYLINDER BLOCK ASSY

40

6921566

PISTON ASSY

41

6921567

GUIDE-SLIPPER

42

6921568

BEARING-SLIPPER GUIDE

43

6921569

SPACER

44

6921570

SCREW

45

6921571

SERVO-ARM ASSY

46

6921572

SWASHPLATE

47

6921573

SCREW

48

6921574

GUIDE-SWASHPLATE

49

6921575

SCREW

50

6921576

WASHER

51

6921577

PIN

52

6921578

CAGE LOCATOR

53

6921579

SCREW

54

6921580

SPRING

55

6921581

COVER-SIDE ASSY

56

6921582

SPRING

57

6921583

BLOCK-SLIDER

58

6921584

BEARING

59

6921585

RING RETAINING

60

6921586

CARRIER ASSY SEAL

61

6921587

PALTE-RETAINER

62

6921588

SCREW

63

6921589

VALVE PLATE

64

6921590

SEAL KIT

65

6921560

RIVET

66

7012296

CROSS
