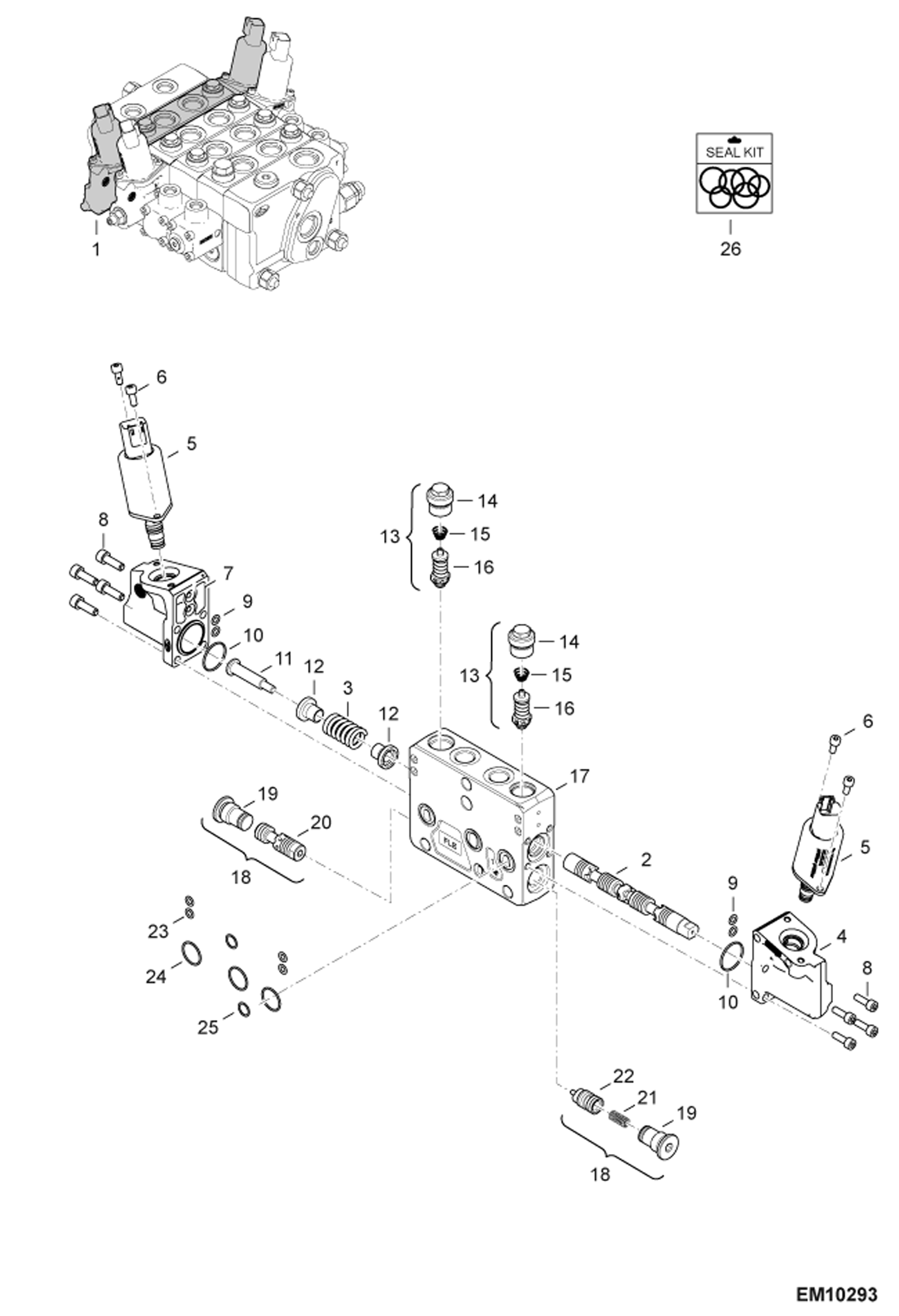

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Auxiliary) S/N AC1915365 & Above HYDRAULIC SYSTEM

1

7031594

SECTION WORKING auxiliary - Ref. 2-25

2

6921044

SPOOL

3

SPRING NLA - Order Ref. 1

4

CYLINDER COMMAND NLA - Order Ref. 1

5

7031597

KIT COIL W/Ref. 6

6

BOLT NLA - Order Ref. 1

7

CYLINDER, COMMAND NLA - Order Ref. 1

8

SCREW NLA - Order Ref. 1

9

O-RING NLA - Order Ref. 26

10

O-RING NLA - Order Ref. 26

11

SCREW, COMMAND NLA - Order Ref. 1

12

BUSHING NLA - Order Ref. 1

13

6685301

VALVE Ref. 14-16

14

VALVE NLA - Order Ref. 13

15

SPRING NLA - Order Ref. 13

16

VALVE NLA - Order Ref. 13

17

7011904

KIT WORKING SECTION W/Ref. 18-25

18

7011909

KIT COMPENSATOR Ref. 19-22

19

PLUG NLA - Order Ref. 18

20

SPOOL NLA - Order Ref. 18

21

SPRING NLA - Order Ref. 18

22

SPOOL NLA - Order Ref. 18

23

O-RING NLA - Order Ref. 26

24

O-RING NLA - Order Ref. 26

25

O-RING NLA - Order Ref. 26

26

7031595

KIT SEAL WORKING SECTION Ref. 9-10 & 23-25
