Запчасти Bobcat T2250 CONTROL VALVE SECTION (Auxiliary) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

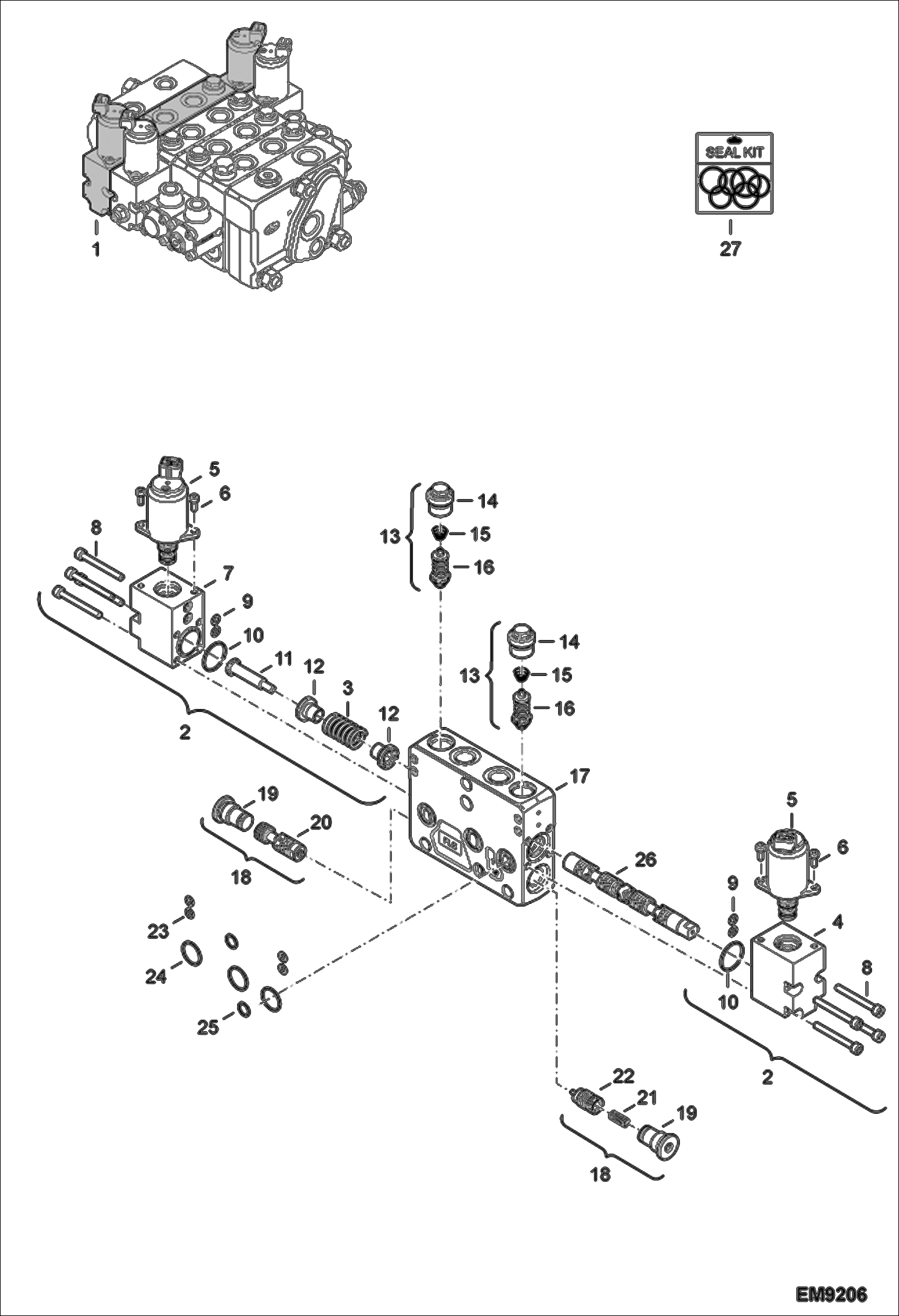

Схема запчастей Bobcat T2250 - CONTROL VALVE SECTION (Auxiliary) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7019158

KIT FULL WORKING SECTION auxiliary - Ref. 2-26

2

6921048

SPOOL COMMAND WITH COIL Ref. 3-12

3

SPRING NLA - Order Ref. 2

4

CYLINDER, COMMAND NLA - Order Ref. 2

5

7023763

KIT SOLENOID W/Ref. 6

6

BOLT NLA - Order Ref. 2

7

CYLINDER, COMMAND NLA - Order Ref. 2

8

SCREW NLA - Order Ref. 2

9

O-RING NLA - Order Ref. 27

10

O-RING NLA - Order Ref. 27

11

SCREW, COMMAND NLA - Order Ref. 2 - A

12

BUSHING NLA - Order Ref. 2

13

6685301

VALVE Ref. 14-16

14

VALVE NLA - Order Ref. 13

15

SPRING NLA - Order Ref. 13

16

VALVE NLA - Order Ref. 13

17

7011904

KIT WORKING SECTION W/Ref. 18-25

18

7011909

KIT COMPENSATOR Ref.19-22

19

PLUG NLA - Order Ref. 18

20

SPOOL NLA - Order Ref. 18

21

SPRING NLA - Order Ref. 18

22

SPOOL NLA - Order Ref. 18

23

O-RING NLA - Order Ref. 27

24

O-RING NLA - Order Ref. 27

25

O-RING NLA - Order Ref. 27

26

6921044

SPOOL

27

6924968

SET OF SEALS (AUXILIARY SECTION) Ref. 9-10 & 23-25

Выбрано товаров: 27
