Запчасти Bobcat T2250 CONTROL VALVE SECTION (Telescopic) S/N AC1915365 & Above HYDRAULIC SYSTEM

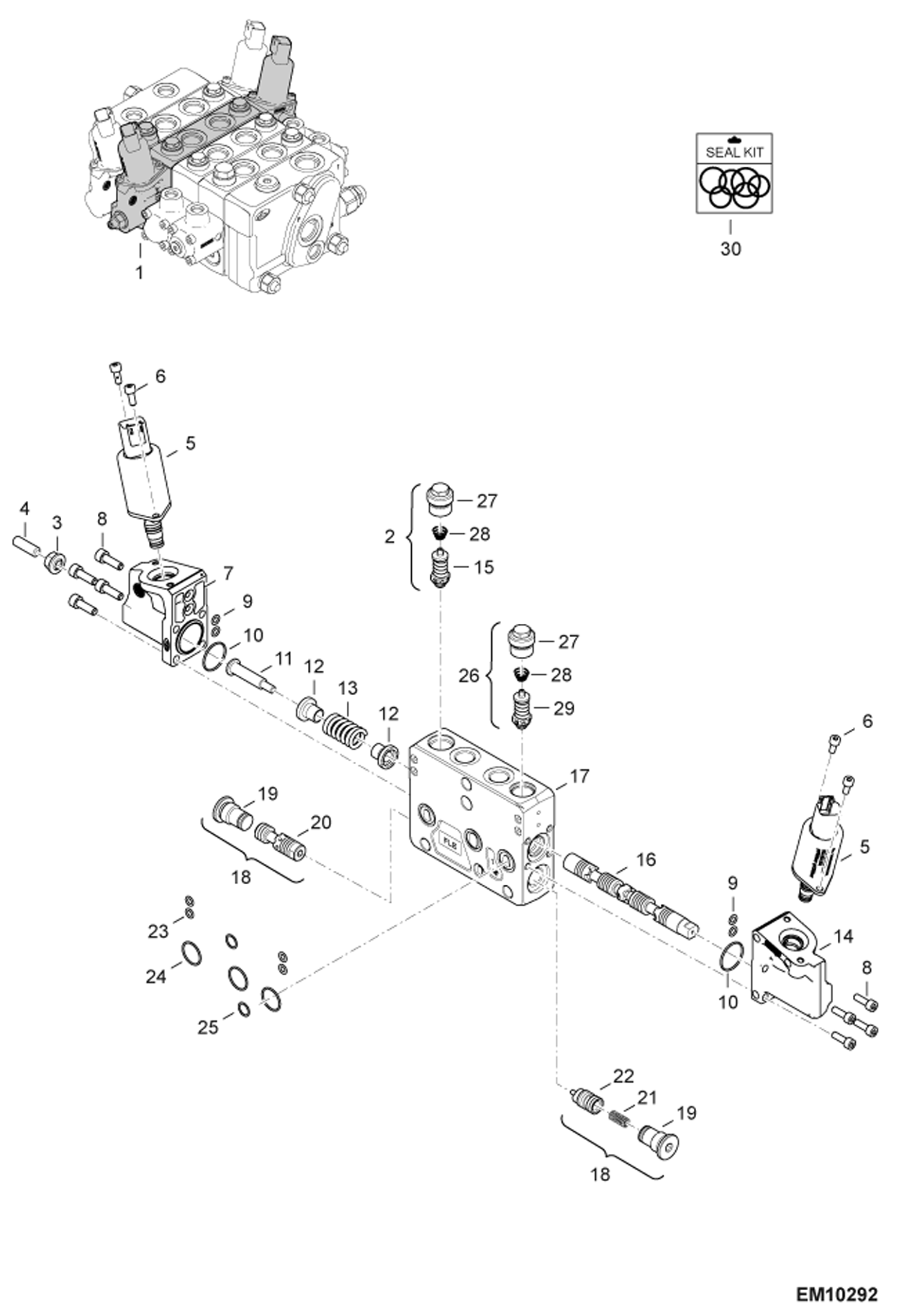

Схема запчастей Bobcat T2250 - CONTROL VALVE SECTION (Telescopic) S/N AC1915365 & Above HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7031592

SECTION WORKING telescope - Ref. 2-29

2

6685300

VALVE Ref. 15 & 27-28

3

NUT NLA - Order Ref. 1

4

SCREW NLA - Order Ref. 1

5

7031597

KIT COIL W/Ref. 6

6

BOLT NLA - Order Ref. 1

7

CYLINDER COMMAND NLA - Order Ref. 1

8

SCREW NLA - Order Ref. 1

9

O-RING NLA - Order Ref. 30

10

O-RING NLA - Order Ref. 30

11

SCREW, COMMAND NLA - Order Ref. 1

12

BUSHING NLA - Order Ref. 1

13

SPRING NLA - Order Ref. 1

14

CYLINDER, COMMAND NLA - Order Ref. 1

15

VALVE NLA - Order Ref. 2

16

7011905

SPOOL

17

7011904

KIT WORKING SECTION W/Ref. 18-25

18

7011909

KIT COMPENSATOR Ref. 19-22

19

PLUG NLA - Order Ref. 18

20

SPOOL NLA - Order Ref. 18

21

SPRING NLA - Order Ref. 18

22

SPOOL NLA - Order Ref. 18

23

O-RING NLA - Order Ref. 30

24

O-RING NLA - Order Ref. 30

25

O-RING NLA - Order Ref. 30

26

6685301

VALVE Ref. 27-29

27

VALVE NLA - Order Ref. 2 or 26

28

SPRING NLA - Order Ref. 2 or 26

29

VALVE NLA - Order Ref. 26

30

7031593

KIT SEAL WORKING SECTION Ref. 9-10 & 23-25

Выбрано товаров: 30
