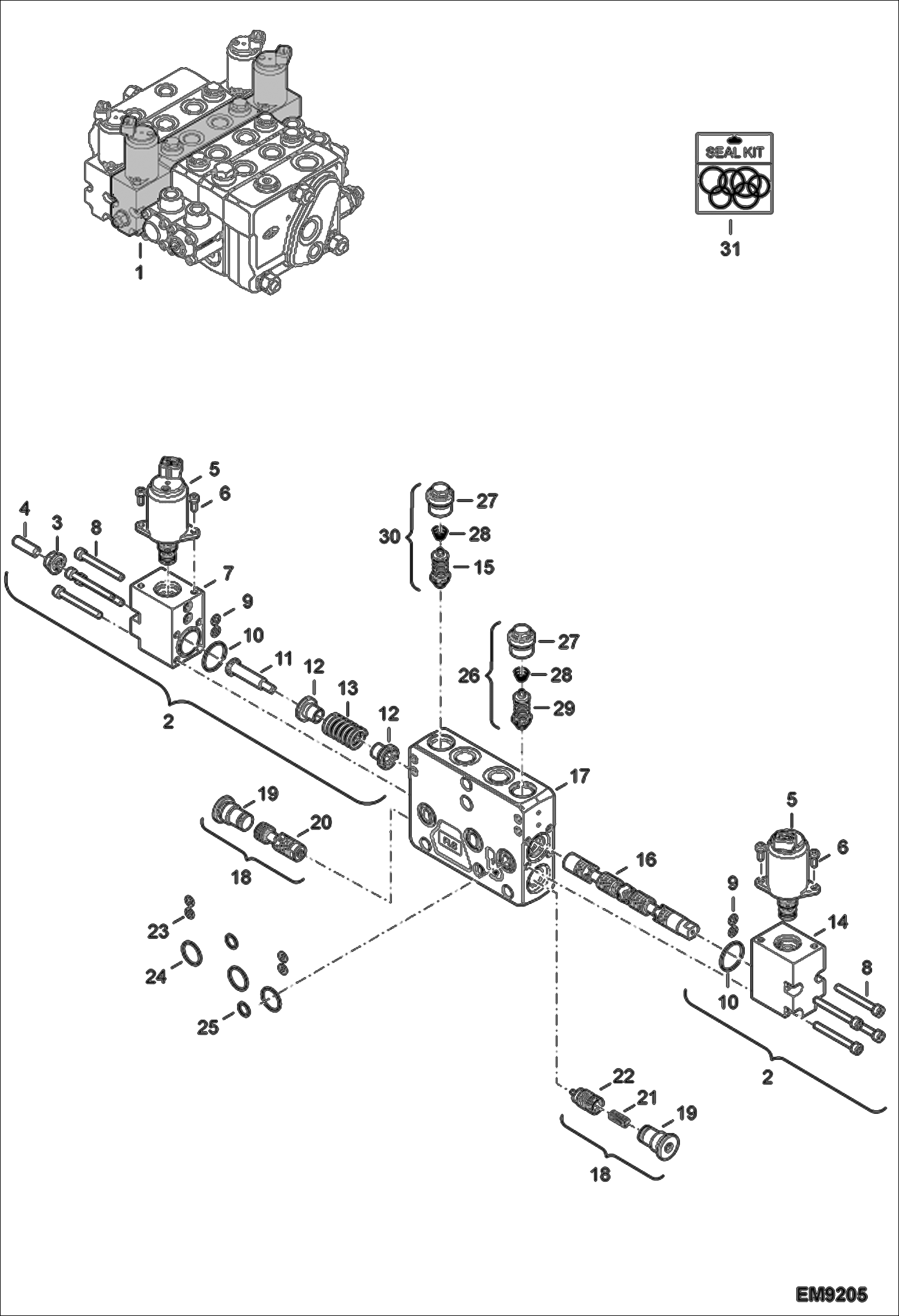

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Telescope) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

1

7019157

KIT FULL WORKING SECTION telescope - Ref. 2-30

2

6921047

SPOOL COMMAND WITH COIL Ref. 3-14

3

NUT NLA - Order Ref. 2

4

SCREW NLA - Order Ref. 2

5

7023763

KIT SOLENOID W/Ref. 6

6

BOLT NLA - Order Ref. 2

7

CYLINDER, COMMAND NLA - Order Ref. 2

8

SCREW NLA - Order Ref. 2

9

O-RING NLA - Order Ref. 31

10

O-RING NLA - Order Ref. 31

11

SCREW, COMMAND NLA - Order Ref. 2

12

BUSHING NLA - Order Ref. 2

13

SPRING NLA - Order Ref. 2

14

CYLINDER, COMMAND NLA - Order Ref. 2

15

VALVE NLA - Order Ref. 30

16

7011905

SPOOL

17

7011904

KIT WORKING SECTION W/Ref. 18-25

18

7011909

KIT COMPENSATOR Ref.19-22

19

PLUG NLA - Order Ref. 18

20

SPOOL NLA - Order Ref. 18

21

SPRING NLA - Order Ref. 18

22

SPOOL NLA - Order Ref. 18

23

O-RING NLA - Order Ref. 31

24

O-RING NLA - Order Ref. 31

25

O-RING NLA - Order Ref. 31

26

6685301

VALVE Ref. 27-29

27

VALVE NLA - Order Ref. 26

28

SPRING NLA - Order Ref. 26

29

VALVE NLA - Order Ref. 26

30

6685300

VALVE Ref. 15 & 27-28

31

6924967

SET OF SEALS (TELESCOPE SECTION) Ref. 9-10 & 23-25
