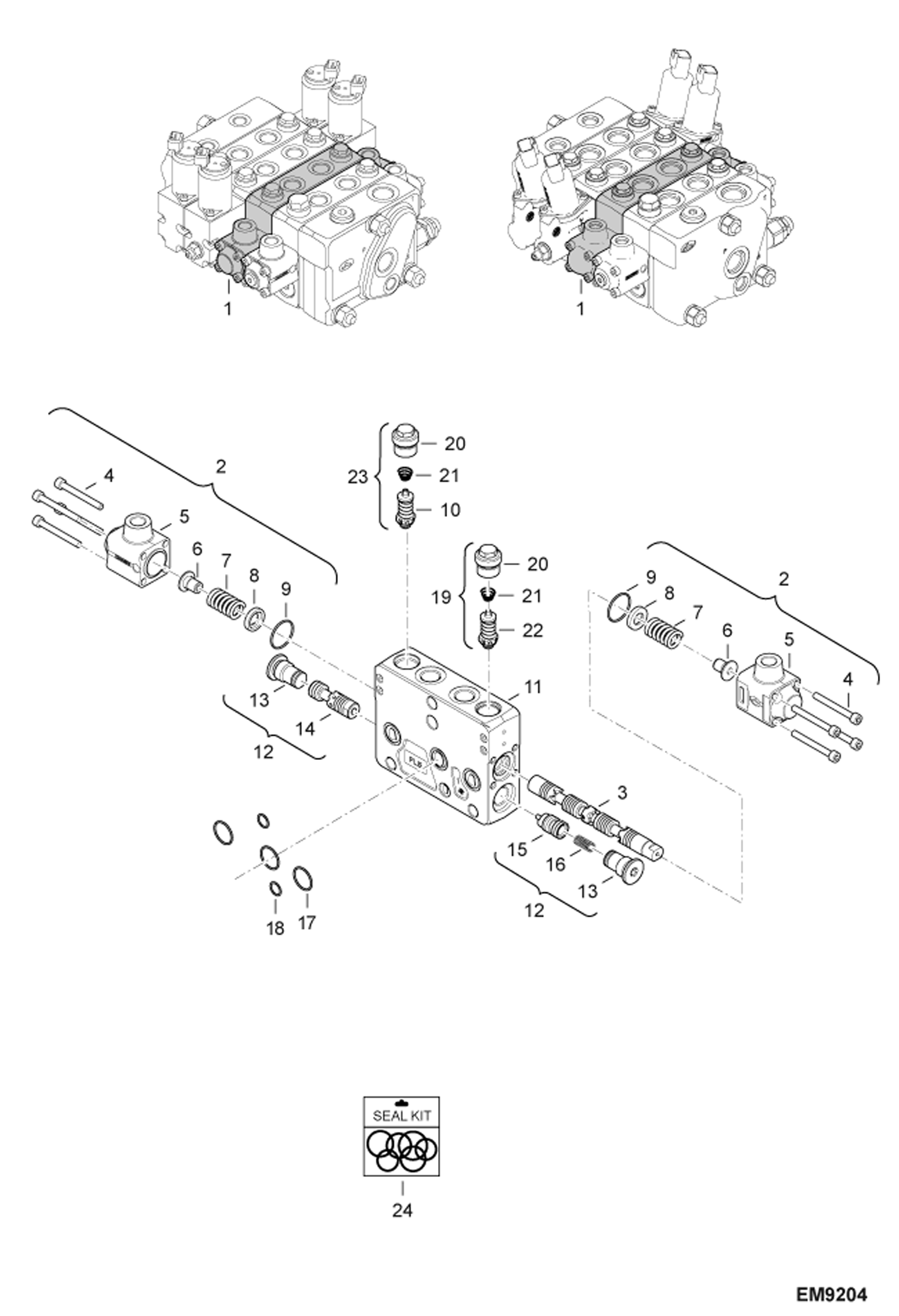

Запчасти Bobcat T2250 CONTROL VALVE SECTION (Tilt) (S/N AC1911252 & Above) HYDRAULIC SYSTEM

1

7019156

KIT FULL WORKING SECTION tilt - Ref 2-24

2

7011911

KIT COMMAND CYLINDER ALONE Ref. 4-10

3

6921042

SPOOL

4

SCREW NLA - Order Ref. 2

5

BODY, CAP NLA - Order Ref. 2

6

BUSHING NLA - Order Ref. 2

7

SPRING NLA - Order Ref. 2

8

BUSHING NLA - Order Ref. 2

9

O-RING NLA - Order Ref. 24

10

BODY, CAP NLA - Order Ref. 23

11

7011907

KIT WORKING SECTION W/Ref. 12-18

12

7011909

KIT COMPENSATOR Ref. 13-16

13

PLUG NLA - Order Ref. 12

14

SPOOL NLA - Order Ref. 12

15

SPOOL NLA - Order Ref. 12

16

SPRING NLA - Order Ref. 12

17

O-RING NLA - Order Ref. 24

18

O-RING NLA - Order Ref. 24

19

6693137

KIT Ref. 20-22

20

VALVE NLA - Order Ref. 19 or 23

21

SPRING NLA - Order Ref. 19 or 23

22

SPOOL NLA - Order Ref. 19

23

6685776

KIT Ref. 10 & 20-21

24

7031591

KIT SEAL KIT WORKING SECTION Ref. 9 & 17-18
